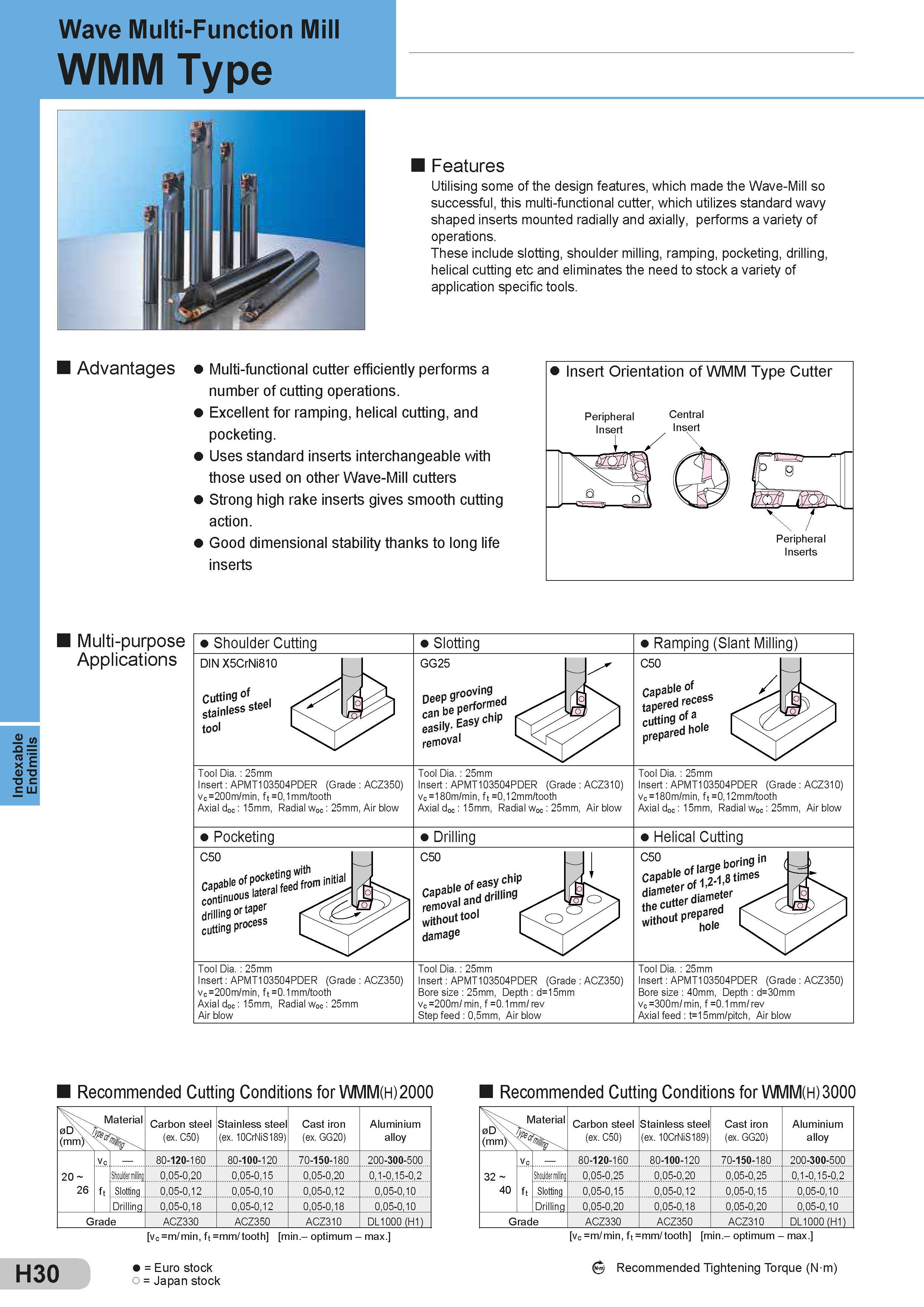

Indexable Endmills Wave Multi-Function Mill WMM Type Features Utilising some of the design features, which made the Wave-Mill so successful, this multi-functional cutter, which utilizes standard wavy shaped inserts mounted radially and axially, performs a variety of operations. These include slotting, shoulder milling, ramping, pocketing, drilling, helical cutting etc and eliminates the need to stock a variety of application specific tools. Advantages Multi-functional cutter efficiently performs a number of cutting operations. Excellent for ramping, helical cutting, and pocketing. Uses standard inserts interchangeable with those used on other Wave-Mill cutters Strong high rake inserts gives smooth cutting action. Good dimensional stability thanks to long life inserts Multi-purpose Applications Shoulder Cutting DIN X5CrNi810 CUtti ess steel stainless si tool Tool Dia. : 25mm Insert : APMT103504PDER (Grade : ACZ350) vc=200m/min, ft =0,1mm/tooth Axial doc : 15mm, Radial Woc : 25mm, Air blow Pocketing C50 Pable aTeKreaiiS ronl al continuous latera drilling cutting or taper process Tool Dia. : 25mm Insert : APMT103504PDER (Grade : ACZ350) vc=200m/min, ft =0.1mm/tooth Axial doc : 15mm, Radial woc : 25mm Air blow Slotting GG25 easily- Easycb'P removal Tool Dia. : 25mm Insert : APMT103504PDER (Grade : ACZ310) vc=180m/min, ft =0,12mm/tooth Axial doc : 15mm, Radial woc : 25mm, Air blow Drilling C50 without too' damage Tool Dia. : 25mm Insert : APMT103504PDER (Grade : ACZ350) Bore size : 25mm, Depth : d=15mm vc =200m/ min, f =0.1mm/ rev Step feed : 0,5mm, Air blow Ramping (Slant Milling) C50 Capable of tapered recess cutting a preP' ared hole Tool Dia. : 25mm Insert : APMT103504PDER (Grade : ACZ310) vc=180m/min, ft =0,12mm/tooth Axial doc : 15mm, Radial woc : 25mm, Air blow Helical Cutting C50 Tool Dia. : 25mm Insert : APMT103504PDER (Grade : ACZ350) Bore size : 40mm, Depth : d=30mm vc =300m/ min, f =0.1mm/ rev Axial feed : t=15mm/pitch, Air blow Recommended Cutting Conditions for WMM(H)2000 Material 0Dw Carbon steel (ex. C50) Stainless steel (ex. 10CrNiS189) Cast iron (ex. GG20) Aluminium alloy vc 80-12U-160 80-1UU-120 70-15U-180 200-0UU-500 20 Shoulder milling 0,05-0,20 0,05-0,15 0,05-0,20 0,1-0,15-0,2 26 ft Slotting 0,05-0,12 0,05-0,10 0,05-0,12 0,05-0,10 Drilling 0,05-0,18 0,05-0,12 0,05-0,18 0,05-0,10 Grade ACZ330 ACZ350 ACZ310 DL1000 (H1) Recommended Cutting Conditions for WMM(H)3000 0D \ (mm)\ Material , Carbon steel (ex. C50) Stainless steel (ex. 10CrNiS189) Cast iron (ex. GG20) Aluminium alloy vc 80-12U-160 80-1UU-120 70-15U-180 200-0UU-500 CM CO Shoulder milling 0,05-0,25 0,05-0,20 0,05-0,25 0,1-0,15-0,2 40 ft Slotting 0,05-0,15 0,05-0,12 0,05-0,15 0,05-0,10 Drilling 0,05-0,20 0,05-0,18 0,05-0,20 0,05-0,10 Grade ACZ330 ACZ350 ACZ310 DL1000(H1) vc =m/min, ft =mm/tooth min.- optimum - max. vc =m/min, ft =mm/tooth min.- optimum - max. non = Euro stock Recommended Tightening Torque (Nm) nOU o = Japan stock
