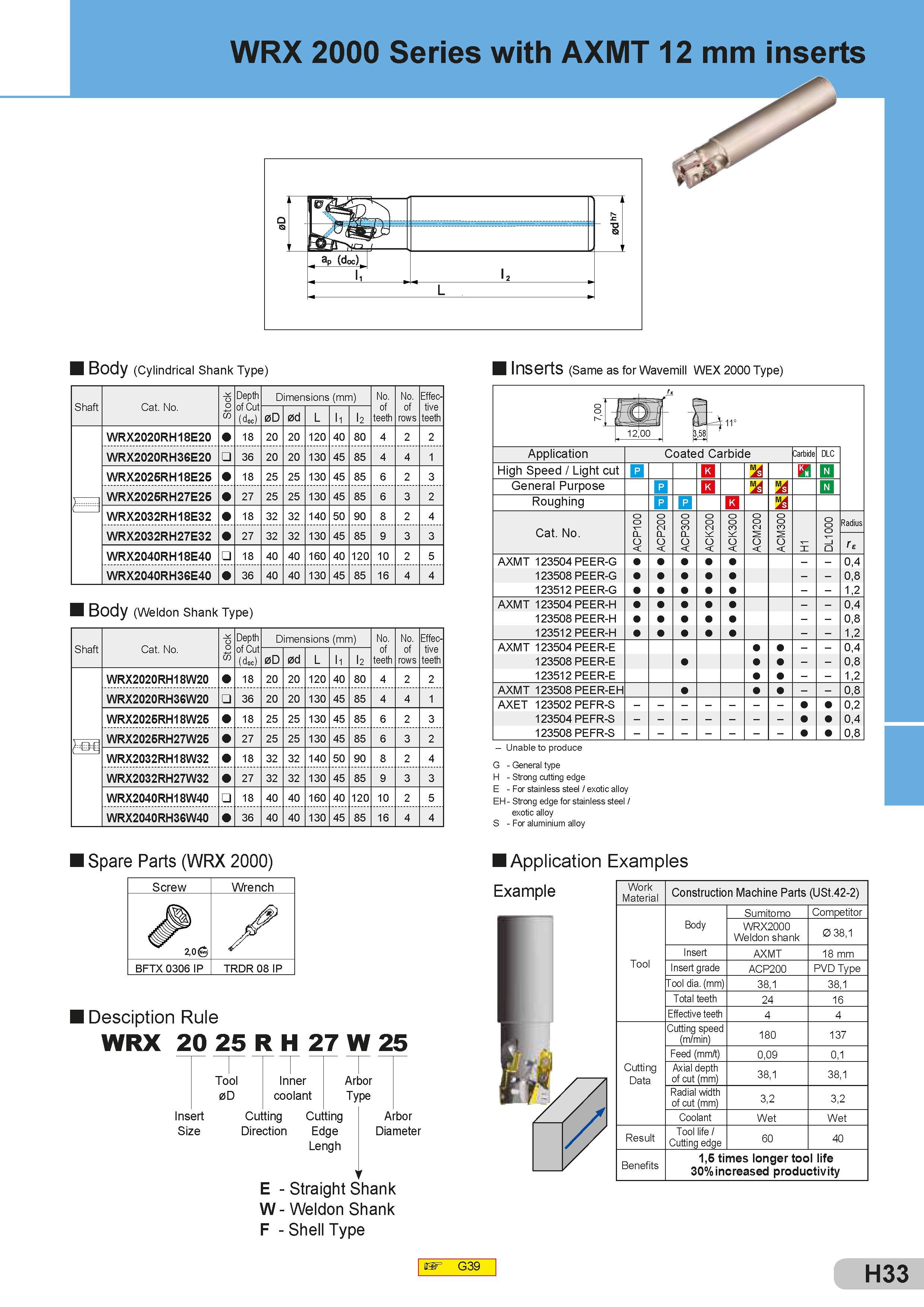

WRX 2000 Series with AXMT 12 mm inserts Body (Cylindrical Shank Type) Inserts (Same as for Wavemill WEX 2000 Type) Shaft Cat. No. o ot OT Depth of Cut (doc) Dimensions (mm) Размеры указаны в мм No. of teeth No. of rows Effec- tive teeth 0D 0d L l1 l2 1 WRX2020RH18E20 18 20 20 120 40 80 4 2 2 WRX2020RH36E20 36 20 20 130 45 85 4 4 1 WRX2025RH18E25 18 25 25 130 45 85 6 2 3 WRX2025RH27E25 27 25 25 130 45 85 6 3 2 c I WRX2032RH18E32 18 32 32 140 50 90 8 2 4 WRX2032RH27E32 27 32 32 130 45 85 9 3 3 WRX2040RH18E40 18 40 40 160 40 120 10 2 5 WRX2040RH36E40 36 40 40 130 45 85 16 4 4 Body (Weldon Shank Type) Shaft Cat. No. o ot 55 Depth of Cut (doc) Dimensions (mm) Размеры указаны в мм No. of teeth No. of rows Effec- tive teeth 0D 0d L l1 l2 WRX2020RH18W20 18 20 20 120 40 80 4 2 2 WRX2020RH36W20 36 20 20 130 45 85 4 4 1 WRX2025RH18W25 18 25 25 130 45 85 6 2 3 WRX2025RH27W25 27 25 25 130 45 85 6 3 2 WRX2032RH18W32 18 32 32 140 50 90 8 2 4 WRX2032RH27W32 27 32 32 130 45 85 9 3 3 WRX2040RH18W40 18 40 40 160 40 120 10 2 5 WRX2040RH36W40 36 40 40 130 45 85 16 4 4 12,00 - Unable to produce G - General type H - Strong cutting edge E - For stainless steel / exotic alloy EH - Strong edge for stainless steel / exotic alloy S - For aluminium alloy Application Coated Carbide Carbide DLC High Speed / Light cut IP I'l MS El n General Purpose m I'l MS MS1 n Roughing ifj IP II MsJ Cat. No. ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 I DL1000 Radius re AXMT 123504 PEER-G - - 0,4 123508 PEER-G - - 0,8 123512 PEER-G - - 1,2 AXMT 123504 PEER-H - - 0,4 123508 PEER-H - - 0,8 123512 PEER-H - - 1,2 AXMT 123504 PEER-E - - 0,4 123508 PEER-E - - 0,8 123512 PEER-E - - 1,2 AXMT 123508 PEER-EH - - 0,8 AXET 123502 PEFR-S - - - - - - - 0,2 123504 PEFR-S - - - - - - - 0,4 123508 PEFR-S - - - - - - - 0,8 I Spare Parts Запасные части Sumitomo и комплектующие (WRX 2000) Screw Wrench 2,0 X BFTX 0306 IP TRDR 08 IP Desciption Rule WRX 20 25 R H 27 W 25 Tool Inner Arbor 0D coolant Type Insert Cutting Cutting Size Direction Edge Lengh Arbor Diameter E - Straight Shank W - Weldon Shank F - Shell Type Application Examples Example Work Material Construction Machine Parts (USt.42-2) Tool Body Sumitomo Competitor WRX2000 Weldon shank 0 38,1 Insert AXMT 18 mm Insert grade ACP200 PVD Type Tool dia. (mm) 38,1 38,1 Total teeth 24 16 Effective teeth 4 4 Cutting Data Cutting speed (m/min) 180 137 Feed (mm/t) 0,09 0,1 Axial depth of cut (mm) 38,1 38,1 Radial width of cut (mm) 3,2 3,2 Coolant Wet Wet Result Tool life / Cutting edge 60 40 Benefits 1,5 times longer tool life 30%increased productivity 11 G39 H33
