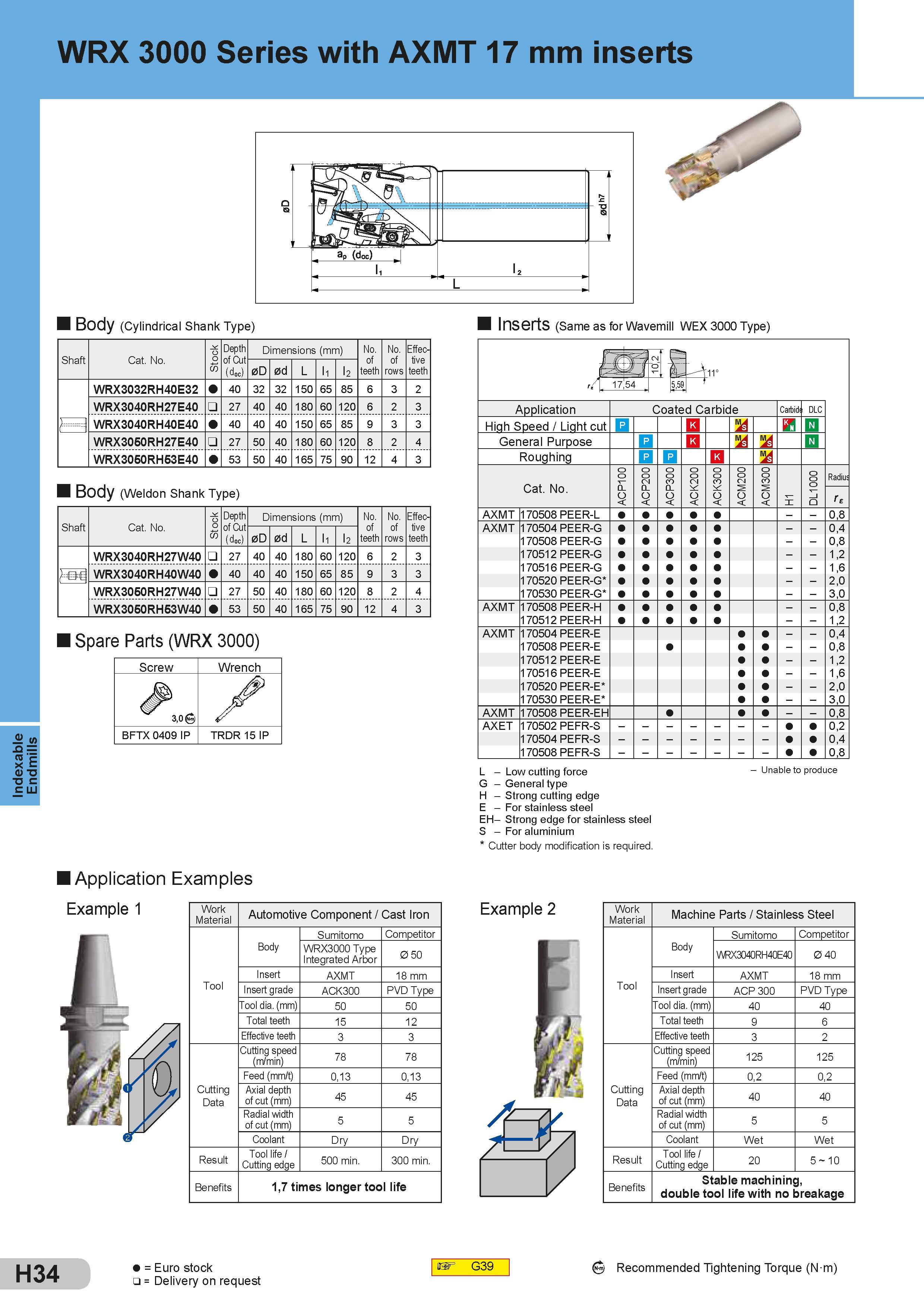

Indexable Endmills WRX 3000 Series with AXMT 17 mm inserts Body (Cylindrical Shank Type) Shaft Cat. No. o ot CO Depth of Cut (doc) Dimensions (mm) Размеры указаны в мм No. of teeth No. of rows Effec- tive teeth 0D 0d L l1 l2 WRX3032RH40E32 40 32 32 150 65 85 6 3 2 WRX3040RH27E40 27 40 40 180 60 120 6 2 3 WRX3040RH40E40 40 40 40 150 65 85 9 3 3 WRX3050RH27E40 27 50 40 180 60 120 8 2 4 WRX3050RH53E40 53 50 40 165 75 90 12 4 3 Body (Weldon Shank Type) Shaft Cat. No. o ot rn Depth of Cut (doc) Dimensions (mm) Размеры указаны в мм No. of teeth No. of rows Effec- tive teeth 0D 0d L l1 l2 MM WRX3040RH27W40 27 40 40 180 60 120 6 2 3 WRX3040RH40W40 40 40 40 150 65 85 9 3 3 WRX3050RH27W40 27 50 40 180 60 120 8 2 4 WRX3050RH53W40 53 50 40 165 75 90 12 4 3 Spare Parts Запасные части Sumitomo и комплектующие (WRX 3000) Screw Wrench 3,0 (n / BFTX 0409 IP TRDR 15 IP Inserts (Same as for Wavemill WEX 3000 Type) CN O 17 54 Application High Speed / Light cut General Purpose Roughing Cat. No. AXMT 170508 PEER-L AXMT 170504 170508 170512 170516 170520 170530 AXMT 170508 170512 AXMT AXMT AXET PEER-G PEER-G PEER-G PEER-G PEER-G PEER-G PEER-H PEER-H 170504 170508 170512 170516 170520 170530 PEER-E PEER-E PEER-E PEER-E PEER-E PEER-E 170508 PEER-EH 170502 170504 170508 PEFR-S PEFR-S PEFR-S Coated Carbide 0 II 0 a a 0,4 0,8 1,2 1,6 2,0 3,0 0,i 1,2 0,4 0,i 1,2 1,6 2,0 3,0 0,2 0,4 0,i 11 Caibidf DLC L - Low cutting force - UnaWe to produce G - General type H - Strong cutting edge E - For stainless steel EH- Strong edge for stainless steel S - For aluminium Cutter body modification is required. Application Examples Example 1 Work Material Automotive Component / Cast Iron Tool Body Sumitomo Competitor WRX3000 Type Integrated Arbor 0 50 Insert AXMT 18 mm Insert grade ACK300 PVD Type Tool dia. (mm) 50 50 Total teeth 15 12 Effective teeth 3 3 Cutting Data Cutting speed (m/min) 78 78 Feed (mm/t) 0,13 0,13 Axial depth of cut (mm) 45 45 Radial width of cut (mm) 5 5 Coolant Dry Dry Result Tool life / Cutting edge 500 min. 300 min. Benefits 1,7 times longer tool life Example 2 Work Material Machine Parts / Stainless Steel Tool Body Sumitomo Competitor WRX3040RH40E40 0 40 Insert AXMT 18 mm Insert grade ACP 300 PVD Type Tool dia. (mm) 40 40 Total teeth 9 6 Effective teeth 3 2 Cutting Data Cutting speed (m/min) 125 125 Feed (mm/t) 0,2 0,2 Axial depth of cut (mm) 40 40 Radial width of cut (mm) 5 5 Coolant Wet Wet Result Tool life / Cutting edge 20 5 10 Benefits Stable machining, double tool life with no breakage H34 = Euro stock = Delivery on request G39 Recommended Tightening Torque (N m)
