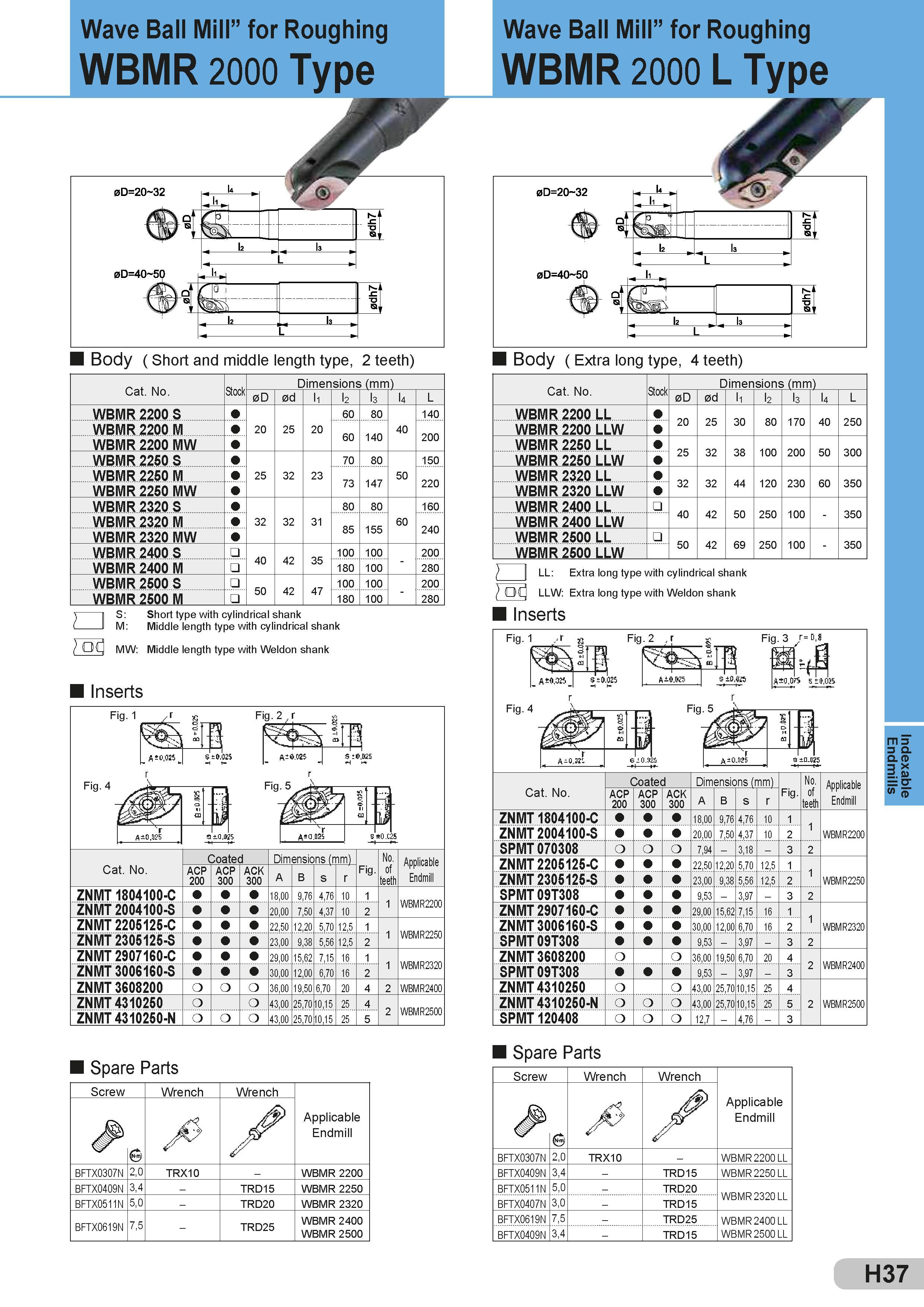

Wave Ball Mill” for Roughing Wave Ball Mill” for Roughing WBMR 2000 Type WBMR 2000 L Type Body ( Short and middle length type, 2 teeth) Body ( Extra long type, 4 teeth) S: M: Short type with cylindrical shank Middle length type with cylindrical shank MW: Middle length type with Weldon shank Inserts Fig. 1 Fig. 4 Fig. 2 t Cat. No. Stock Dimensions (mm) Размеры указаны в мм 0D 0d li l2 l3 l4 L WBMR 2200 S 60 80 140 WBMR 2200 M 20 25 20 60 140 40 200 WBMR 2200 MW WBMR 2250 S 70 80 150 WBMR 2250 M 25 32 23 73 147 50 220 WBMR 2250 MW WBMR 2320 S 80 80 160 WBMR 2320 M 32 32 31 85 155 60 240 WBMR 2320 MW WBMR 2400 S 40 42 35 100 100 200 WBMR 2400 M 180 100 280 WBMR 2500 S 50 42 47 100 100 200 WBMR 2500 M 180 100 280 Cat. No. Coated Dimensions (mm) Размеры указаны в мм Fig. No. of teeth Applicable Endmill ACP 200 ACP 300 ACK 300 A B s r ZNMT 1804100-C 18,00 9,76 4,76 10 1 1 WBMR2200 ZNMT 2004100-S 20,00 7,50 4,37 10 2 ZNMT 2205125-C 22,50 12,20 5,70 12,5 1 1 WBMR2250 ZNMT 2305125-S 23,00 9,38 5,56 12,5 2 ZNMT 2907160-C 29,00 15,62 7,15 16 1 1 WBMR2320 ZNMT 3006160-S 30,00 12,00 6,70 16 2 ZNMT 3608200 O o O 36,00 19,50 6,70 20 4 2 WBMR2400 ZNMT 4310250 43,00 25,70 10,15 25 4 2 WBMR2500 ZNMT 4310250-N o 43,00 25,70 10,15 25 5 Cat. No. Stock Dimensions (mm) Размеры указаны в мм 0D 0d l1 l2 l3 l4 L WBMR 2200 LL 20 25 30 80 170 40 250 WBMR 2200 LLW WBMR 2250 LL 25 32 38 100 200 50 300 WBMR 2250 LLW WBMR 2320 LL 32 32 44 120 230 60 350 WBMR 2320 LLW WBMR 2400 LL 40 42 50 250 100 - 350 WBMR 2400 LLW WBMR 2500 LL 50 42 69 250 100 - 350 WBMR 2500 LLW ) LL: Extra long type with cylindrical shank ) OCj LLW: Extra long type with Weldon shank Inserts Fig. 1 ,-r s Fig. 4 Fig. 2 ,r Fig. 3 r=D,S iQ.Oft 5 i 0.025 Cat. No. ACP 200 ACP 300 ACK 300 A B s r Fig. of teeth Endmill ZNMT 1804100-C 18,00 9,76 4,76 10 1 1 WBMR2200 ZNMT 2004100-S 20,00 7,50 4,37 10 2 SPMT 070308 o 7,94 3,18 - 3 2 ZNMT 2205125-C 22,50 12,20 5,70 12,5 1 1 WBMR2250 ZNMT 2305125-S 23,00 9,38 5,56 12,5 2 SPMT 09T308 9,53 3,97 - 3 2 ZNMT 2907160-C 29,00 15,62 7,15 16 1 1 WBMR2320 ZNMT 3006160-S 30,00 12,00 6,70 16 2 SPMT 09T308 9,53 3,97 - 3 2 ZNMT 3608200 36,00 19,50 6,70 20 4 2 WBMR2400 SPMT 09T308 9,53 3,97 - 3 ZNMT 4310250 43,00 25,70 10,15 25 4 2 WBMR2500 ZNMT 4310250-N o 43,00 25,70 10,15 25 5 SPMT 120408 o 12,7 - 4,76 - 3 Spare Parts Запасные части Sumitomo и комплектующие Screw Wrench Wrench /> X Applicable Endmill BFTX0307N 2,0 TRX10 - WBMR 2200 BFTX0409N 3,4 - TRD15 WBMR 2250 BFTX0511N 5,0 - TRD20 WBMR 2320 BFTX0619N 7,5 - TRD25 WBMR 2400 WBMR 2500 Spare Parts Запасные части Sumitomo и комплектующие Screw Wrench Wrench BFTX0307N 2,0 TRX10 - BFTX0409N 3,4 - TRD15 BFTX0511N 5,0 - TRD20 BFTX0407N 3,0 - TRD15 BFTX0619N 7,5 - TRD25 BFTX0409N 3,4 - TRD15 Applicable Endmill WBMR 2200 LL WBMR 2250 LL WBMR 2320 LL WBMR 2400 LL WBMR 2500 LL H37 Indexable Endmills
