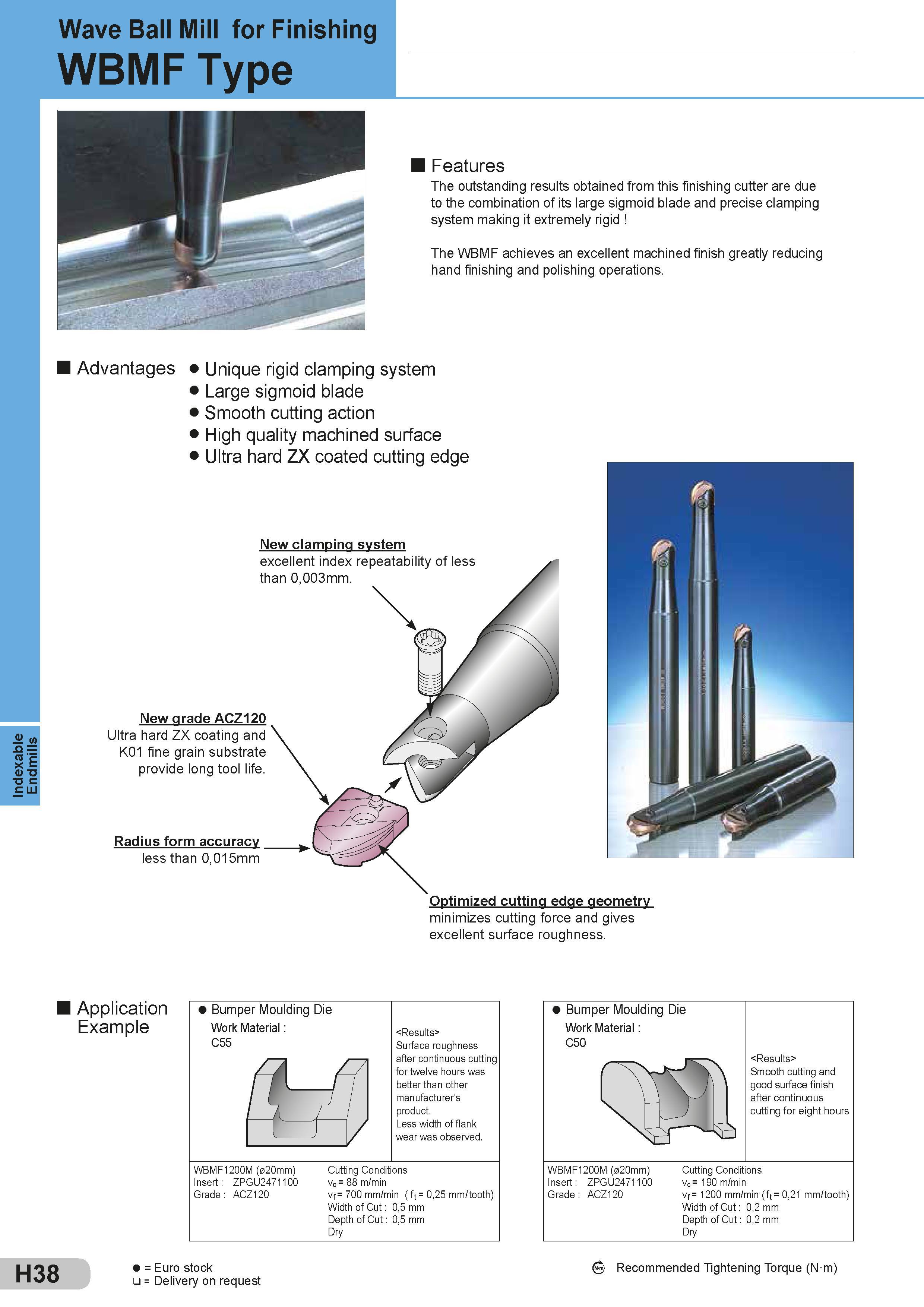

Indexable Endmills Wave Ball Mill for Finishing WBMF Type Features The outstanding results obtained from this finishing cutter are due to the combination of its large sigmoid blade and precise clamping system making it extremely rigid The WBMF achieves an excellent machined finish greatly reducing hand finishing and polishing operations. Advantages Unique rigid clamping system Large sigmoid blade Smooth cutting action High quality machined surface Ultra hard ZX coated cutting edge New clamping system excellent index repeatability of less than 0,003mm. New grade ACZ120 Ultra hard ZX coating and K01 fine grain substrate provide long tool life. Radius form accuracy less than 0,015mm Optimized cutting edge geometry minimizes cutting force and gives excellent surface roughness. Application Example Bumper Moulding Die Work Material : C55 / Surface roughness after continuous cutting for twelve hours was better than other manufacturer's product. Less width of flank wear was obsei ed. WBMF1200M (020mm) Cutting Conditions Insert : ZPGU2471100 vc = 88 m/min Grade : ACZ120 vf = 700 mm/min ( ft = 0,25 mm/tooth) Width of Cut : 0,5 mm Depth of Cut : 0,5 mm Dry Bumper Moulding Die Work Material : C50 \ r Smooth cutting and good surface finish after continuous cutting for eight hours WBMF1200M (020mm) Insert : ZPGU2471100 Grade : ACZ120 Cutting Conditions vc = 190 m/min vf = 1200 mm/min ( ft = 0,21 mm/tooth) Width of Cut : 0,2 mm Depth of Cut : 0,2 mm Dry H38 = Euro stock = Delivery on request Recommended Tightening Torque (N m)
