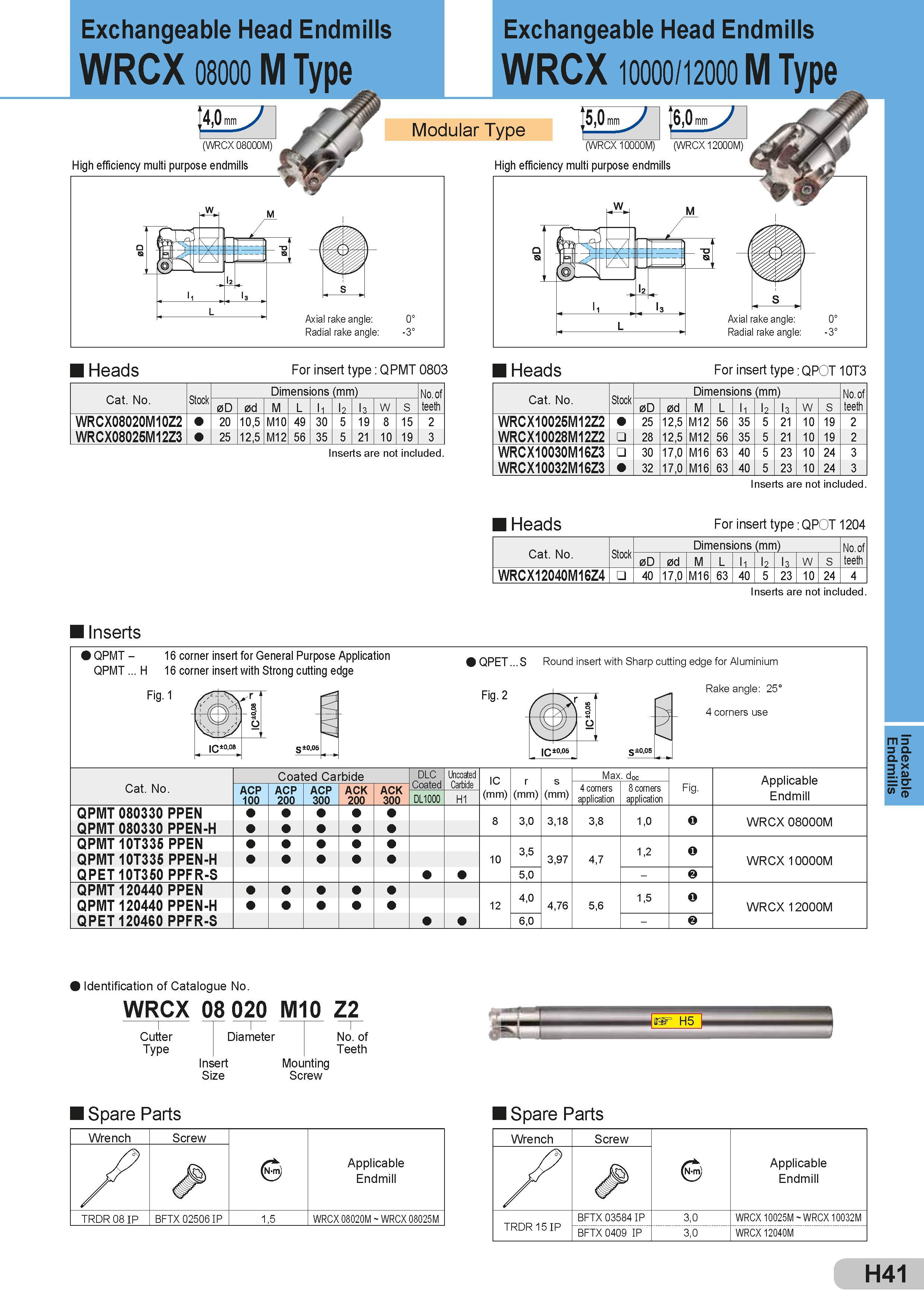

Exchangeable Head Endmills WRCX 08000 M Type (WRCX 08000M) High efficiency multi purpose endmills Exchangeable Head Endmills WRCX 10000/12000 M Type Modular Type (WRCX 10000M) (WRCX 12000M) High efficiency multi purpose endmills Radial rake angle: 0° -3° Axial rake angle: Radial rake angle: Heads For insert type: QPMT 0803 Heads For insert type: QPOT 10T3 Cat. No. Stock Dimensions (mm) Размеры указаны в мм No.of 0D 0d M L l1 l2 13 W S teeth WRCX08020M10Z2 20 10,5 M10 49 30 5 19 8 15 2 WRCX08025M12Z3 25 12,5 M12 56 35 5 21 10 19 3 Inserts are not included. Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of teeth 0D 0d M L l1 b l3 W S WRCX10025M12Z2 25 12,5 M12 56 315 5 231 10 19 2 WRCX10028M12Z2 28 12,5 M12 56 35 5 21 10 19 2 WRCX10030M16Z3 30 17,0 M16 63 40 5 23 10 24 3 WRCX10032M16Z3 32 17,0 M16 63 40 5 23 10 24 3 Inserts are not included. Heads For insert type: QPOT 1204 Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of teeth 0D 0d M L l1 b 13 W S WRCX12040M16Z4 40 17,0 M16 63 40 5 23 10 24 4 Inserts are not included. Inserts QPMT - 16 corner insert for General Purpose Application QPMT ... H 16 corner insert with Strong cutting edge Fig. 1 if r \ s H o 4 iJ, IC10'08 ACP 100 -> 5 ±0,05 9 QPET...S Round insert with Sharp cutting edge for Aluminium Rake angle: 25° Fig. 2 1 1 o ’ 10 0,01 S±0,05 4 corners use Cat. No. Coated Carbide ACP 200 ACP ACK ACK 300 200 300 DLC Coated DL1000 Uncoated Carbide H1 IC (mm) r (mm) s (mm) Max. dot 4 corners 8 corners application application Fig. Applicable Endmill QPMT QPMT 080330 080330 PPEN PPEN-H 3,0 3,18 3,8 1,0 o WRCX 08000M QPMT QPMT QPET 10T335 10T335 10T350 PPEN PPEN-H PPFR-S 10 3, 5 "50 3,97 4,7 1,2 o v WRCX 10000M QPMT QPMT QPET 120440 120440 120460 PPEN PPEN-H PPFR-S 12 4, 0 60 4,76 5,6 1,5 o v WRCX 12000M 8 i Identification of Catalogue No. WRCX 08 020 M1 Cutter Type Diameter 0 Z2 No. of Teeth Количество режущих зубьев Insert Size Mounting Screw I Spare Parts Запасные части Sumitomo и комплектующие = Spare Parts Запасные части Sumitomo и комплектующие Wrench Screw Applicable Endmill X & TRDR 08 IP BFTX 02506 IP 1,5 WRCX 08020M WRCX 08025M Wrench Screw Applicable Endmill X & TRDR 15 IP BFTX 03584 IP 3,0 WRCX 10025M WRCX 10032M BFTX 0409 IP 3,0 WRCX 12040M H41 Indexable Endmills
