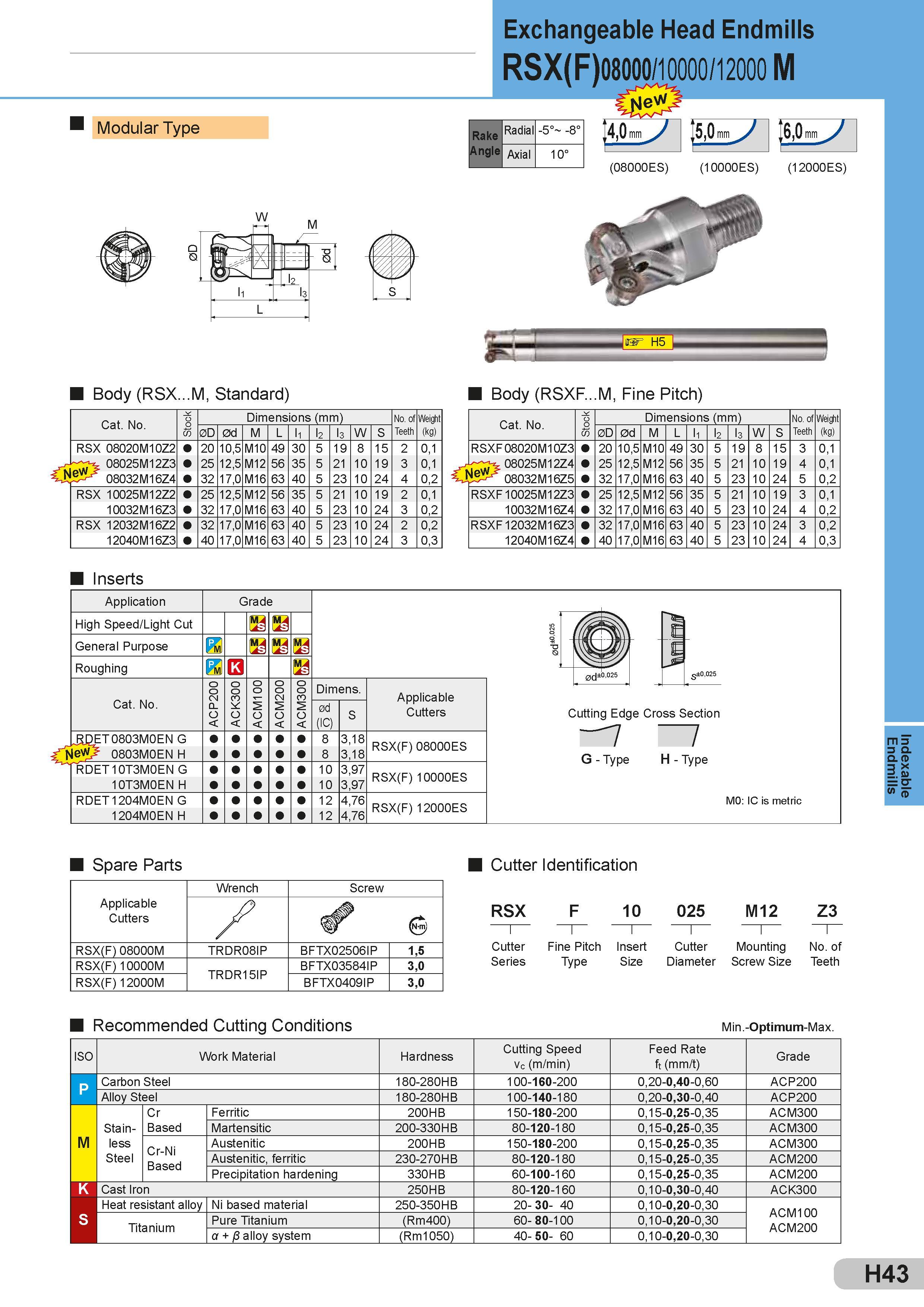

Modular Type (n-> Exchangeable Head Endmills RSX(F)08000/10000/12000 M Rake Angle Radial CO i LO Axial 10° J4,0 mm J5,0 mm 16,0 m (08000ES) (10000ES) (12000ES) = Body (RSX...M, Standard) Body (RSXF...M, Fine Pitch) S Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of Weight 0D 0d M L l1 I2 I3 W S Teeth (kg) RSX 08020M10Z2 20 10,5 M10 49 30 5 19 8 15 2 0,1 08025M12Z3 e 08032M16Z4 25 12,5 M12 56 35 5 21 10 19 3 0,1 32 17,0 M16 63 40 5 23 10 24 4 0,2 RSX 10025M12Z2 25 12,5 M12 56 35 5 21 10 19 2 0,1 10032M16Z3 32 17,0 M16 63 40 5 23 10 24 3 0,2 RSX 12032M16Z2 32 17,0 M16 63 40 5 23 10 24 2 0,2 12040M16Z3 40 17,0 M16 63 40 5 23 10 24 3 0,3 Cat. No. Stock Dimensions (mm) Размеры указаны в мм No. of Weight 0D 0d M L I1 I2 I3 W S Teeth (kg) RSXF08020M10Z3 20 10,5 M10 49 30 5 19 8 15 3 0,1 08025M12Z4 e 08032M16Z5 25 12,5 M12 56 35 5 21 10 19 4 0,1 32 17,0 M16 63 40 5 23 10 24 5 0,2 RSXF10025M12Z3 25 12,5 M12 56 35 5 21 10 19 3 0,1 10032M16Z4 32 17,0 M16 63 40 5 23 10 24 4 0,2 RSXF 12032M16Z3 32 17,0 M16 63 40 5 23 10 24 3 0,2 12040M16Z4 40 17,0 M16 63 40 5 23 10 24 4 0,3 Inserts AppIication Grade High Speed/Light Cut 81 81 GeneraI Purpose 81 81 81 Roughing M E 81 Cat. No. ACP200 ACK300 ACM100 ACM200 ACM300 Dimens. AppIicabIe Cutters 0d (IC) S RDET0803M0EN G 8 3,18 RSX(F) 08000ES eW 0803M0EN H 8 3,18 RDET10T3M0EN G 10 3,97 RSX(F) 10000ES 10T3M0ENH 10 3,97 RDET1204M0EN G 12 4,76 RSX(F) 12000ES 1204M0ENH 12 4,76 e E £±0,025 Cutting Edge Cross Section 1 l G - Type H - Type M0: IC is metric Spare Parts Запасные части Sumitomo и комплектующие AppIicabIe Cutters Wrench Screw /" RSX(F) 08000M TRDR08IP BFTX02506IP 1,5 RSX(F) 10000M TRDR15IP BFTX03584IP 3,0 RSX(F) 12000M BFTX0409IP 3,0 Cutter Identification RSX F 10 Cutter Fine Pitch Insert Series Type Size 025 M12 Z3 Cutter Mounting No. of Diameter Screw Size Teeth Recommended Cutting Conditions Min.-Optimum-Max. ISO Work MateriaI Hardness Cutting Speed Vc (m/min) Скорость резания (м/мин) Feed Rate ft (mm/t) Grade D Carbon SteeI 180-280HB 100-160-200 0,20-0,40-0,60 ACP200 AIIoy SteeI 180-280HB 100-140-180 0,20-0,30-0,40 ACP200 Cr Ferritic 200HB 150-180-200 0,15-0,25-0,35 ACM300 Stain- Based Martensitic 200-330HB 80-120-180 0,15-0,25-0,35 ACM300 M Iess Cr-Ni Based Austenitic 200HB 150-180-200 0,15-0,25-0,35 ACM300 SteeI Austenitic, ferritic 230-270HB 80-120-180 0,15-0,25-0,35 ACM200 Precipitation hardening 330HB 60-100-160 0,15-0,25-0,35 ACM200 K Cast Iron Чугун 250HB 80-120-160 0,10-0,30-0,40 ACK300 Heat resistant aIIoy Ni based materiaI 250-350HB 20- 30- 40 0,10-0,20-0,30 ACM100 ACM200 S Titanium Pure Titanium (Rm400) 60- 80-100 0,10-0,20-0,30 a + p aIIoy system (Rm1050) 40- 50- 60 0,10-0,20-0,30 H43 Indexable Endmills
