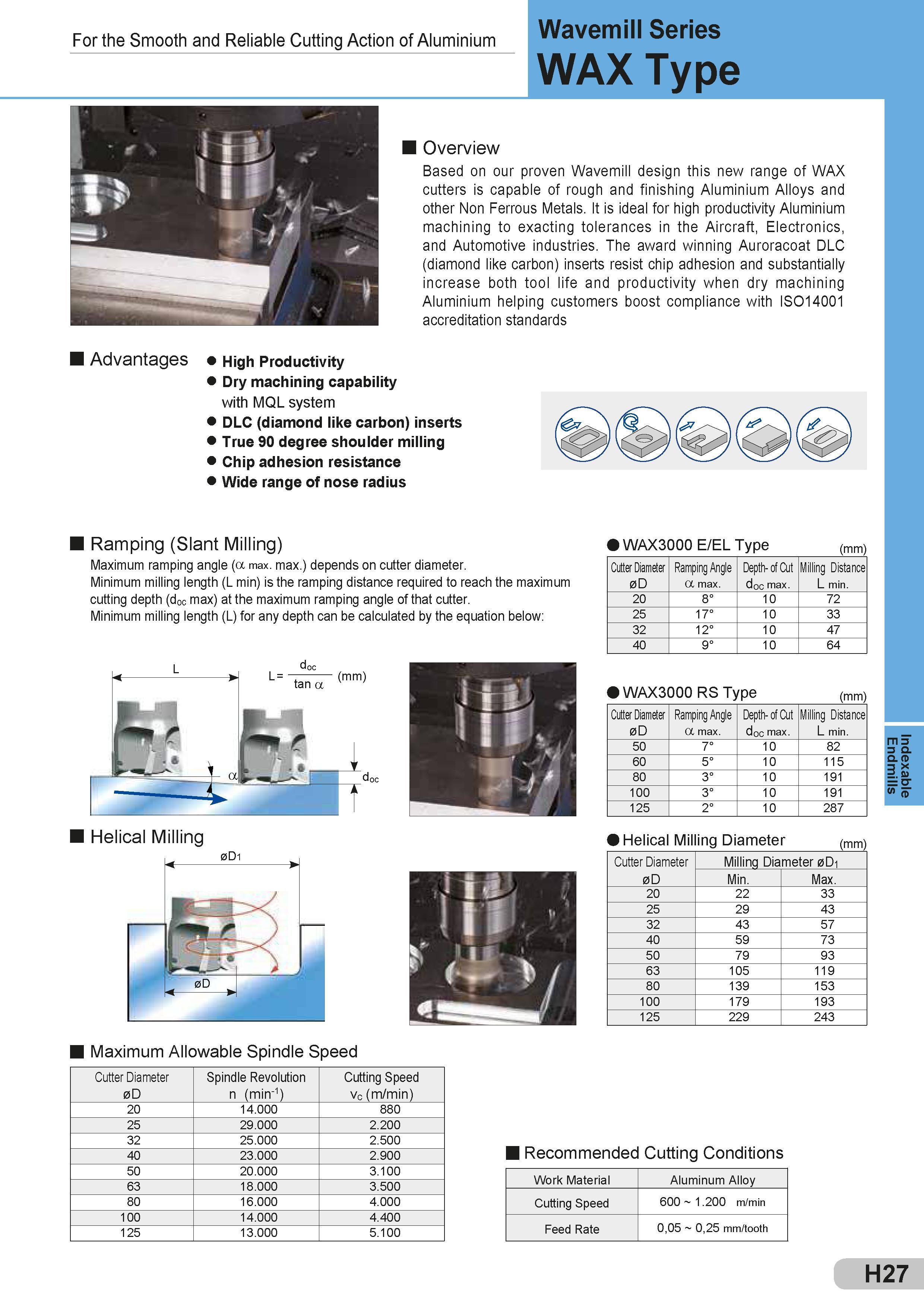

For the Smooth and Reliable Cutting Action of Aluminium Wavemill Series WAX Type Overview Based on our proven Wavemill design this new range of WAX cutters is capable of rough and finishing Aluminium Alloys and other Non Ferrous Metals. It is ideal for high productivity Aluminium machining to exacting tolerances in the Aircraft, Electronics, and Automotive industries. The award winning Auroracoat DLC (diamond like carbon) inserts resist chip adhesion and substantially increase both tool life and productivity when dry machining Aluminium helping customers boost compliance with ISO14001 accreditation standards Advantages High Productivity Dry machining capability with MQL system DLC (diamond like carbon) inserts True 90 degree shoulder milling Chip adhesion resistance Wide range of nose radius Ramping (Slant Milling) Maximum ramping angle (a max. max.) depends on cutter diameter. Minimum milling length (L min) is the ramping distance required to reach the maximum cutting depth (doc max) at the maximum ramping angle of that cutter. Minimum milling length (L) for any depth can be calculated by the equation below: doc L= r -(mm) IWAX3000 E/EL Type Helical Milling 0D1 Maximum Allowable Spindle Speed Cutter Diameter Spindle Revolution Cutting Speed 0D n (min-1) vc (m/min) 20 14.000 880 25 29.000 2.200 32 25.000 2.500 40 23.000 2.900 50 20.000 3.100 63 18.000 3.500 80 16.000 4.000 1 00 14.000 4.400 1 25 13.000 5.100 (mm) Cutter Diameter Ramping Angle Depth- of Cut Milling Distance 0D a max. doc max. L min. 20 8° 10 72 25 17° 10 33 32 12° 10 47 40 9° 10 64 WAX3000 RS Type (mm) Cutter Diameter Ramping Angle Depth- of Cut Milling Distance 0D a max. doc max. L min. 50 7° 10 82 60 5° 10 115 80 3° 10 1 91 100 3° 10 1 91 125 2° 10 287 1 Helical Milling Diameter (mm) Cutter Diameter 0D Milling Diameter 0D1 Min. Max. 20 22 33 25 29 43 32 43 57 40 59 73 50 79 93 63 105 119 80 139 1 53 1 00 179 1 93 1 25 229 243 Recommended Cutting Conditions Work Material Aluminum Alloy Cutting Speed 600 1.200 m/min Feed Rate 0,05 0,25 mm/tooth d oc H27 Indexable Endmills
