107 Каталог NAREX ZDANICE 2015 Инструмент для обработки резьбы Метчики Плашки Издание 27 Стр.102

Каталог NAREX ZDANICE 2015 Инструмент для резьбы Стр. 102 0107 Lab2u

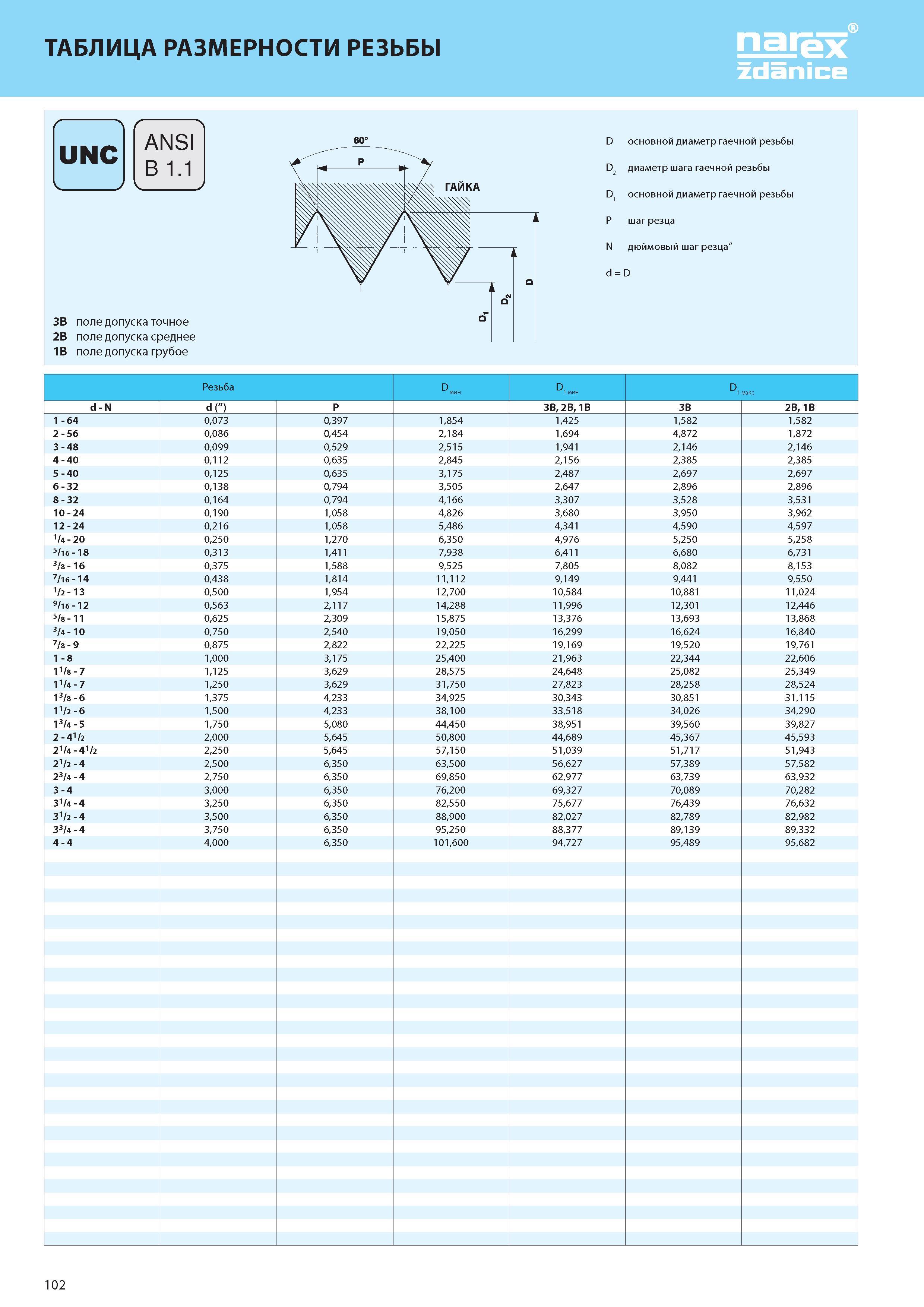

ТАБЛИЦА РАЗМЕРНОСТИ РЕЗЬБЫ NAREX Zdanice Резьба D мин D 1 мин D1 макс d - N d Г) P 3B, 2B, 1B 3B 2B, 1B 1 - 64 0,073 0,397 1,854 1,425 1,582 1,582 2 - 56 0,086 0,454 2,184 1,694 4,872 1,872 3 - 48 0,099 0,529 2,515 1,941 2,146 2,146 4 - 40 0,112 0,635 2,845 2,156 2,385 2,385 5 - 40 0,125 0,635 3,175 2,487 2,697 2,697 6 - 32 0,138 0,794 3,505 2,647 2,896 2,896 8 - 32 0,164 0,794 4,166 3,307 3,528 3,531 4 2 0 0,190 1,058 4,826 3,680 3,950 3,962 4 2 2 0,216 1,058 5,486 4,341 4,590 4,597 1/4 - 20 0,250 1,270 6,350 4,976 5,250 5,258 5/i6 - 18 0,313 1,411 7,938 6,411 6,680 6,731 3/8 - 16 0,375 1,588 9,525 7,805 8,082 8,153 7/i6 - 14 0,438 1,814 11,112 9,149 9,441 9,550 1/2 - 13 0,500 1,954 12,700 10,584 10,881 11,024 9/16 - 12 0,563 2,117 14,288 11,996 12,301 12,446 5/8 - 11 0,625 2,309 15,875 13,376 13,693 13,868 3/4 - 10 0,750 2,540 19,050 16,299 16,624 16,840 7/8 - 9 0,875 2,822 22,225 19,169 19,520 19,761 1 - 8 1,000 3,175 25,400 21,963 22,344 22,606 11/8 - 7 1,125 3,629 28,575 24,648 25,082 25,349 11/4 - 7 1,250 3,629 31,750 27,823 28,258 28,524 13/8 - 6 1,375 4,233 34,925 30,343 30,851 31,115 11/2 - 6 1,500 4,233 38,100 33,518 34,026 34,290 13/4 - 5 1,750 5,080 44,450 38,951 39,560 39,827 2 - 41/2 2,000 5,645 50,800 44,689 45,367 45,593 21/4 - 41/2 2,250 5,645 57,150 51,039 51,717 51,943 21/2 - 4 2,500 6,350 63,500 56,627 57,389 57,582 23/4 - 4 2,750 6,350 69,850 62,977 63,739 63,932 3 - 4 3,000 6,350 76,200 69,327 70,089 70,282 31/4 - 4 3,250 6,350 82,550 75,677 76,439 76,632 31/2 - 4 3,500 6,350 88,900 82,027 82,789 82,982 33/4 - 4 3,750 6,350 95,250 88,377 89,139 89,332 4 - 4 4,000 6,350 101,600 94,727 95,489 95,682 102
