109 Каталог NAREX ZDANICE 2015 Инструмент для обработки резьбы Метчики Плашки Издание 27 Стр.104

Каталог NAREX ZDANICE 2015 Инструмент для резьбы Стр. 104 0109 Lab2u

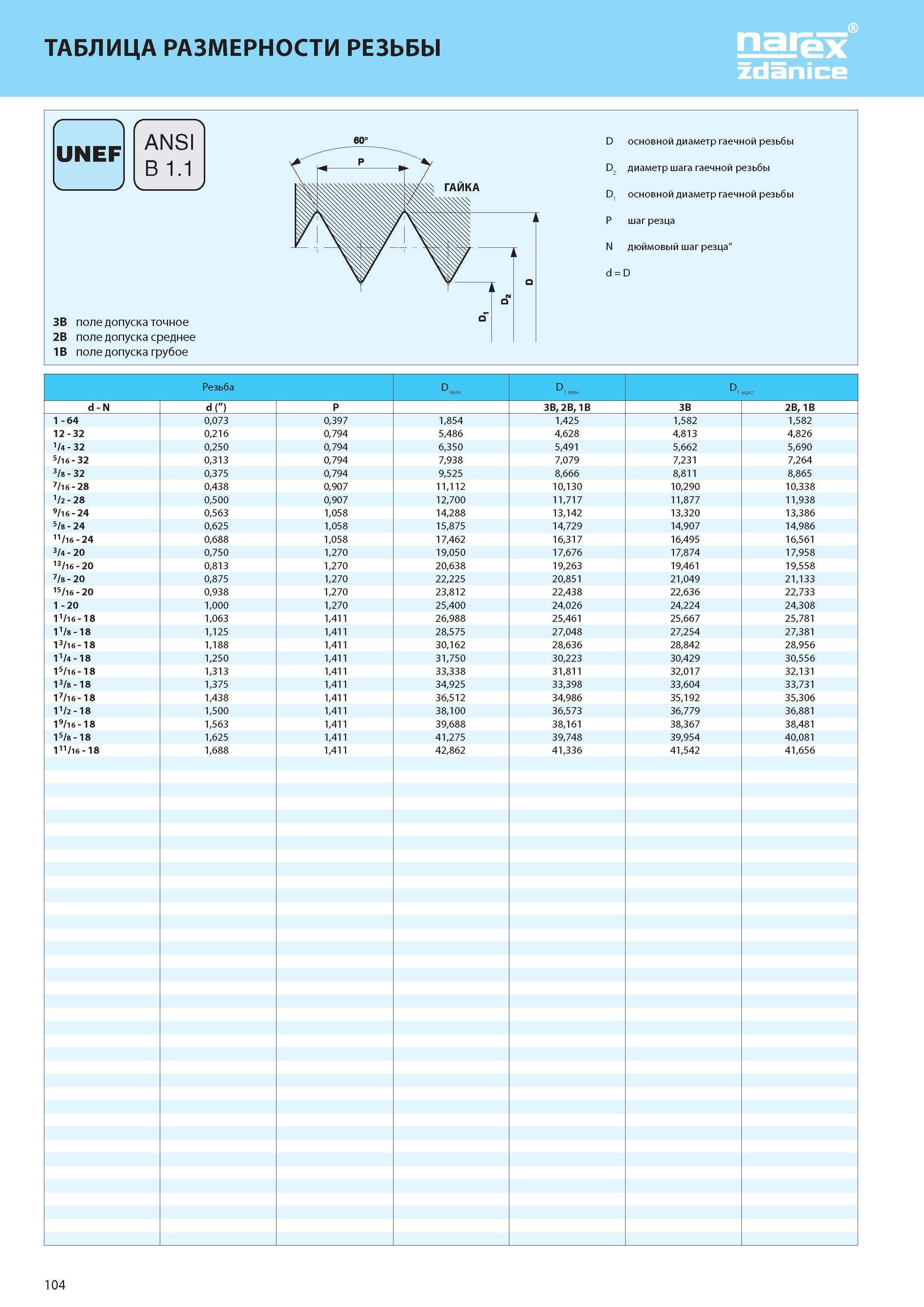

ТАБЛИЦА РАЗМЕРНОСТИ РЕЗЬБЫ NAREX Zdanice Резьба D мин D 1 мин D1 макс d - N d Г) P 3B, 2B, 1B 3B 2B, 1B 1 - 64 0,073 0,397 1,854 1,425 1,582 1,582 12 - 32 0,216 0,794 5,486 4,628 4,813 4,826 1/4 - 32 0,250 0,794 6,350 5,491 5,662 5,690 5/16 - 32 0,313 0,794 7,938 7,079 7,231 7,264 3/8 - 32 0,375 0,794 9,525 8,666 8,811 8,865 7/16 - 28 0,438 0,907 1 1 ,1 1 2 10,130 10,290 10,338 1/2 - 28 0,500 0,907 12,700 11,717 11,877 11,938 9/16 - 24 0,563 1,058 14,288 13,142 13,320 13,386 5/8 - 24 0,625 1,058 15,875 14,729 14,907 14,986 11/16 - 24 0,688 1,058 17,462 16,317 16,495 16,561 3/4 - 20 0,750 1,270 19,050 17,676 17,874 17,958 13/16 - 20 0,813 1,270 20,638 19,263 19,461 19,558 7/8 - 20 0,875 1,270 22,225 20,851 21,049 21,133 15/16 - 20 0,938 1,270 23,812 22,438 22,636 22,733 1 - 20 1,000 1,270 25,400 24,026 24,224 24,308 11/16 - 18 1,063 1,411 26,988 25,461 25,667 25,781 11/8 - 18 1,125 1,411 28,575 27,048 27,254 27,381 13/16 - 18 1,188 1,411 30,162 28,636 28,842 28,956 11/4 - 18 1,250 1,411 31,750 30,223 30,429 30,556 15/16 - 18 1,313 1,411 33,338 31,811 32,017 32,131 13/8 - 18 1,375 1,411 34,925 33,398 33,604 33,731 17/16 - 18 1,438 1,411 36,512 34,986 35,192 35,306 11/2 - 18 1,500 1,411 38,100 36,573 36,779 36,881 8 -6 1,563 1,411 39,688 38,161 38,367 38,481 15/8 - 18 1,625 1,411 41,275 39,748 39,954 40,081 111/16 - 18 1,688 1,411 42,862 41,336 41,542 41,656 104
