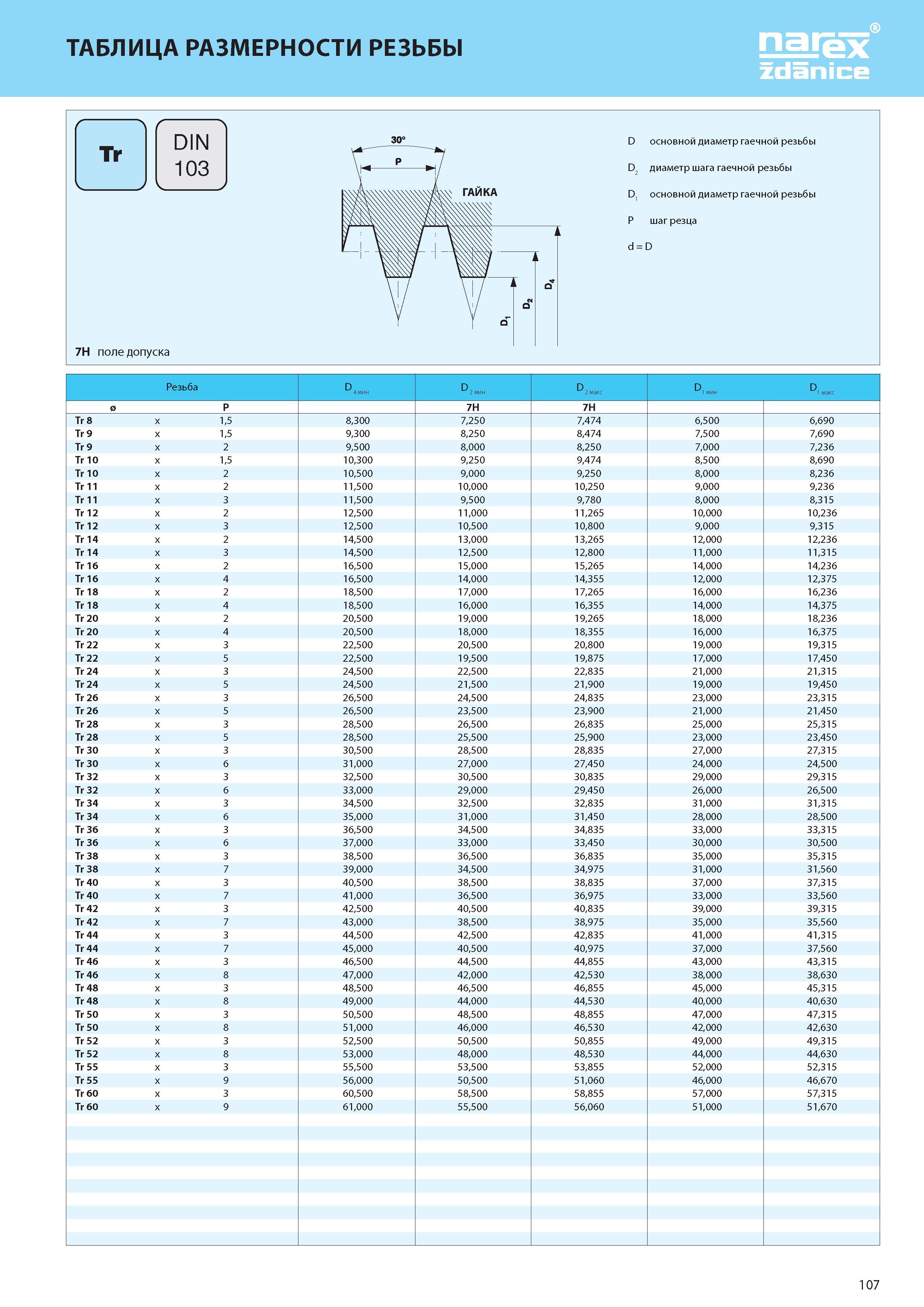

ТАБЛИЦА РАЗМЕРНОСТИ РЕЗЬБЫ 30° 7H поле допуска D основной диаметр гаечной резьбы D2 диаметр шага гаечной резьбы D1 основной диаметр гаечной резьбы P шаг резца d = D Резьба D 4 мин D 2 мин D 2 макс D1 мин D1 макс 0 P 7H 7H Tr 8 x 1 ,5 8,300 7,250 7,474 6,500 6,690 Tr 9 x 1 ,5 9,300 8,250 8,474 7,500 7,690 Tr 9 x 2 9,500 8,000 8,250 7,000 7,236 Tr 10 x 1 ,5 10,300 9,250 9,474 8,500 8,690 Tr 10 x 2 10,500 9,000 9,250 8,000 8,236 Tr 11 x 2 11,500 10,000 10,250 9,000 9,236 Tr 11 x 3 11,500 9,500 9,780 8,000 8,315 Tr 12 x 2 12,500 11,000 11,265 10,000 10,236 Tr 12 x 3 12,500 10,500 10,800 9,000 9,315 Tr 14 x 2 14,500 13,000 13,265 12,000 12,236 Tr 14 x 3 14,500 12,500 12,800 11,000 11,315 Tr 16 x 2 16,500 15,000 15,265 14,000 14,236 Tr 16 x 4 16,500 14,000 14,355 12,000 12,375 Tr 18 x 2 18,500 17,000 17,265 16,000 16,236 Tr 18 x 4 18,500 16,000 16,355 14,000 14,375 Tr 20 x 2 20,500 19,000 19,265 18,000 18,236 Tr 20 x 4 20,500 18,000 18,355 16,000 16,375 Tr 22 x 3 22,500 20,500 20,800 19,000 19,315 Tr 22 x 5 22,500 19,500 19,875 17,000 17,450 Tr 24 x 3 24,500 22,500 22,835 21,000 21,315 Tr 24 x 5 24,500 21,500 21,900 19,000 19,450 Tr 26 x 3 26,500 24,500 24,835 23,000 23,315 Tr 26 x 5 26,500 23,500 23,900 21,000 21,450 Tr 28 x 3 28,500 26,500 26,835 25,000 25,315 Tr 28 x 5 28,500 25,500 25,900 23,000 23,450 Tr 30 x 3 30,500 28,500 28,835 27,000 27,315 Tr 30 x 6 31,000 27,000 27,450 24,000 24,500 Tr 32 x 3 32,500 30,500 30,835 29,000 29,315 Tr 32 x 6 33,000 29,000 29,450 26,000 26,500 Tr 34 x 3 34,500 32,500 32,835 31,000 31,315 Tr 34 x 6 35,000 31,000 31,450 28,000 28,500 Tr 36 x 3 36,500 34,500 34,835 33,000 33,315 Tr 36 x 6 37,000 33,000 33,450 30,000 30,500 Tr 38 x 3 38,500 36,500 36,835 35,000 35,315 Tr 38 x 7 39,000 34,500 34,975 31,000 31,560 Tr 40 x 3 40,500 38,500 38,835 37,000 37,315 Tr 40 x 7 41,000 36,500 36,975 33,000 33,560 Tr 42 x 3 42,500 40,500 40,835 39,000 39,315 Tr 42 x 7 43,000 38,500 38,975 35,000 35,560 Tr 44 x 3 44,500 42,500 42,835 41,000 41,315 Tr 44 x 7 45,000 40,500 40,975 37,000 37,560 Tr 46 x 3 46,500 44,500 44,855 43,000 43,315 Tr 46 x 8 47,000 42,000 42,530 38,000 38,630 Tr 48 x 3 48,500 46,500 46,855 45,000 45,315 Tr 48 x 8 49,000 44,000 44,530 40,000 40,630 Tr 50 x 3 50,500 48,500 48,855 47,000 47,315 Tr 50 x 8 51,000 46,000 46,530 42,000 42,630 Tr 52 x 3 52,500 50,500 50,855 49,000 49,315 Tr 52 x 8 53,000 48,000 48,530 44,000 44,630 Tr 55 x 3 55,500 53,500 53,855 52,000 52,315 Tr 55 x 9 56,000 50,500 51,060 46,000 46,670 Tr 60 x 3 60,500 58,500 58,855 57,000 57,315 Tr 60 x 9 61,000 55,500 56,060 51,000 51,670 107
