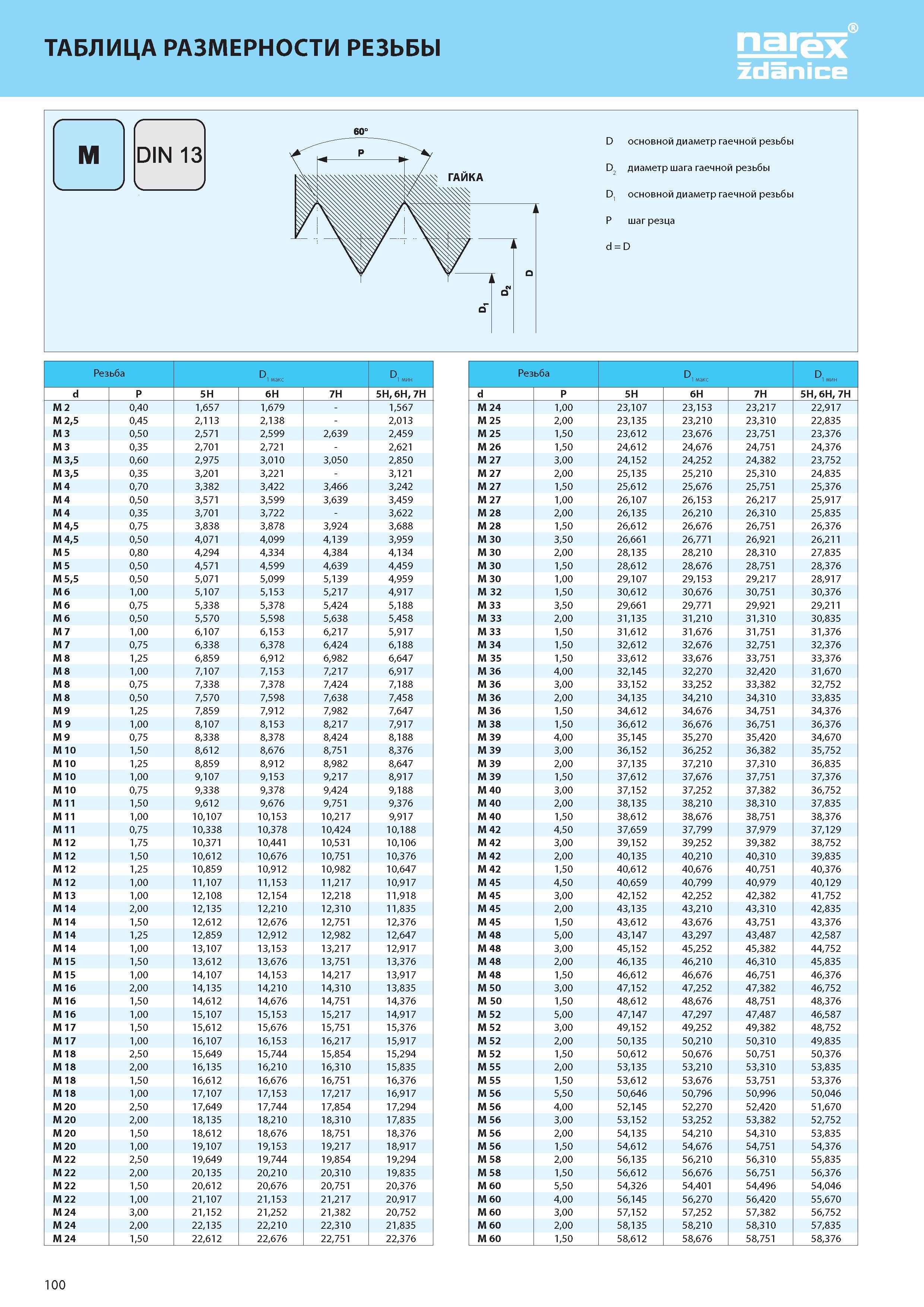

ТАБЛИЦА РАЗМЕРНОСТИ РЕЗЬБЫ NAREX Zdanice Резьба D1 макс D 1 мин d P 5H 6H 7H 5H, 6H, 7H M 24 1,00 23,107 23,153 23,217 22,917 M 25 2,00 23,135 23,210 23,310 22,835 M 25 1,50 23,612 23,676 23,751 23,376 M 26 1,50 24,612 24,676 24,751 24,376 M 27 3,00 24,152 24,252 24,382 23,752 M 27 2,00 25,135 25,210 25,310 24,835 M 27 1,50 25,612 25,676 25,751 25,376 M 27 1,00 26,107 26,153 26,217 25,917 M 28 2,00 26,135 26,210 26,310 25,835 M 28 1,50 26,612 26,676 26,751 26,376 M 30 3,50 26,661 26,771 26,921 26,211 M 30 2,00 28,135 28,210 28,310 27,835 M 30 1,50 28,612 28,676 28,751 28,376 M 30 1,00 29,107 29,153 29,217 28,917 M 32 1,50 30,612 30,676 30,751 30,376 M 33 3,50 29,661 29,771 29,921 29,211 M 33 2,00 31,135 31,210 31,310 30,835 M 33 1,50 31,612 31,676 31,751 31,376 M 34 1,50 32,612 32,676 32,751 32,376 M 35 1,50 33,612 33,676 33,751 33,376 M 36 4,00 32,145 32,270 32,420 31,670 M 36 3,00 33,152 33,252 33,382 32,752 M 36 2,00 34,135 34,210 34,310 33,835 M 36 1,50 34,612 34,676 34,751 34,376 M 38 1,50 36,612 36,676 36,751 36,376 M 39 4,00 35,145 35,270 35,420 34,670 M 39 3,00 36,152 36,252 36,382 35,752 M 39 2,00 37,135 37,210 37,310 36,835 M 39 1,50 37,612 37,676 37,751 37,376 M 40 3,00 37,152 37,252 37,382 36,752 M 40 2,00 38,135 38,210 38,310 37,835 M 40 1,50 38,612 38,676 38,751 38,376 M 42 4,50 37,659 37,799 37,979 37,129 M 42 3,00 39,152 39,252 39,382 38,752 M 42 2,00 40,135 40,210 40,310 39,835 M 42 1,50 40,612 40,676 40,751 40,376 M 45 4,50 40,659 40,799 40,979 40,129 M 45 3,00 42,152 42,252 42,382 41,752 M 45 2,00 43,135 43,210 43,310 42,835 M 45 1,50 43,612 43,676 43,751 43,376 M 48 5,00 43,147 43,297 43,487 42,587 M 48 3,00 45,152 45,252 45,382 44,752 M 48 2,00 46,135 46,210 46,310 45,835 M 48 1,50 46,612 46,676 46,751 46,376 M 50 3,00 47,152 47,252 47,382 46,752 M 50 1,50 48,612 48,676 48,751 48,376 M 52 5,00 47,147 47,297 47,487 46,587 M 52 3,00 49,152 49,252 49,382 48,752 M 52 2,00 50,135 50,210 50,310 49,835 M 52 1,50 50,612 50,676 50,751 50,376 M 55 2,00 53,135 53,210 53,310 53,835 M 55 1,50 53,612 53,676 53,751 53,376 M 56 5,50 50,646 50,796 50,996 50,046 M 56 4,00 52,145 52,270 52,420 51,670 M 56 3,00 53,152 53,252 53,382 52,752 M 56 2,00 54,135 54,210 54,310 53,835 M 56 1,50 54,612 54,676 54,751 54,376 M 58 2,00 56,135 56,210 56,310 55,835 M 58 1,50 56,612 56,676 56,751 56,376 M 60 5,50 54,326 54,401 54,496 54,046 M 60 4,00 56,145 56,270 56,420 55,670 M 60 3,00 57,152 57,252 57,382 56,752 M 60 2,00 58,135 58,210 58,310 57,835 M 60 1,50 58,612 58,676 58,751 58,376 Резьба D1 макс D 1 мин d P 5H 6H 7H 5H, 6H, 7H M 2 0,40 1,657 1,679 1,567 M 2,5 0,45 2,113 2,138 2,013 M 3 0,50 2,571 2,599 2,639 2,459 M 3 0,35 2,701 2,721 2,621 M 3,5 0,60 2,975 3,010 3,050 2,850 M 3,5 0,35 3,201 3,221 3,121 M 4 0,70 3,382 3,422 3,466 3,242 M 4 0,50 3,571 3,599 3,639 3,459 M 4 0,35 3,701 3,722 3,622 M 4,5 0,75 3,838 3,878 3,924 3,688 M 4,5 0,50 4,071 4,099 4,139 3,959 M 5 0,80 4,294 4,334 4,384 4,134 M 5 0,50 4,571 4,599 4,639 4,459 M 5,5 0,50 5,071 5,099 5,139 4,959 M 6 1,00 5,107 5,153 5,217 4,917 M 6 0,75 5,338 5,378 5,424 5,188 M 6 0,50 5,570 5,598 5,638 5,458 M 7 1,00 6,107 6,153 6,217 5,917 M 7 0,75 6,338 6,378 6,424 6,188 M 8 1,25 6,859 6,912 6,982 6,647 M 8 1,00 7,107 7,153 7,217 6,917 M 8 0,75 7,338 7,378 7,424 7,188 M 8 0,50 7,570 7,598 7,638 7,458 M 9 1,25 7,859 7,912 7,982 7,647 M 9 1,00 8,107 8,153 8,217 7,917 M 9 0,75 8,338 8,378 8,424 8,188 M 10 1,50 8,612 8,676 8,751 8,376 M 10 1,25 8,859 8,912 8,982 8,647 M 10 1,00 9,107 9,153 9,217 8,917 M 10 0,75 9,338 9,378 9,424 9,188 M 11 1,50 9,612 9,676 9,751 9,376 M 11 1,00 10,107 10,153 10,217 9,917 M 11 0,75 10,338 10,378 10,424 10,188 M 12 1,75 10,371 10,441 10,531 10,106 M 12 1,50 10,612 10,676 10,751 10,376 M 12 1,25 10,859 10,912 10,982 10,647 M 12 1,00 11,107 11,153 11,217 10,917 M 13 1,00 12,108 12,154 12,218 11,918 M 14 2,00 12,135 12,210 12,310 11,835 M 14 1,50 12,612 12,676 12,751 12,376 M 14 1,25 12,859 12,912 12,982 12,647 M 14 1,00 13,107 13,153 13,217 12,917 M 15 1,50 13,612 13,676 13,751 13,376 M 15 1,00 14,107 14,153 14,217 13,917 M 16 2,00 14,135 14,210 14,310 13,835 M 16 1,50 14,612 14,676 14,751 14,376 M 16 1,00 15,107 15,153 15,217 14,917 M 17 1,50 15,612 15,676 15,751 15,376 M 17 1,00 16,107 16,153 16,217 15,917 M 18 2,50 15,649 15,744 15,854 15,294 M 18 2,00 16,135 16,210 16,310 15,835 M 18 1,50 16,612 16,676 16,751 16,376 M 18 1,00 17,107 17,153 17,217 16,917 M 20 2,50 17,649 17,744 17,854 17,294 M 20 2,00 18,135 18,210 18,310 17,835 M 20 1,50 18,612 18,676 18,751 18,376 M 20 1,00 19,107 19,153 19,217 18,917 M 22 2,50 19,649 19,744 19,854 19,294 M 22 2,00 20,135 20,210 20,310 19,835 M 22 1,50 20,612 20,676 20,751 20,376 M 22 1,00 21,107 21,153 21,217 20,917 M 24 3,00 21,152 21,252 21,382 20,752 M 24 2,00 22,135 22,210 22,310 21,835 M 24 1,50 22,612 22,676 22,751 22,376 100
