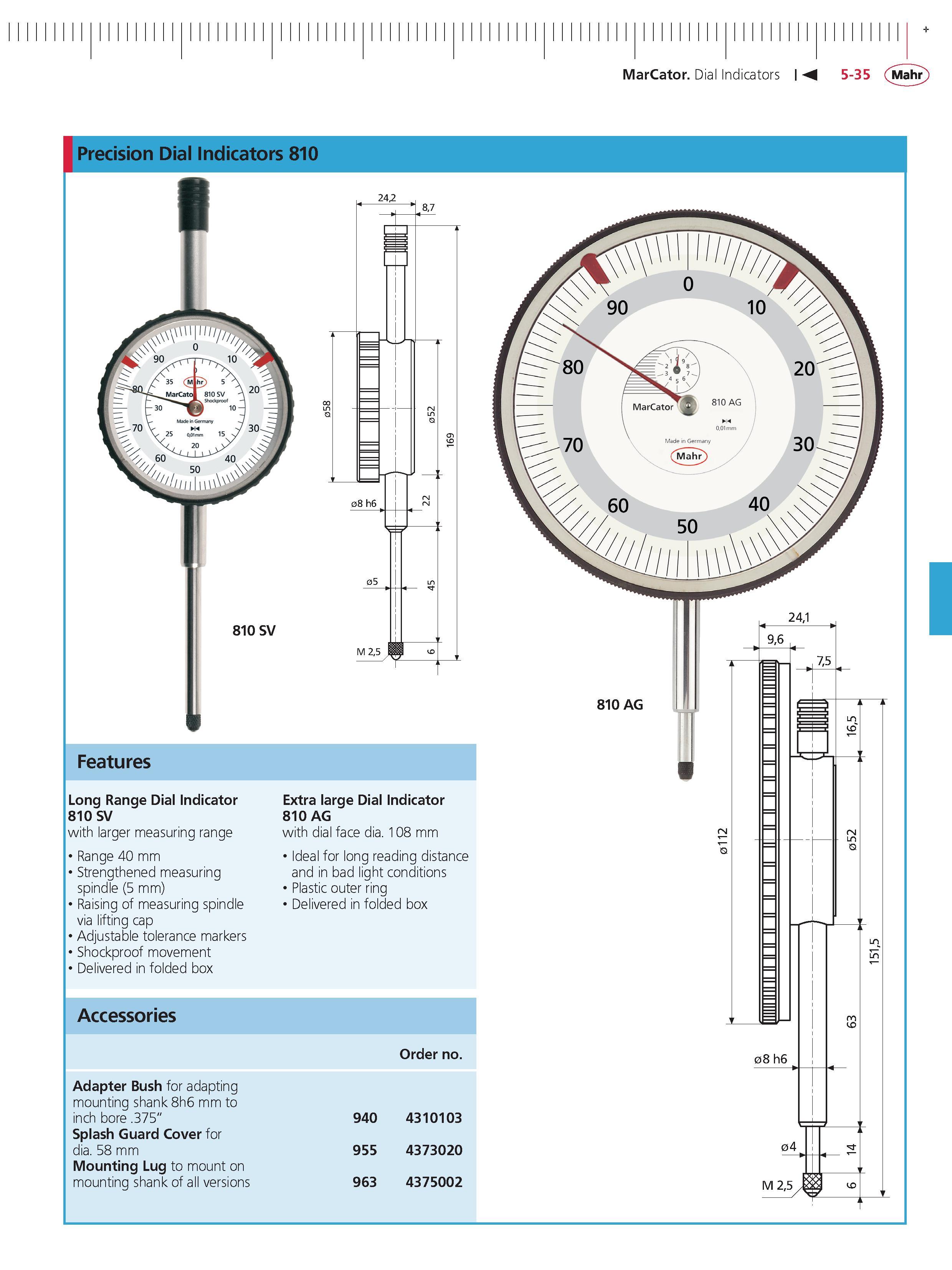

MarCator Dial Indicators M 5-35 (ftflahr) Precision Dial Indicators 810 08 h6 810 sv w Features Long Range Dial Indicator 810 Sv with larger measuring range Range 40 mm Strengthened measuring spindle (5 mm) Raising of measuring spindle via lifting cap Adjustable tolerance markers Shockproof movement Delivered in folded box Extra large Dial Indicator 810 AG with dial face dia. 108 mm Ideal for long reading distance and in bad light conditions Plastic outer ring Delivered in folded box Accessories order no. Adapter Bush for adapting mounting shank 8h6 mm to inch bore .375" 940 4310103 Splash Guard Cover for dia. 58 mm 955 4373020 Mounting Lug to mount on mounting shank of all versions 963 4375002
