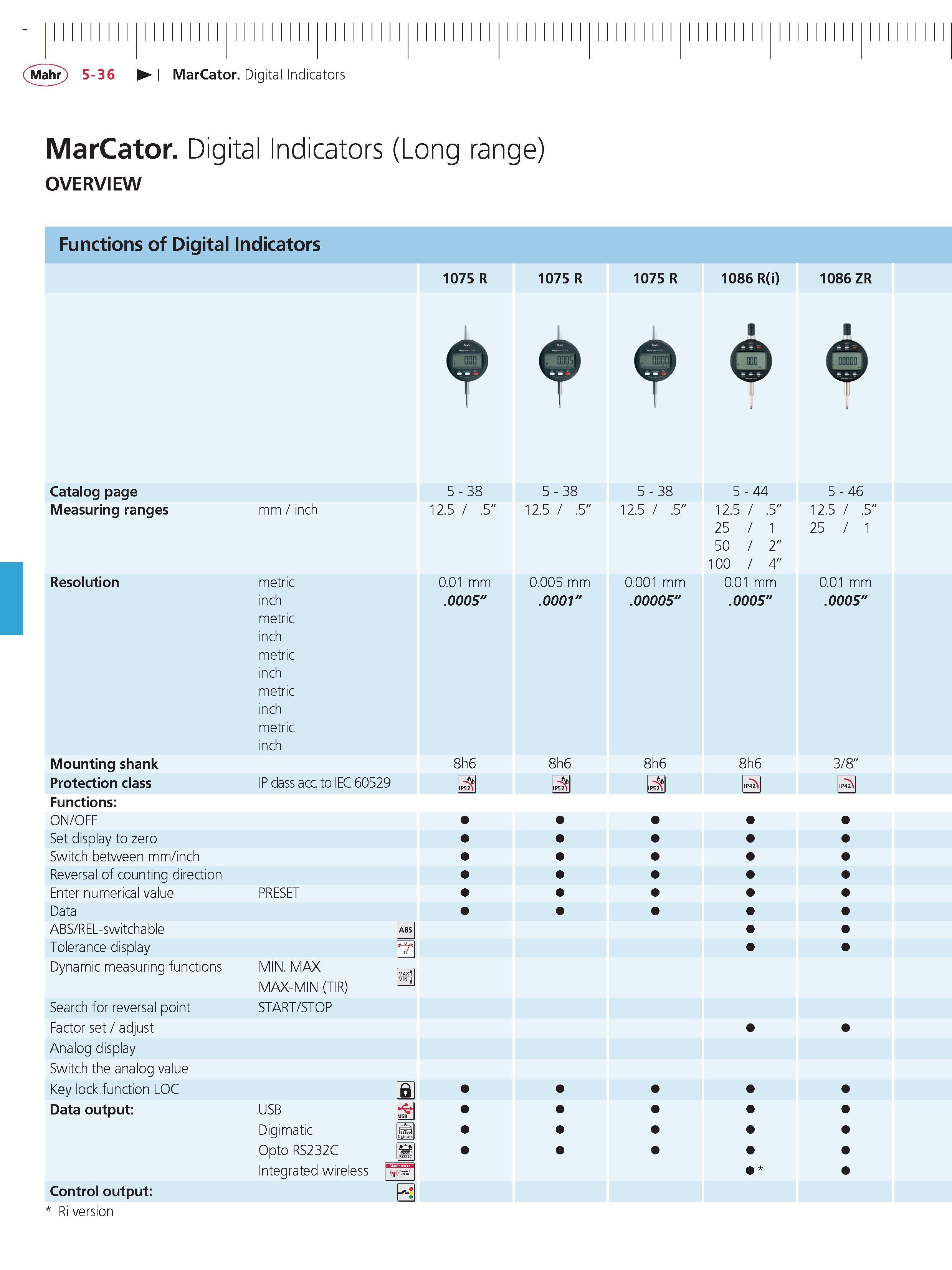

Mahr 5-36 MarCator Digital Indicators MarCator Digital Indicators (Long range) OVERVIEW Functions of Digital Indicators 1075 R 1075 R 1075 R 1086 R(i) 1086 ZR Catalog page 5 - 38 5 - 38 5 - 38 5 - 44 5 - 46 Measuring ranges mm inch 12.5 .5" 12.5 .5" 12.5 .5" 12.5 .5" 25 1 50 2" 100 4" 12.5 .5" 25 1 Resolution metric 0.01 mm 0.005 mm 0.001 mm 0.01 mm 0.01 mm inch .0005" .0001" .00005" .0005" .0005" Mounting shank Protection class Functions ON/OFF Set display to zero Switch between mm inch Reversal of counting direction Enter numerical value Data metric inch metric inch metric inch metric inch IP class acc to IEC 60529 8h6 8h6 8h6 8h6 3 8" PRESET ABS REL-switchable 0 Tolerance display 0 Dynamic measuring functions MIN. MAX MAX-MIN (TIR) Search for reversal point START STOP Factor set adjust Analog display Switch the analog value Key lock function LOC Data output USB Digimatic is Opto RS232C l J Integrated wireless A Control output a Ri version
