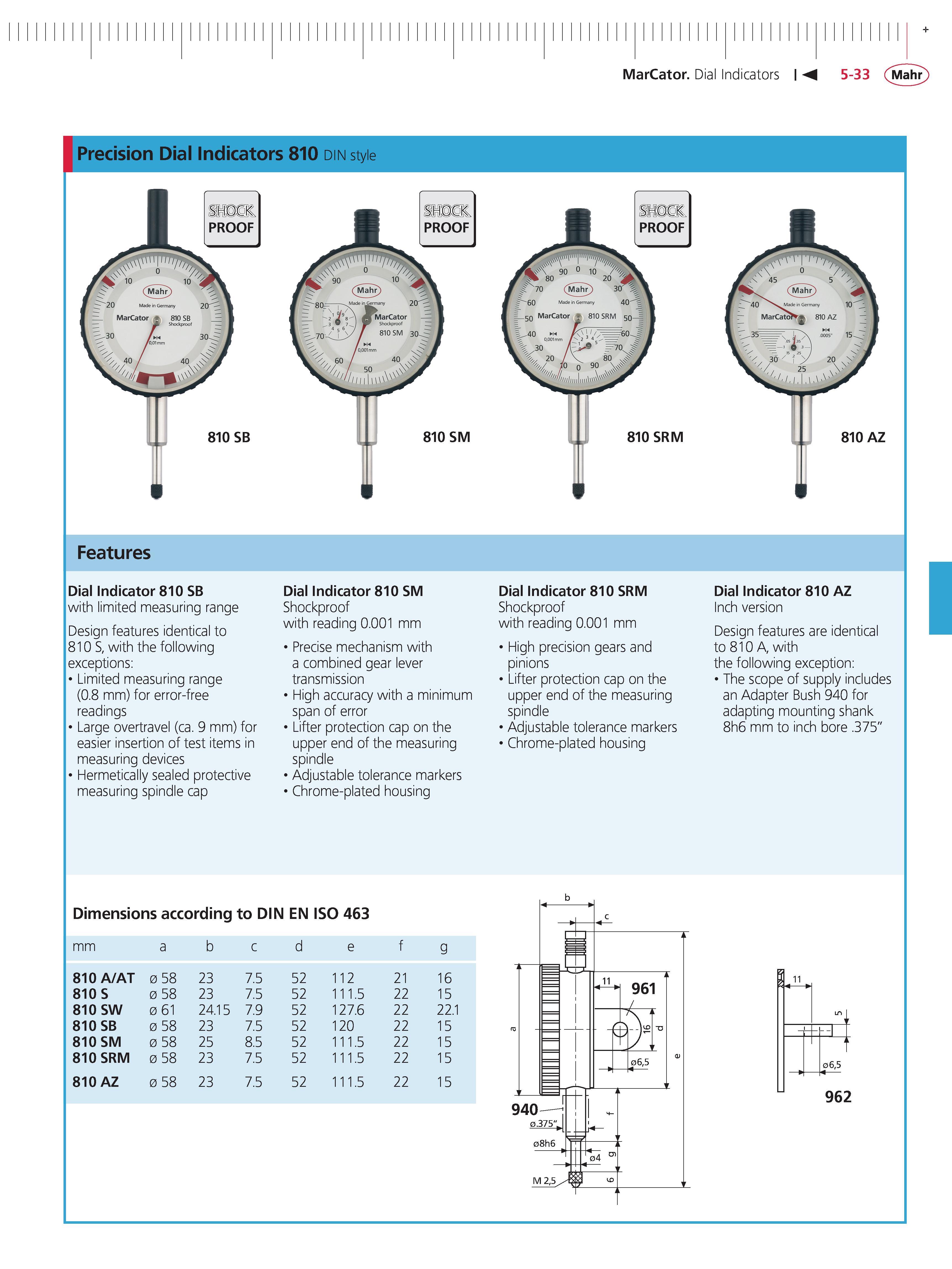

MarCator Dial Indicators 5-33 Mahr Precision Dial Indicators 810 din style smm SH m inset PROOF PROOF PROOF 810 SB 810 SM 810 SRM 810 AZ Features i Dial Indicator 810 SB with limited measuring range Design features identical to 810 S with the following exceptions Limited measuring range (0.8 mm) for error-free readings Large overtravel (ca. 9 mm) for easier insertion of test items in measuring devices Hermetically sealed protective measuring spindle cap Dial Indicator 810 SM Shockproof with reading 0.001 mm Precise mechanism with a combined gear lever transmission High accuracy with a minimum span of error Lifter protection cap on the upper end of the measuring spindle Adjustable tolerance markers Chrome-plated housing Dial Indicator 810 SRM Shockproof with reading 0.001 mm High precision gears and pinions Lifter protection cap on the upper end of the measuring spindle Adjustable tolerance markers Chrome-plated housing Dial Indicator 810 AZ Inch version Design features are identical to 810 A with the following exception The scope of supply includes an Adapter Bush 940 for adapting mounting shank 8h6 mm to inch bore .375" Dimensions according to DIN EN ISo 463 mm a b c d e f g 810 A AT 0 58 23 7.5 52 112 21 16 810 S 0 58 23 7.5 52 111.5 22 15 810 Sw 0 61 24.15 7.9 52 127.6 22 22.1 810 SB 0 58 23 7.5 52 120 22 15 810 SM 0 58 25 8.5 52 111.5 22 15 810 SRM 0 58 23 7.5 52 111.5 22 15 810 AZ 0 58 23 7.5 52 111.5 22 15 962 + 11
