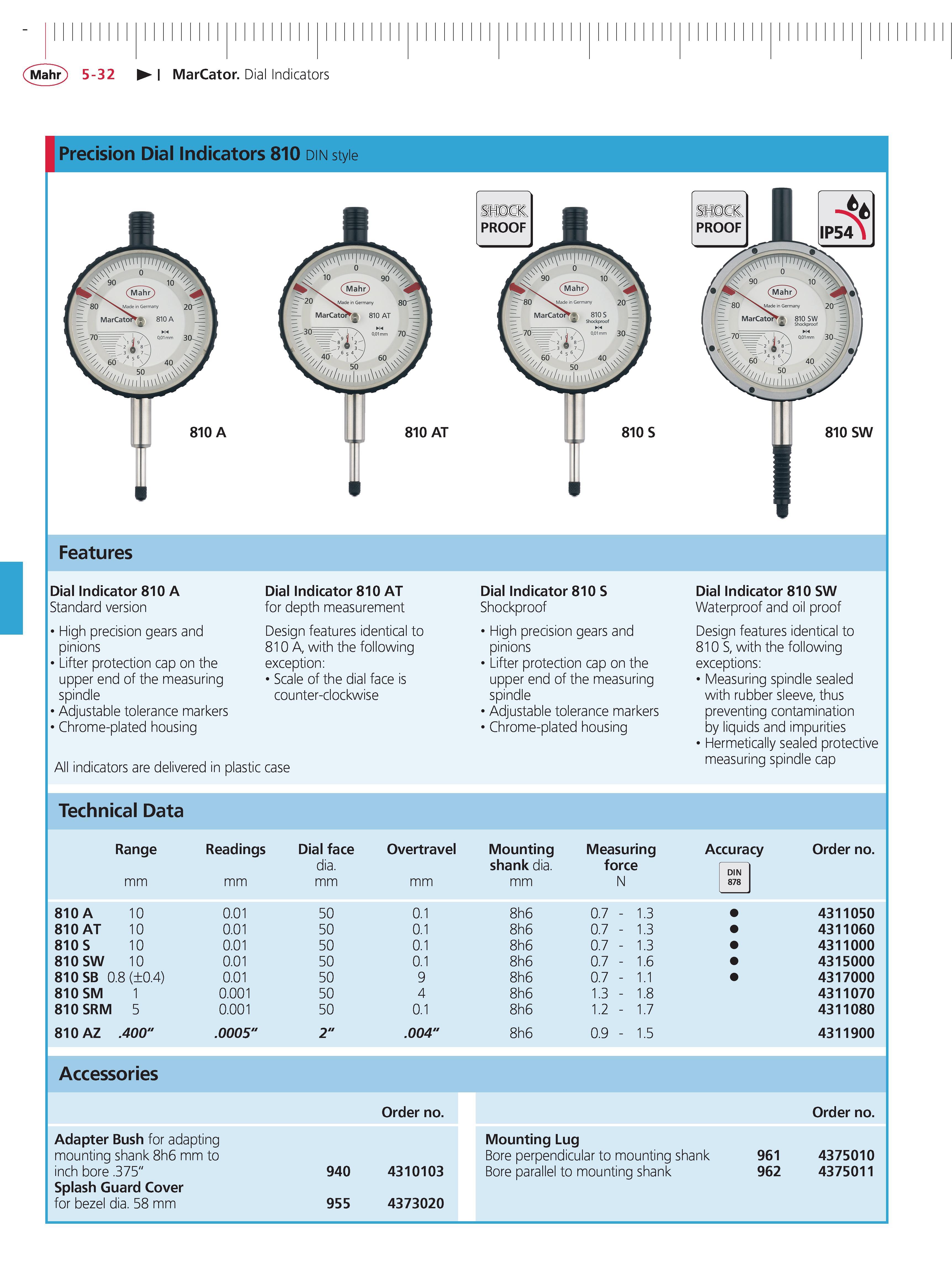

Precision Dial Indicators 810 din style 810 S Features Dial Indicator 810 A Standard version High precision gears and pinions Lifter protection cap on the upper end of the measuring spindle Adjustable tolerance markers Chrome-plated housing Dial Indicator 810 AT for depth measurement Design features identical to 810 A with the following exception Scale of the dial face is counter-clockwise Dial Indicator 810 S Shockproof High precision gears and pinions Lifter protection cap on the upper end of the measuring spindle Adjustable tolerance markers Chrome-plated housing All indicators are delivered in plastic case Dial Indicator 810 Sw Waterproof and oil proof Design features identical to 810 S with the following exceptions Measuring spindle sealed with rubber sleeve thus preventing contamination by liquids and impurities Hermetically sealed protective measuring spindle cap Technical Data Range Readings Dial face overtravel Mounting Measuring Accuracy order no. dia. shank dia. force DI N mm mm mm mm mm N 878 810 A 10 0.01 50 0.1 8h6 0.7 - 1.3 4311050 810 AT 10 0.01 50 0.1 8h6 0.7 - 1.3 4311060 810 S 10 0.01 50 0.1 8h6 0.7 - 1.3 4311000 810 Sw 10 0.01 50 0.1 8h6 0.7 - 1.6 4315000 810 SB 0.8 (0.4) 0.01 50 9 8h6 0.7 - 1.1 4317000 810 SM 1 0.001 50 4 8h6 1.3 - 1.8 4311070 810 SRM 5 0.001 50 0.1 8h6 1.2 - 1.7 4311080 810 AZ .400" .0005" 2" .004" 8h6 0.9 - 1.5 4311900 Accessories Adapter Bush for adapting mounting shank 8h6 mm to inch bore .375" Splash Guard Cover for bezel dia. 58 mm order no. 940 4310103 955 4373020 Mounting Lug Bore perpendicular to mounting shank 961 Bore parallel to mounting shank 962 order no. 4375010 4375011
