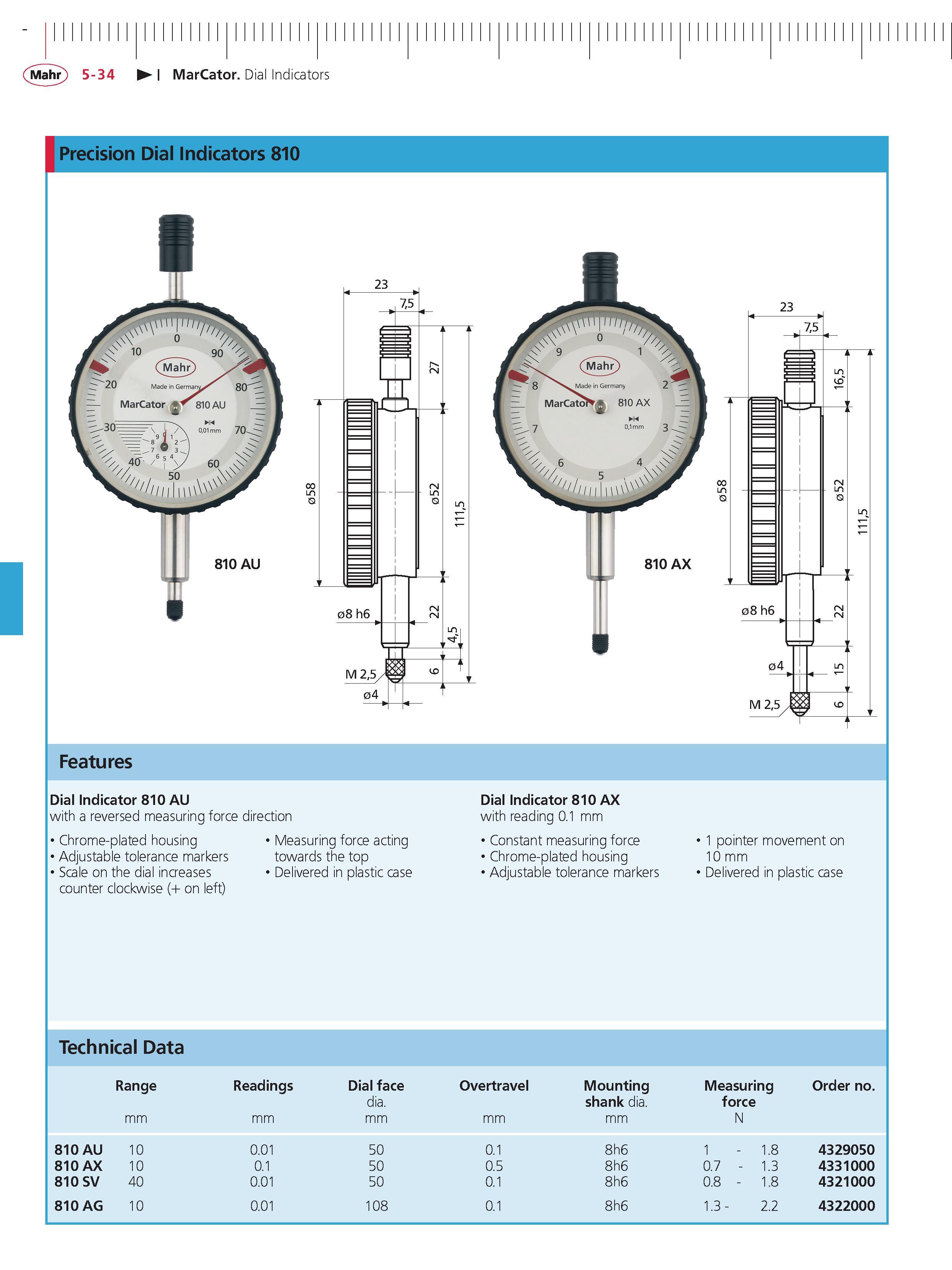

Mahr 5-34 MarCator Dial Indicators Precision Dial Indicators 810 810 AU 23 75 ion 08 h6 M 25 04 Features Dial Indicator 810 AU with a reversed measuring force direction Chrome-plated housing Adjustable tolerance markers Scale on the dial increases counter clockwise (+ on left) Measuring force acting towards the top Delivered in plastic case Dial Indicator 810 AX with reading 0.1 mm Constant measuring force Chrome-plated housing Adjustable tolerance markers 1 pointer movement on 10 mm Delivered in plastic case Technical Data Range Readings Dial face overtravel Mounting Measuring order no. dia. shank dia. force mm mm mm mm mm N 810 AU 10 0.01 50 0.1 8h6 1 - 1.8 4329050 810 AX 10 0.1 50 0.5 8h6 0.7 - 1.3 4331000 810 Sv 40 0.01 50 0.1 8h6 0.8 - 1.8 4321000 810 AG 10 0.01 108 0.1 8h6 .2 2 .3 4322000
