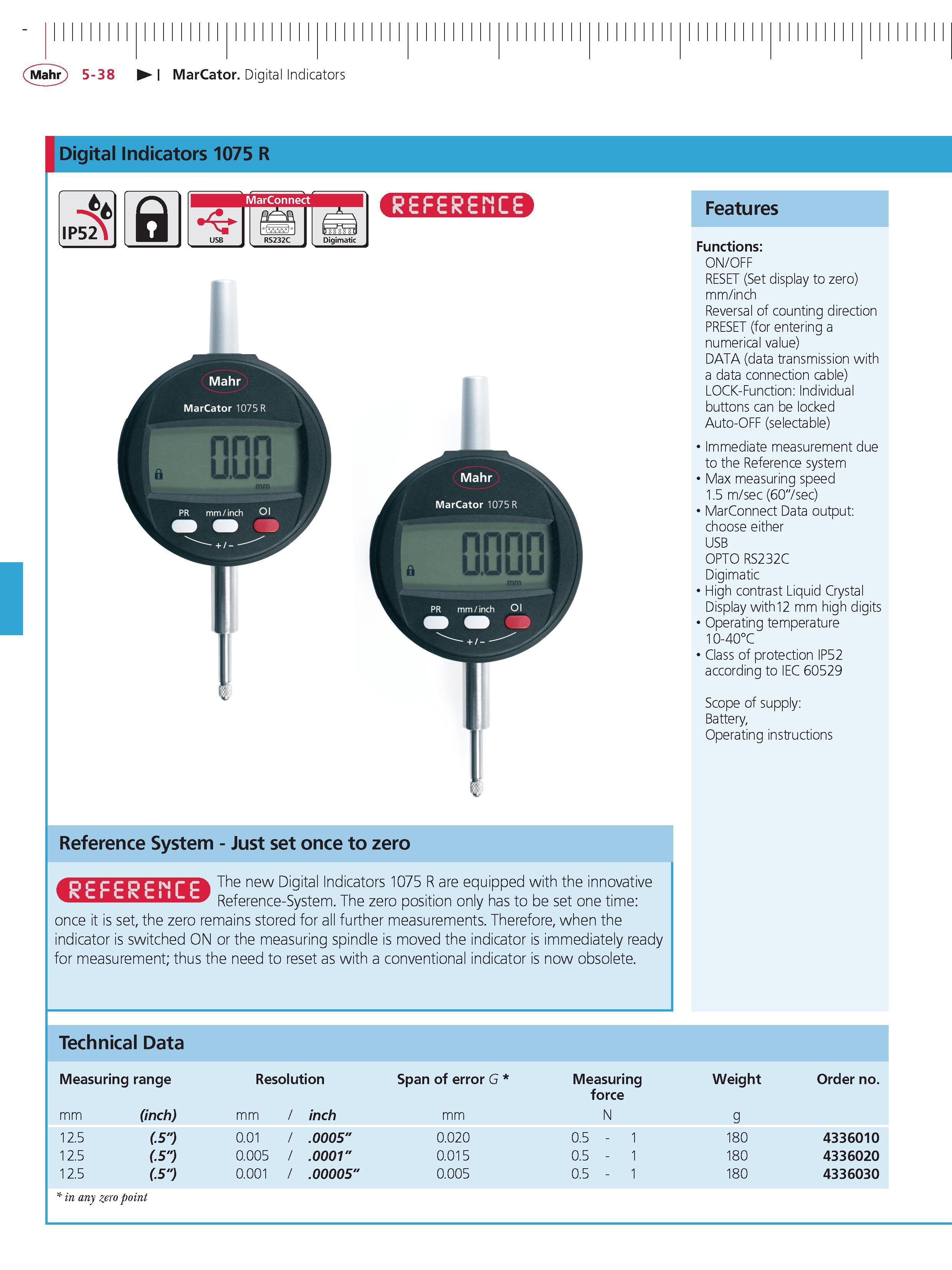

Mahr 5-38 MarCator Digital Indicators Digital Indicators 1075 R o IP52 U MarConnect Digimatic reference System - Just set once to zero The new Digital Indicators 1075 R are equipped with the innovative lil'tlTilllliy Reference-System. The zero position only has to be set one time once it is set the zero remains stored for all further measurements. Therefore when the indicator is switched ON or the measuring spindle is moved the indicator is immediately ready for measurement; thus the need to reset as with a conventional indicator is now obsolete. Features Functions ON/OFF RESET (Set display to zero) mm inch Reversal of counting direction PRESET (for entering a numerical value) DATA (data transmission with a data connection cable) LOCK-Function Individual buttons can be locked Auto-OFF (selectable) Immediate measurement due to the Reference system Max measuring speed 1.5 m sec (60" sec) MarConnect Data output choose either USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with12 mm high digits Operating temperature 10-40C Class of protection IP52 according to IEC 60529 Scope of supply Battery Operating instructions Technical Data Measuring range resolution Span of error G Measuring force weight order no. mm (inch) mm inch mm N g 12.5 (.5-) 0.01 .0005" 0.020 .5 0 180 4336010 12.5 (.5") 0.005 .0001" 0.015 0.5 - 1 180 4336020 12.5 (.5") 0.001 .00005" 0.005 0.5 - 1 180 4336030 in any zero point
