131 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.4-9

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 4-9 0131 ENG Lab2u

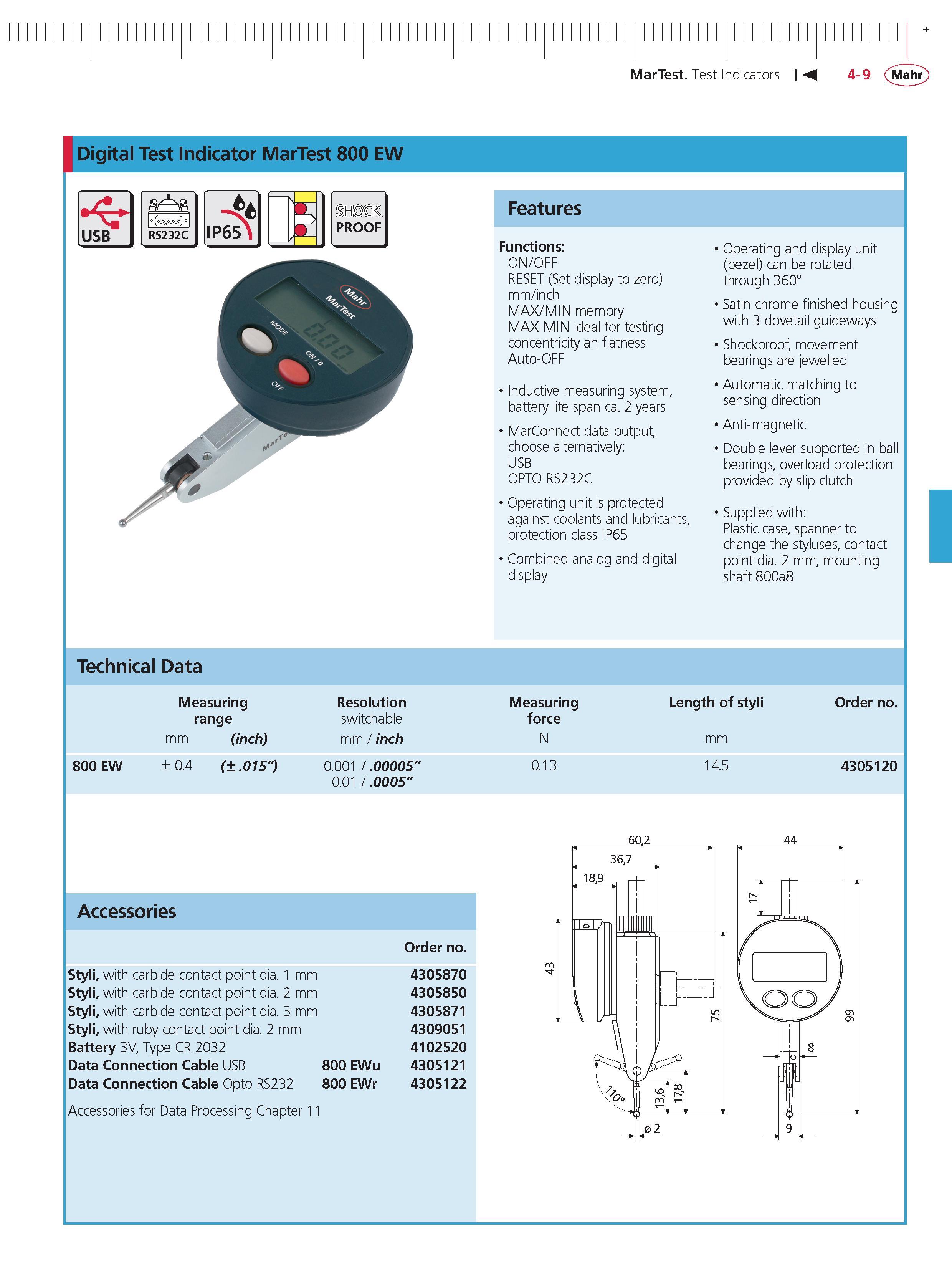

MarTest Test Indicators M 4-9 Mahr Digital Test Indicator MarTest 800 EW USB RS232C IP65 l PROOF Features Functions ON/OFF RESET (Set display to zero) mm inch MAX MIN memory MAX-MIN ideal for testing concentricity an flatness Auto-OFF Inductive measuring system battery life span ca. 2 years MarConnect data output choose alternatively USB OPTO RS232C Operating unit is protected against coolants and lubricants protection class IP65 Combined analog and digital display Operating and display unit (bezel) can be rotated through 360 Satin chrome finished housing with 3 dovetail guideways Shockproof movement bearings are jewelled Automatic matching to sensing direction Anti-magnetic Double lever supported in ball bearings overload protection provided by slip clutch Supplied with Plastic case spanner to change the styluses contact point dia. 2 mm mounting shaft 800a8 Technical Data Measuring range mm (inch) 800 Ew 0.4 ( .015") Resolution switchable mm inch 0.001 .00005" 0.01 .0005" Measuring force N 0.13 Length of styli mm 14.5 order no. 4305120 Accessories order no. Styli with carbide contact point dia. 1 mm 4305870 Styli with carbide contact point dia. 2 mm 4305850 Styli with carbide contact point dia. 3 mm 4305871 Styli with ruby contact point dia. 2 mm 4309051 Battery 3V Type CR 2032 4102520 Data Connection Cable USB 800 EWu 4305121 Data Connection Cable Opto RS232 800 eWr 4305122 Accessories for Data Processing Chapter 11 +
