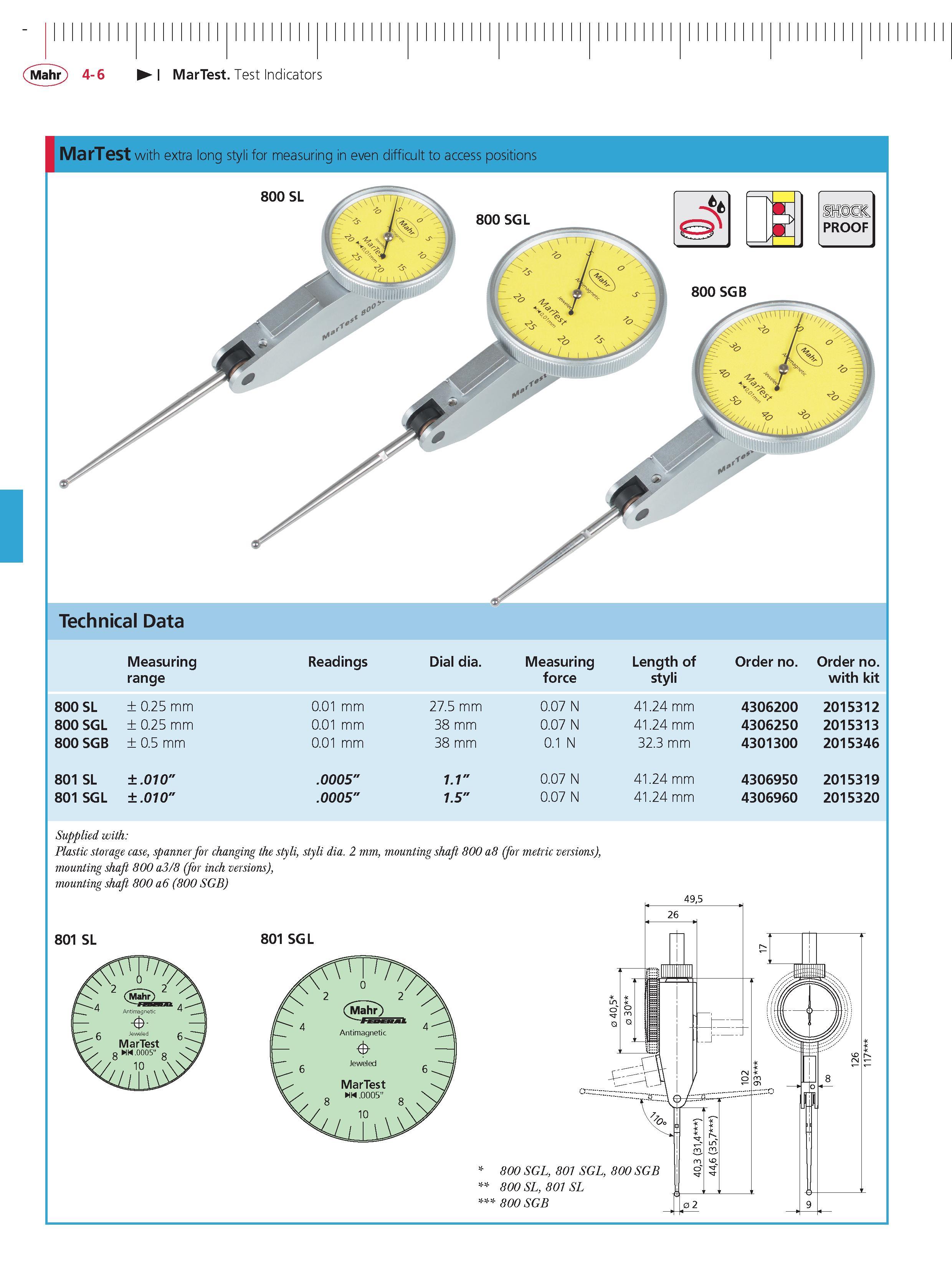

Mahr 4-6 MarTest Test Indicators MarTest with extra long styli for measuring in even difficult to access positions 800 SL Technical Data Measuring range Readings Dial dia. Measuring force Length of styli order no. order no. with kit 800 SL 0.25 mm 0.01 mm 27.5 mm 0.07 N 41.24 mm 4306200 2015312 800 SGL 0.25 mm 0.01 mm 38 mm 0.07 N 41.24 mm 4306250 2015313 800 SGB 0.5 mm 0.01 mm 38 mm 0.1 N 32.3 mm 4301300 2015346 801 SL .010" .0005" 1.1" 0.07 N 41.24 mm 4306950 2015319 801 SGL .010" .0005" 1.5" 0.07 N 41.24 mm 4306960 2015320 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a8 (for metric versions) mounting shaft 800 a3 8 (for inch versions) mounting shaft 800 a6 (800 SGB) 801 SL 801 SGL 800 SGL 801 SGL 800 SGB 800 SL 801 SL 800 SGB
