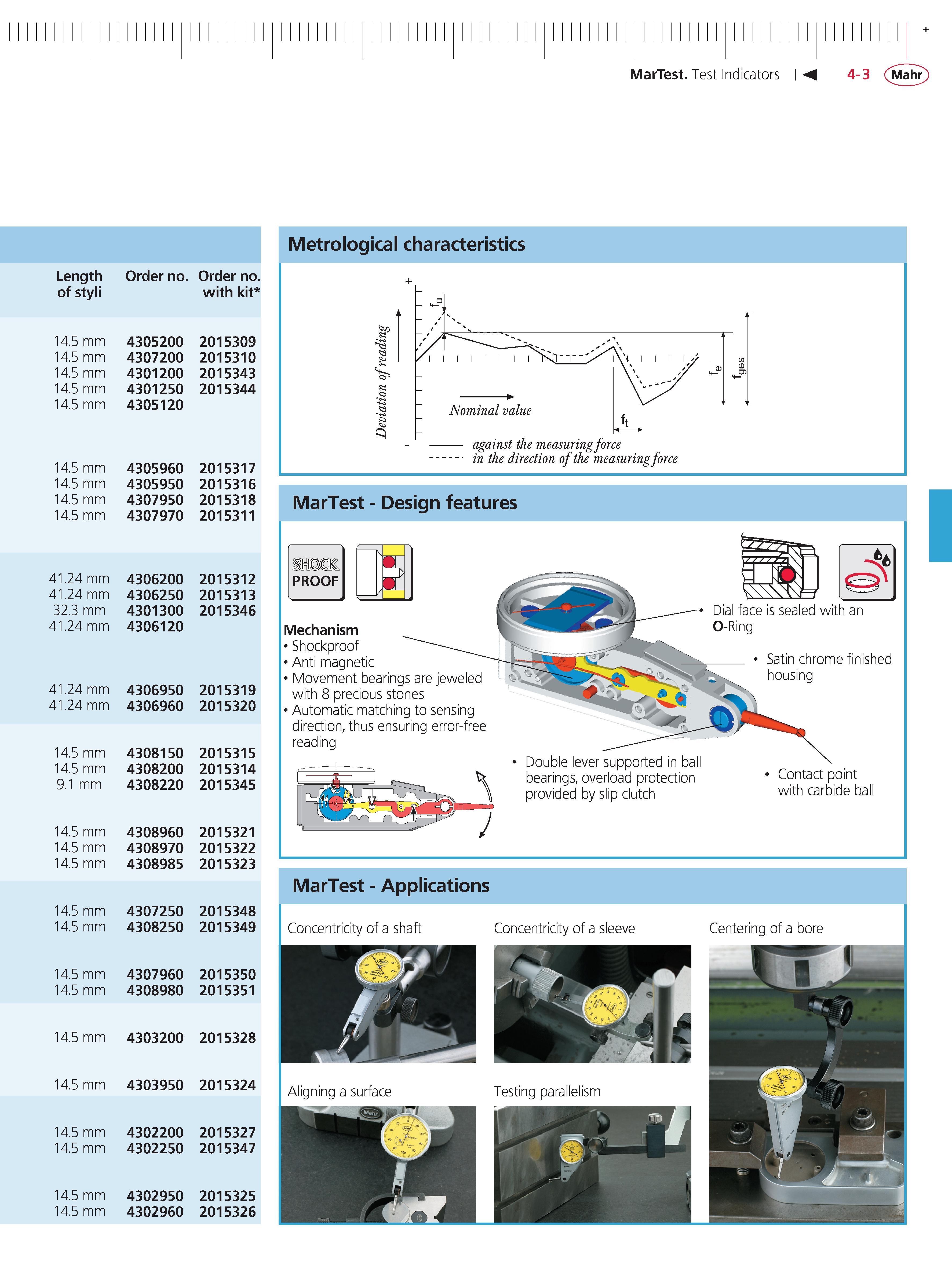

125 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.4-3

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 4-3 0125 ENG Lab2u

Length of styli 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 41.24 mm 41.24 mm 32.3 mm 41.24 mm 41.24 mm 41.24 mm 14.5 mm 14.5 mm 9.1 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm 14.5 mm MarTest Test Indicators 4-3 Mahr Order no. Order no. with kit 4305200 2015309 4307200 2015310 4301200 2015343 4301250 2015344 4305120 4305960 2015317 4305950 2015316 4307950 2015318 4307970 2015311 4306200 2015312 4306250 2015313 4301300 2015346 4306120 4306950 2015319 4306960 2015320 4308150 2015315 4308200 2015314 4308220 2015345 4308960 2015321 4308970 2015322 4308985 2015323 4307250 2015348 4308250 2015349 4307960 2015350 4308980 2015351 4303200 2015328 4303950 2015324 4302200 2015327 4302250 2015347 4302950 2015325 4302960 2015326 N SHOCK PROOF Mechanism Shockproof Anti magnetic Movement bearings are jeweled with 8 precious stones Automatic matching to sensing direction thus ensuring error-free reading Dial face is sealed with an o-Ring Satin chrome finished housing Double lever supported in ball bearings overload protection provided by slip clutch Contact point with carbide ball MarTest - Applications Concentricity of a shaft Concentricity of a sleeve Centering of a bore
