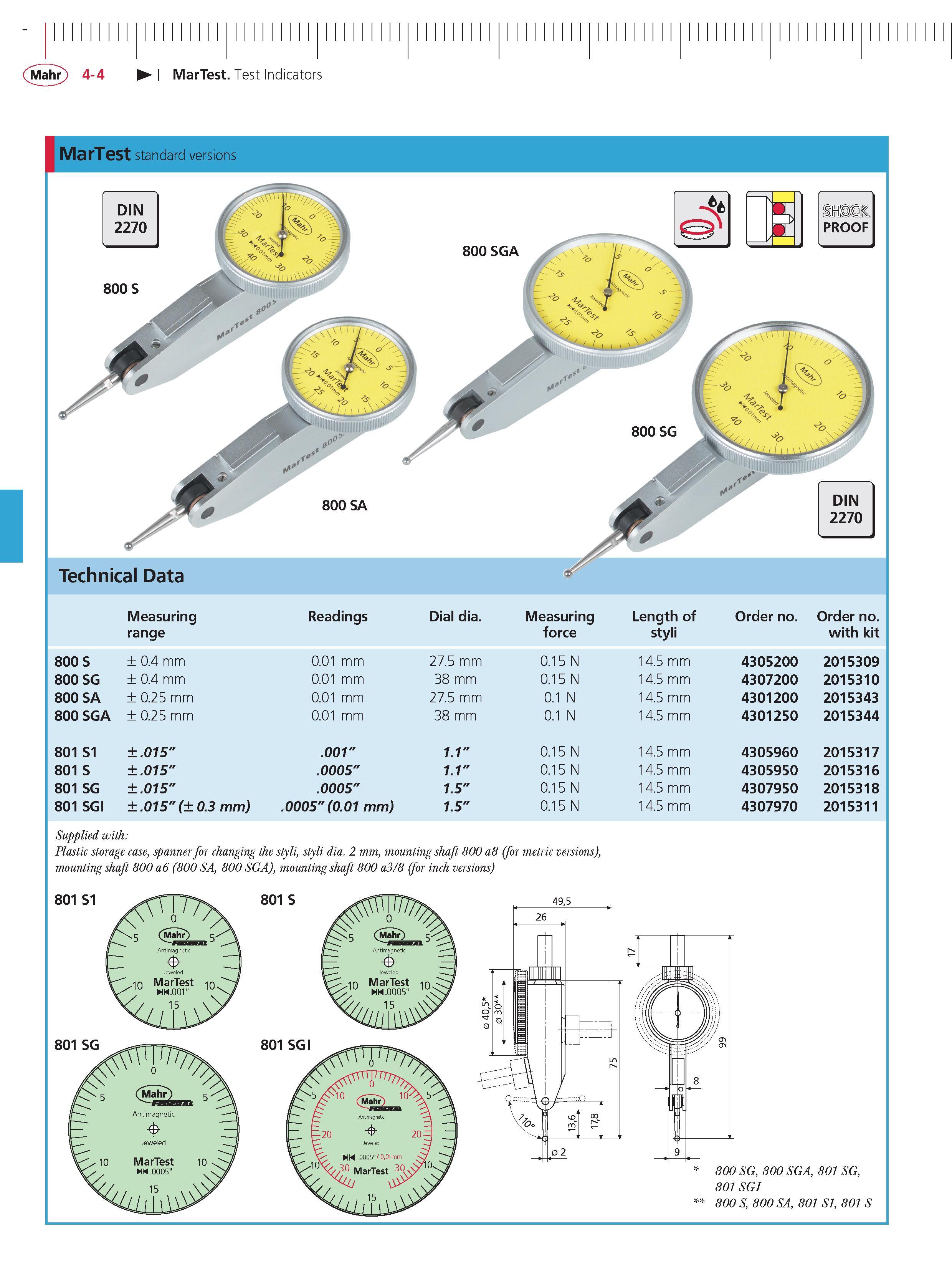

Mahr 4-4 MarTest Test Indicators MarTest standard versions Technical Data Measuring Readings Dial dia. Measuring Length of order no. order no. range force styli with kit 800 S 0.4 mm 0.01 mm 27.5 mm 0.15 N 14.5 mm 4305200 2015309 800 SG 0.4 mm 0.01 mm 38 mm 0.15 N 14.5 mm 4307200 2015310 800 SA 0.25 mm 0.01 mm 27.5 mm 0.1 N 14.5 mm 4301200 2015343 800 SGA 0.25 mm 0.01 mm 38 mm 0.1 N 14.5 mm 4301250 2015344 801 S1 .015" .001" 1.1" 0.15 N 14.5 mm 4305960 2015317 801 S .015" .0005" 1.1" 0.15 N 14.5 mm 4305950 2015316 801 SG .015" .0005" 1.5" 0.15 N 14.5 mm 4307950 2015318 801 SGI .015" ( 0.3 mm) .0005" (0.01 mm) 1.5" 0.15 N 14.5 mm 4307970 2015311 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a8 (for metric versions) mounting shaft 800 a6 (800 SA 800 SGA) mounting shaft 800 a3 8 (for inch versions) 801 S1 801 SG 801 S 801 SGI 800 SG 800 SGA 801 SG 801 SGI 800 S 800 SA 801 S1 801 S
