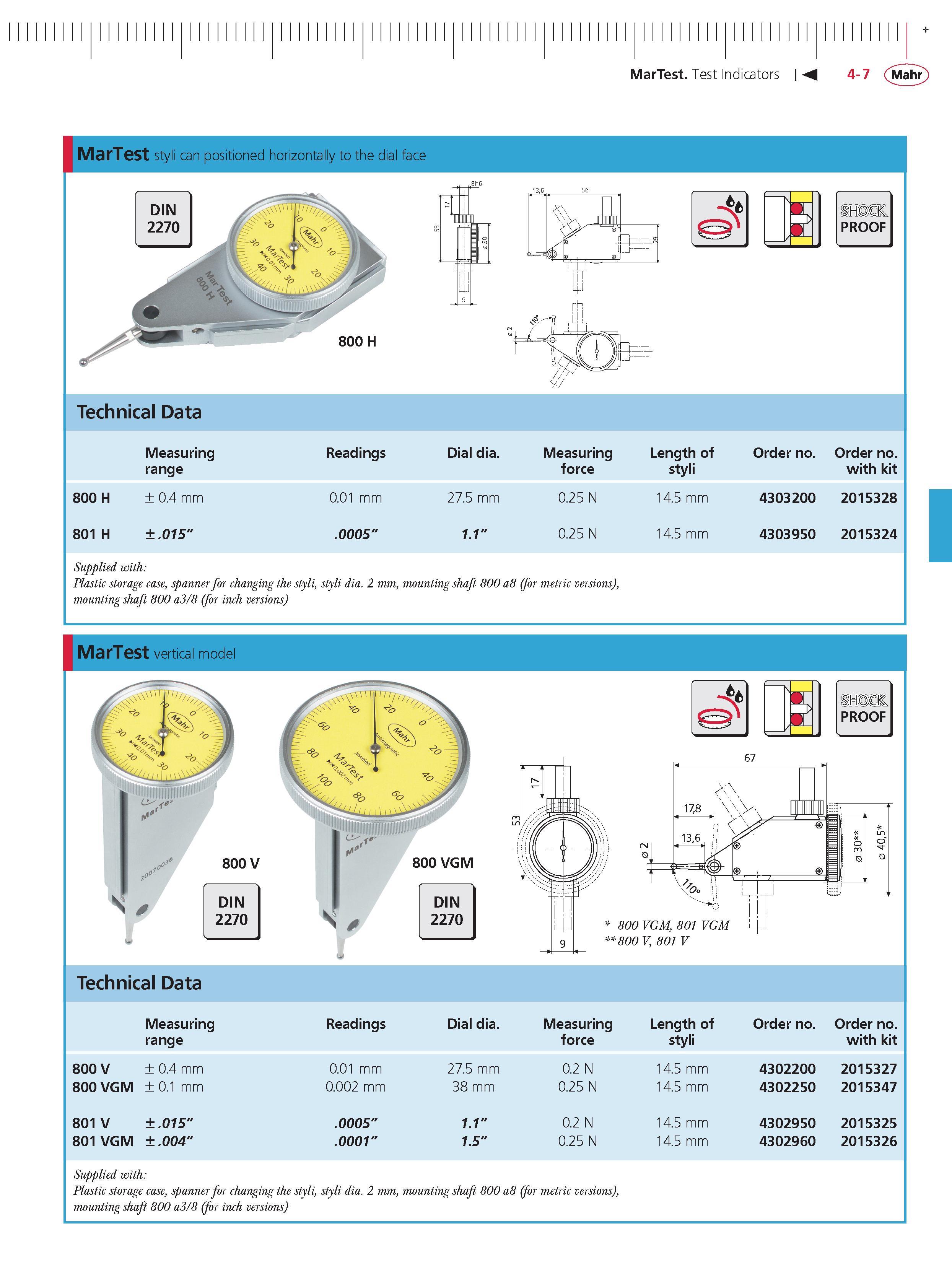

MarTest Test Indicators M 4-7 Mahr MarTest styli can positioned horizontally to the dial face DIN 2270 r- 'b mms 136 56 800 H PROOF Technical Data Measuring range 800 H 0.4 mm 801 H .015" Readings 0.01 mm .0005" Dial dia. 27.5 mm 1.1" Measuring force 0.25 N 0.25 N Length of order no. styli 14.5 mm 14.5 mm 4303200 4303950 order no. with kit 2015328 2015324 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a3 8 (for inch versions) mounting shaft 800 a8 (for metric versions) MarTest vertical model PROOF 67 800 VGM 801 VGM 4 800 V 801 V Technical Data Measuring range Readings Dial dia. Measuring force Length of styli 800 v 0.4 mm 0.01 mm 27.5 mm 0.2 N 14.5 mm 800 vGM 0.1 mm 0.002 mm 38 mm 0.25 N 14.5 mm 801 v .015" .0005" 1.1" 0.2 N 14.5 mm 801 vGM .004" .0001" 1.5" 0.25 N 14.5 mm order no. 4302200 4302250 4302950 4302960 order no. with kit 2015327 2015347 2015325 2015326 sh6 9 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a8 (for metric versions) mounting shaft 800 a3 8 (for inch versions)
