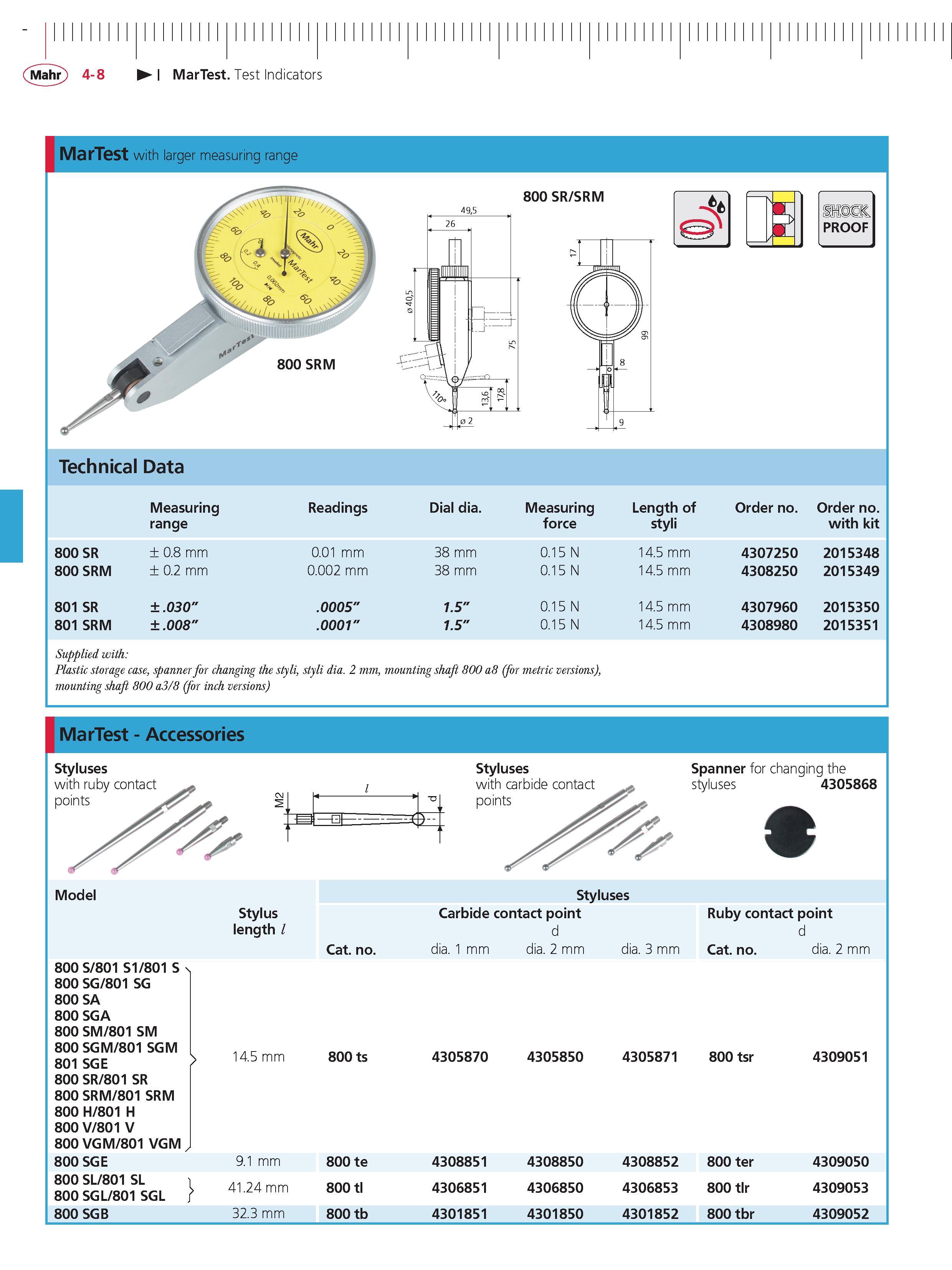

Mahr 4-8 MarTest Test Indicators MarTest with larger measuring range 800 SR SRM SHOCK PROOF Technical Data Measuring range Readings Dial dia. Measuring force Length of styli order no. order no. with kit 800 SR 0.8 mm 0.01 mm 38 mm 0.15 N 14.5 mm 4307250 2015348 800 SRM 0.2 mm 0.002 mm 38 mm 0.15 N 14.5 mm 4308250 2015349 801 SR .030" .0005" 1.5" 0.15 N 14.5 mm 4307960 2015350 801 SRM .008" .0001" 1.5" 0.15 N 14.5 mm 4308980 2015351 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a8 (for metric versions) mounting shaft 800 a3 8 (for inch versions) MarTest - Accessories Styluses with ruby contact points ril f o y A ) Styluses with carbide contact points Spanner for changing the styluses 4305868 Model 800 S 801 S1 801 S 800 SG 801 SG 800 SA 800 SGA 800 SM 801 SM 800 SGM 801 SGM 801 SGE 800 SR 801 SR 800 SRM 801 SRM 800 H 801 H 800 v 801 v 800 vGM 801 vGM Styluses Stylus length l Cat. no. Carbide contact point d dia. 1 mm dia. 2 mm Ruby contact point d dia. 3 mm Cat. no. dia. 2 mm 14.5 mm 800 ts 4305870 4305850 4305871 800 tsr 4309051 800 SGE 9.1 mm 800 te 4308851 4308850 4308852 800 ter 4309050 800 SL 801 SL i 800 SGL 801 SGL 41.24 mm 800 tl 4306851 4306850 4306853 800 tlr 4309053 800 SGB 32.3 mm 800 tb 4301851 4301850 4301852 800 tbr 4309052
