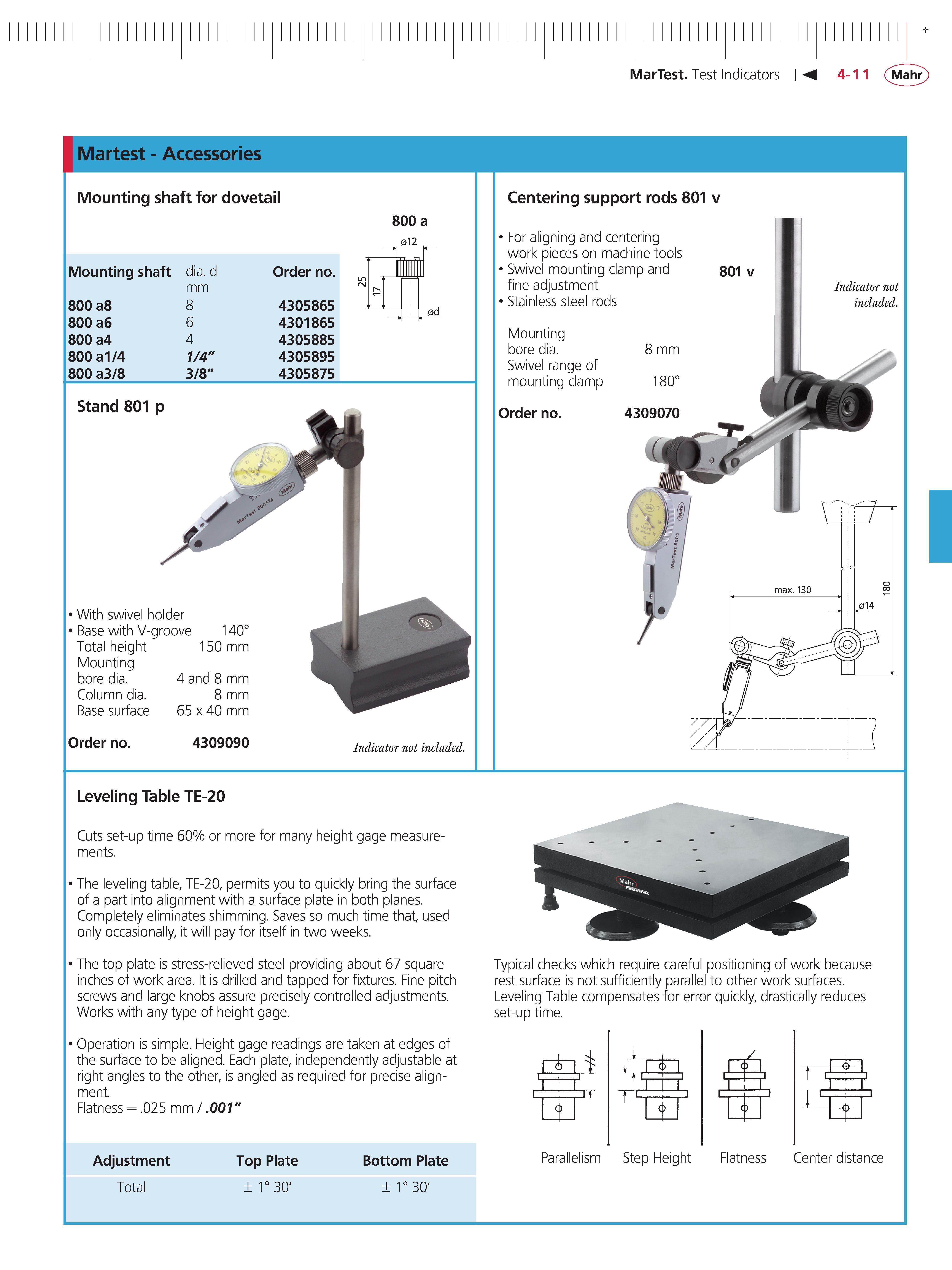

MarTest Test Indicators M 4-11 Mahr Martest - Accessories Mounting shaft for dovetail 800 a 012 Mounting shaft dia. d order no. mm 800 a8 8 4305865 800 a6 6 4301865 800 a4 4 4305885 800 a1 4 1 4" 4305895 800 a3 8 3 8" 4305875 0d Stand 801 p With swivel holder Base with V-groove Total height Mounting bore dia. Column dia. Base surface 140 150 mm order no. 4 and 8 mm 8 mm 65 x 40 mm 4309090 Indicator not included. Centering support rods 801 v For aligning and centering work pieces on machine tools Swivel mounting clamp and fine adjustment Stainless steel rods 801 v Indicator not included. Mounting bore dia. Swivel range of mounting clamp order no. 8 mm 180 4309070 Leveling Table TE-20 Cuts set-up time 60% or more for many height gage measurements. The leveling table TE-20 permits you to quickly bring the surface of a part into alignment with a surface plate in both planes. Completely eliminates shimming. Saves so much time that used only occasionally it will pay for itself in two weeks. The top plate is stress-relieved steel providing about 67 square inches of work area. It is drilled and tapped for fixtures. Fine pitch screws and large knobs assure precisely controlled adjustments. Works with any type of height gage. Operation is simple. Height gage readings are taken at edges of the surface to be aligned. Each plate independently adjustable at right angles to the other is angled as required for precise alignment. Flatness .025 mm .001" Typical checks which require careful positioning of work because rest surface is not sufficiently parallel to other work surfaces. Leveling Table compensates for error quickly drastically reduces set-up time. Adjustment Total Top Plate 1 30' Bottom Plate 1 30' Parallelism Step Height Flatness Center distance
