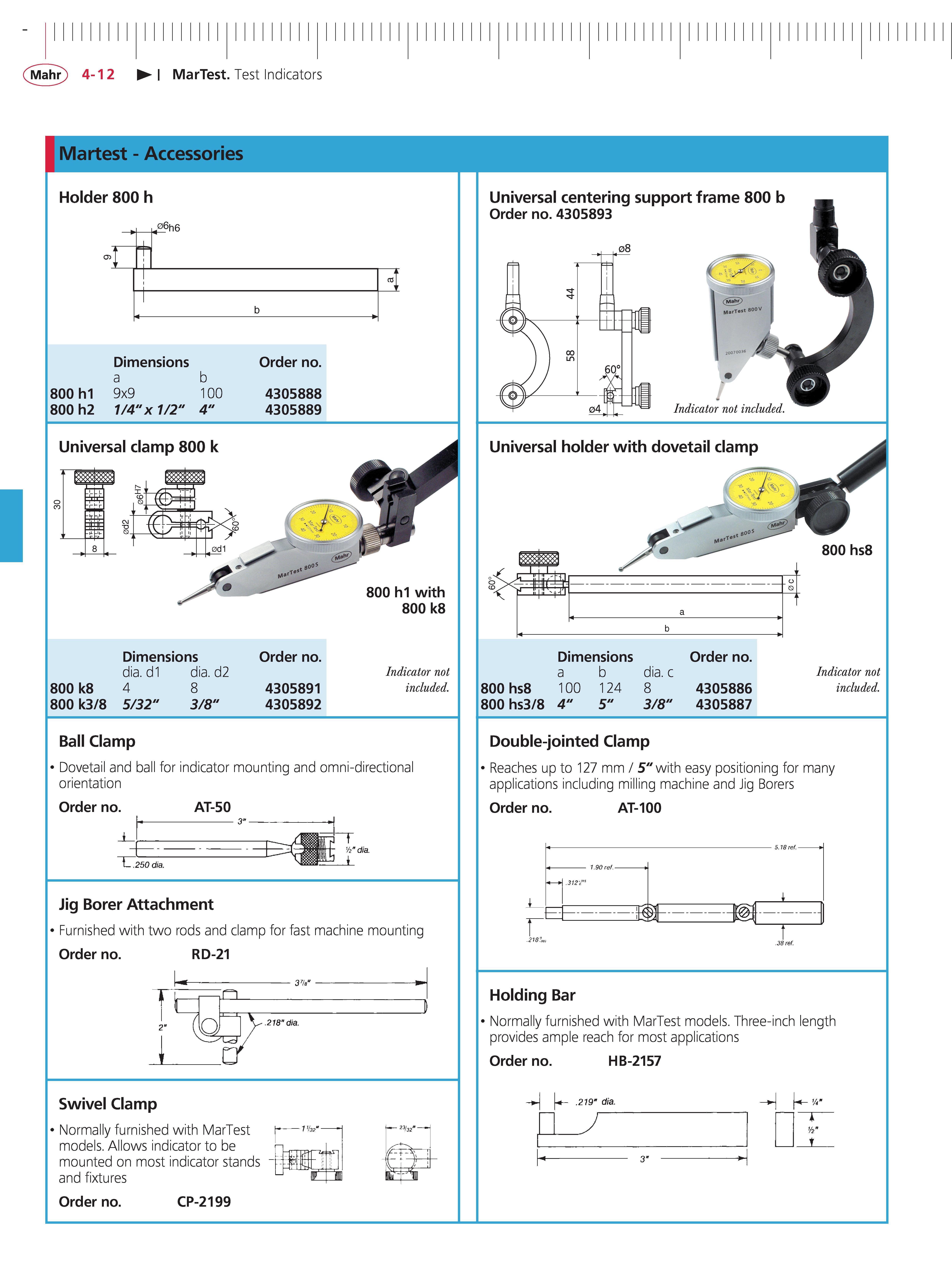

Mahr 4-12 MarTest Test Indicators Martest - Accessories Dimensions order no. a b 800 h1 9x9 100 4305888 800 h2 1 4" x 1 2" 4" 4305889 Holder 800 h 0h6 3 Universal clamp 800 k Dimensions order no. dia. d1 dia. d2 800 k8 4 8 4305891 800 k3 8 5 32" 3 8" 4305892 800 h1 with 800 k8 Indicator not included. Ball Clamp Dovetail and ball for indicator mounting and omni-directional orientation order no. AT-50 Jig Borer Attachment Furnished with two rods and clamp for fast machine mounting order no. RD-21 Swivel Clamp Normally furnished with MarTest models. Allows i ndicator to be mounted on most indicator stands and fixtures order no. CP-2199 Universal centering support frame 800 b order no.4305893 08 Indicator not included. Universal holder with dovetail clamp 800 hs8 Dimensions order no. a b dia. c 800 hs8 100 124 8 4305886 800 hs3 8 4" 5" 3 8" 4305887 Indicator not included. Double-jointed Clamp Reaches up to 127 mm 5" with easy positioning for many applications including milling machine and Jig Borers order no. AT-100 Holding Bar Normally furnished with MarTest models. Three-inch length provides ample reach for most applications order no. HB-2157 b
