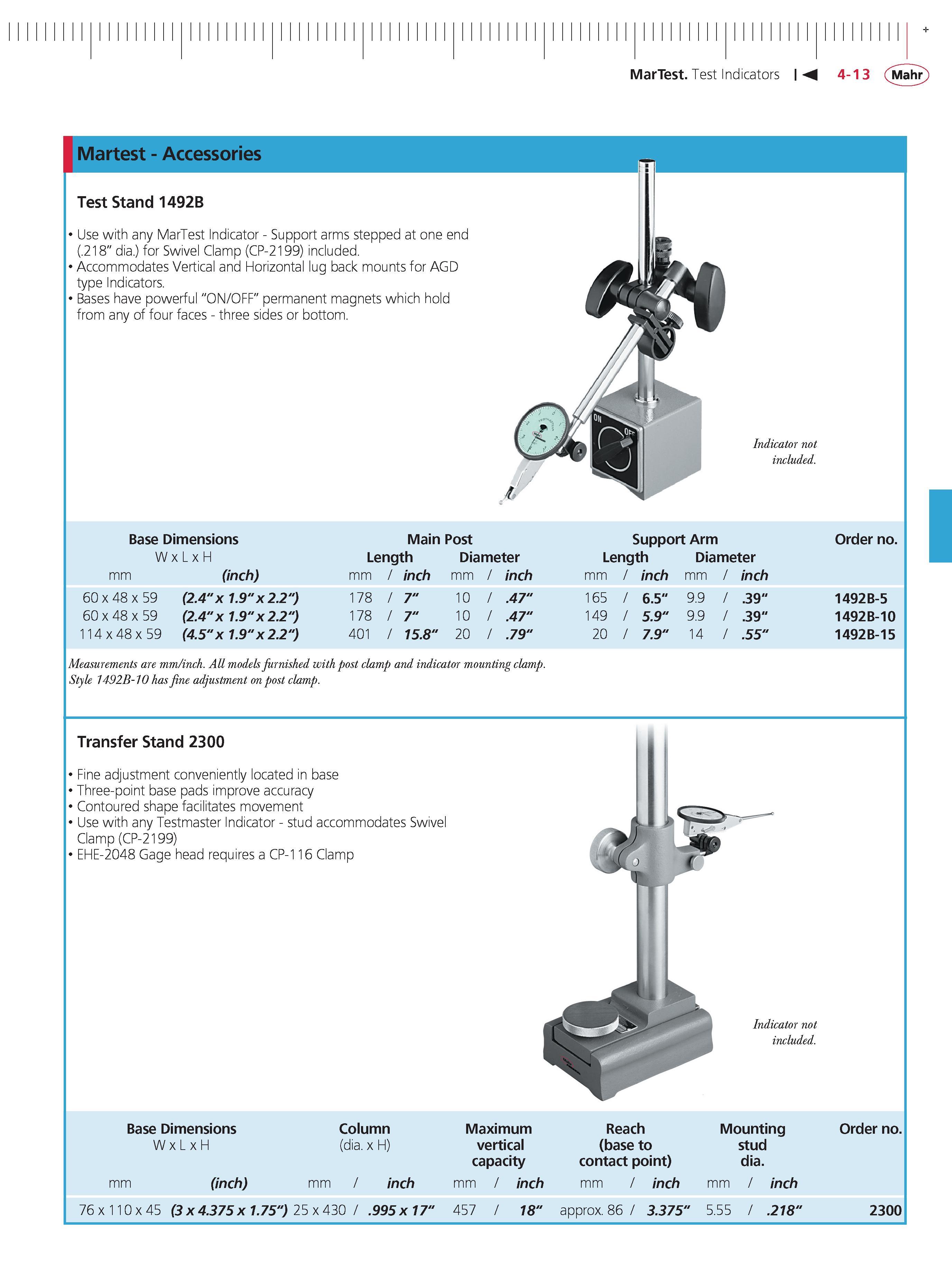

MarTest Test Indicators M 4-13 Mahr Martest - Accessories Test Stand 1492B Use with any MarTest Indicator - Support arms stepped at one end (.218" dia.) for Swivel Clamp (CP-2199) included. Accommodates Vertical and Horizontal lug back mounts for AGD type Indicators. Bases have powerful "ON/OFF" permanent magnets which hold from any of four faces - three sides or bottom. Main Post Support Arm order no. Length Diameter Length Diameter mm inch mm inch mm inch mm inch 178 7" 10 .47" 165 6.5" 9.9 .39" 1492B-5 178 7" 10 .47" 149 5.9" 9.9 .39" 1492B-10 401 15.8" 20 .79" 20 7.9" 14 .55" 1492B-15 Measurements are mm inch. All models furnished with post clamp and indicator mounting clamp. Style 1492B-10 has fine adjustment on post clamp. Transfer Stand 2300 Fine adjustment conveniently located in base Three-point base pads improve accuracy Contoured shape facilitates movement Use with any Testmaster Indicator - stud accommodates Swivel Clamp (CP-2199) EHE-2048 Gage head requires a CP-116 Clamp Base Dimensions Column Maximum Reach Mounting order no. W x L x H (dia. x H) vertical (base to stud capacity contact point) dia. mm (inch) mm inch mm inch mm inch mm inch 76 x 110 x 45 (3 x 4.375x 1.75") 25 x 430 .995x 17" 457 18" approx. 86 3.375" 5.55 .218" 2300 Base Dimensions W x L x H mm (inch) 60 x 48 x 59 (2.4" x 1.9" x 2.2") 60 x 48 x 59 (2.4" x 1.9" x 2.2") 114 x 48 x 59 (4.5" x 1.9" x 2.2")
