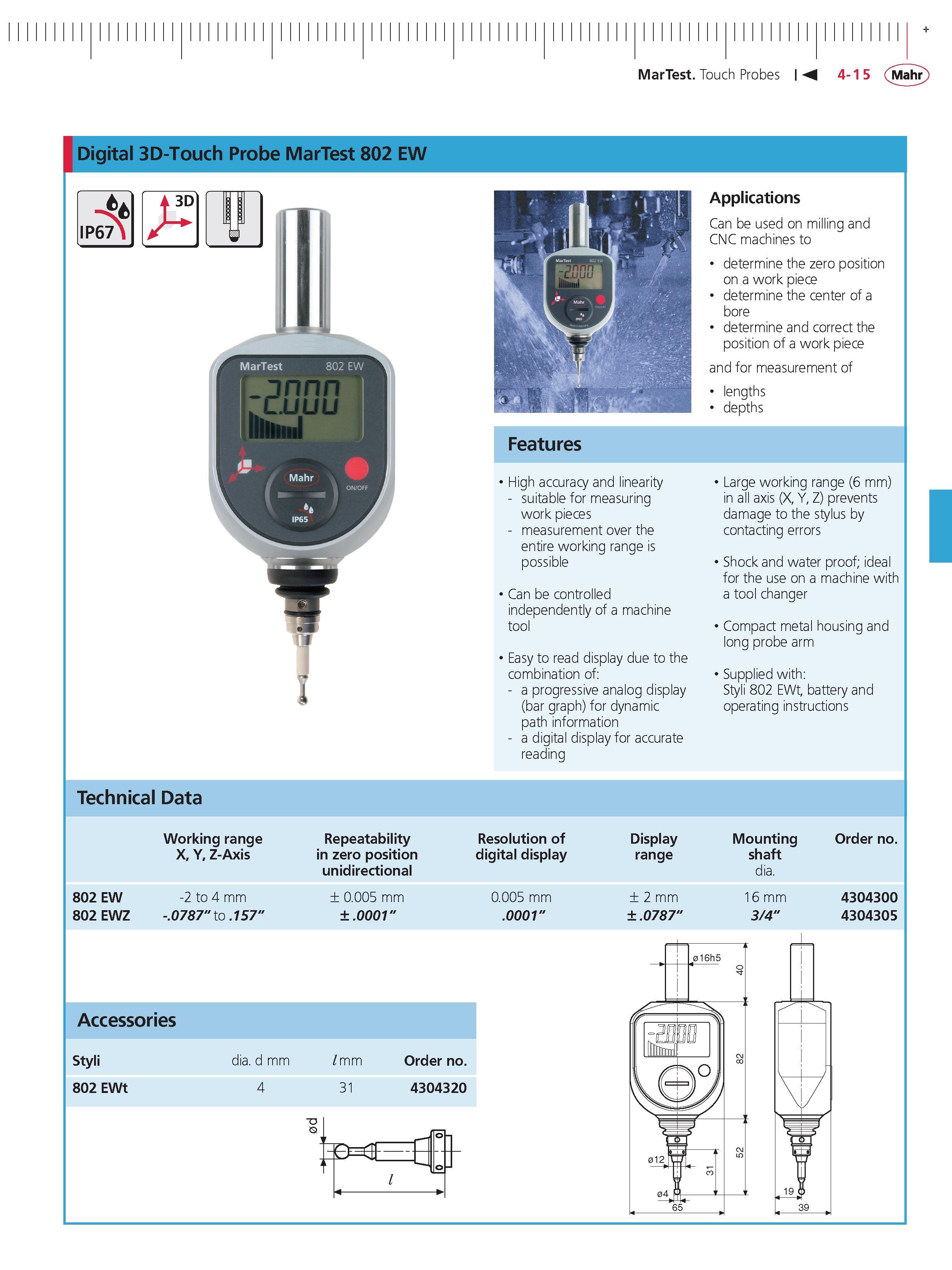

MarTest Touch Probes M 4-15 Mahr Digital 3D-Touch Probe MarTest 802 Ew h 3D IP67 Applications Can be used on milling and CNC machines to determine the zero position on a work piece determine the center of a bore determine and correct the position of a work piece and for measurement of lengths depths Features High accuracy and linearity - suitable for measuring work pieces - measurement over the entire working range is possible Can be controlled independently of a machine tool Easy to read display due to the combination of - a progressive analog display (bar graph) for dynamic path information - a digital display for accurate reading Large working range (6 mm) in all axis (X Y Z) prevents damage to the stylus by contacting errors Shock and water proof; ideal for the use on a machine with a tool changer Compact metal housing and long probe arm Supplied with Styli 802 EWt battery and operating instructions Technical Data working range X Y Z-Axis Repeatability in zero position unidirectional Resolution of digital display Display range Mounting shaft dia. order no. 802 Ew -2 to 4 mm 0.005 mm 0.005 mm 2 mm 16 mm 4304300 802 EwZ -.0787" to .157" .0001" .0001" .0787" 3 4" 4304305 Accessories Styli dia. d mm l mm order no. 802 Ewt 4 31 4304320 o Q 191 59 .
