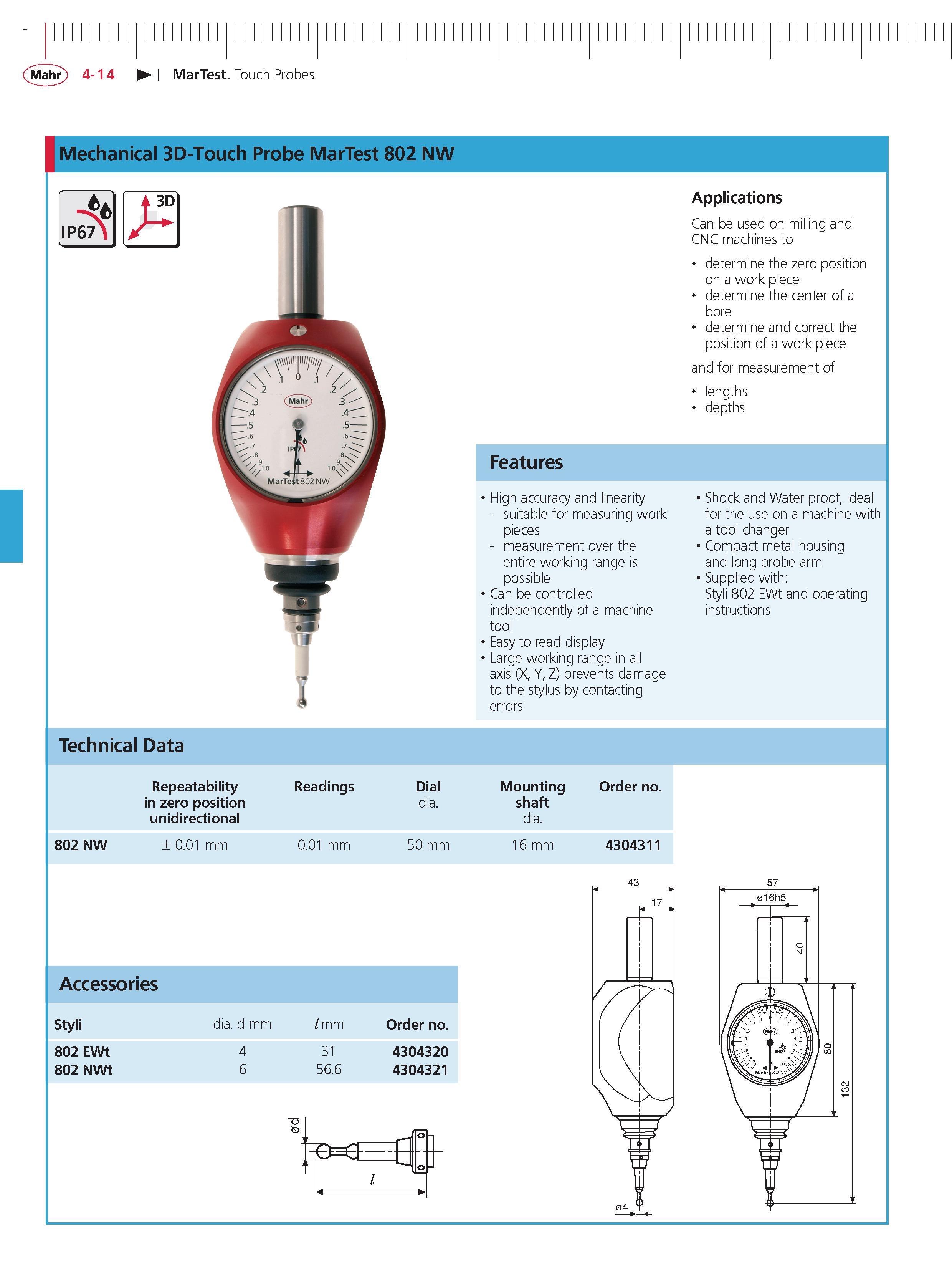

Mahr 4-14 MarTest Touch Probes Mechanical 3D-Touch Probe MarTest 802 NW 3D 67 Applications Can be used on milling and CNC machines to determine the zero position on a work piece determine the center of a bore determine and correct the position of a work piece and for measurement of lengths depths Features High accuracy and linearity - suitable for measuring work pieces - measurement over the entire working range is possible Can be controlled independently of a machine tool Easy to read display Large working range in all axis (X Y Z) prevents damage to the stylus by contacting errors Shock and Water proof ideal for the use on a machine with a tool changer Compact metal housing and long probe arm Supplied with Styli 802 EWt and operating instructions Technical Data Repeatability Readings Dial Mounting order no. in zero position dia. shaft unidirectional dia. 802 Nw 0.01 mm 0.01 mm 50 mm 16 mm 4304311 Accessories Styli dia. d mm l mm order no. 802 Ewt 4 31 4304320 802 Nwt 6 56.6 4304321
