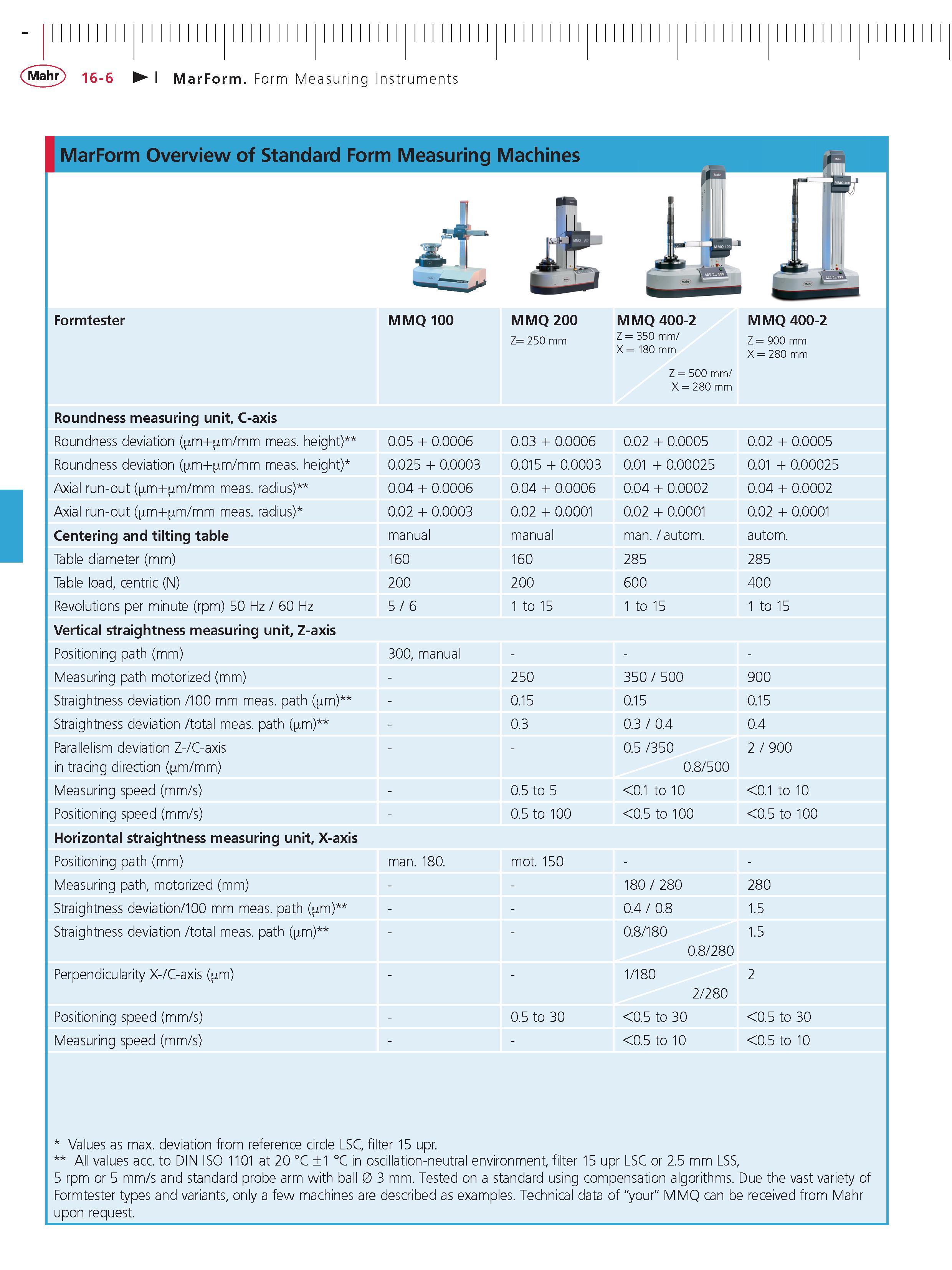

Mahr 16-6 MarForm Form Measuring Instruments Formtester MMQ 100 MMQ 200 Z 250 mm MMQ 400-2 Z 350 mm X 180 mm Z 500 mm X 280 mm MMQ 400-2 Z 900 mm X 280 mm Roundness measuring unit C-axis Roundness deviation ( m+ m mm meas. height) 0.05 + 0.0006 0.03 + 0.0006 0.02 + 0.0005 0.02 + 0.0005 Roundness deviation ( m+ m mm meas. height) 0.025 + 0.0003 0.015 + 0.0003 0.01 + 0.00025 0.01 + 0.00025 Axial run-out ( m+ m mm meas. radius) 0.04 + 0.0006 0.04 + 0.0006 0.04 + 0.0002 0.04 + 0.0002 Axial run-out ( m+ m mm meas. radius) 0.02 + 0.0003 0.02 + 0.0001 0.02 + 0.0001 0.02 + 0.0001 Centering and tilting table manual manual man. autom. autom. Table diameter (mm) 160 160 285 285 Table load centric (N) 200 200 600 400 Revolutions per minute (rpm) 50 Hz 60 Hz Vertical straightness measuring unit Z-axis 5 6 1 to 15 1 to 15 1 to 15 Positioning path (mm) 300 manual - Measuring path motorized (mm) - 250 350 500 900 Straightness deviation 100 mm meas. path ( .m) - 0.15 0.15 0.15 Straightness deviation total meas. path ( .m) - 0.3 0.3 0.4 0.4 Parallelism deviation Z- C-axis in tracing direction ( m mm) 0.5 350 0.8 500 2 900 Measuring speed (mm s) - 0.5 to 5 0.1 to 10 0.1 to 10 Positioning speed (mm s) Horizontal straightness measuring unit X-axis - 0.5 to 100 0.5 to 100 0.5 to 100 Positioning path (mm) man. 180. mot. 150 Measuring path motorized (mm) 180 280 280 Straightness deviation 100 mm meas. path ( m) 0.4 0.8 1.5 Straightness deviation total meas. path ( m) 0.8 180 0.8 280 1.5 Perpendicularity X- C-axis ( m) 1 180 2 280 2 Positioning speed (mm s) - 0.5 to 30 0.5 to 30 0.5 to 30 Measuring speed (mm s) 0.5 to 10 0.5 to 10 Values as max. deviation from reference circle LSC filter 15 upr. All values acc. to DIN ISO 1101 at 20 C 1 C in oscillation-neutral environment filter 15 upr LSC or 2.5 mm LSS 5 rpm or 5 mm s and standard probe arm with ball 0 3 mm. Tested on a standard using compensation algorithms. Due the vast variety of Formtester types and variants only a few machines are described as examples. Technical data of "your" MMQ can be received from Mahr upon request.
