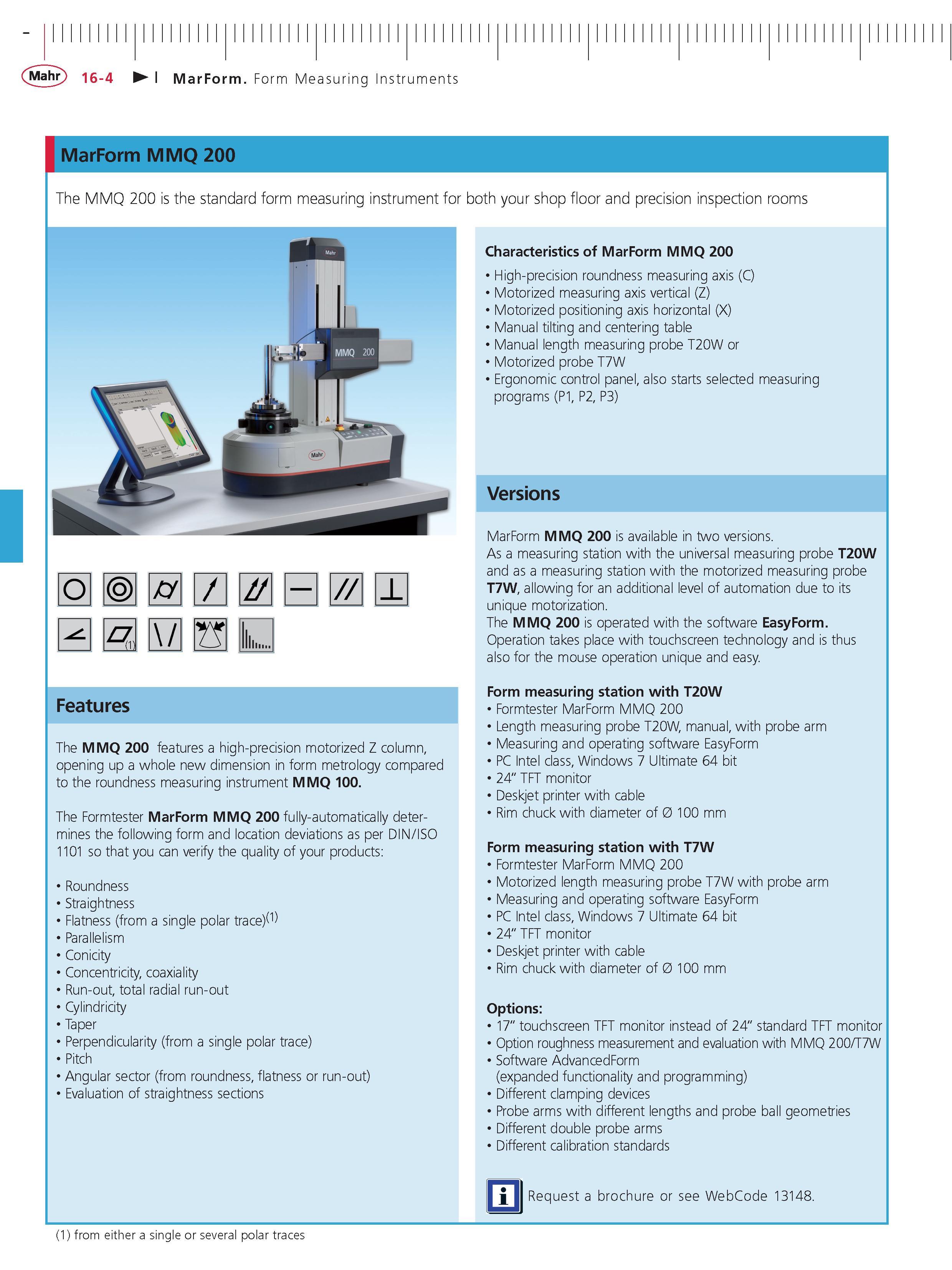

Mahr 16-4 MarForm Form Measuring Instruments MarForm MMQ 200 The MMQ 200 is the standard form measuring instrument for both your shop floor and precision inspection rooms Characteristics of MarForm MMQ 200 High-precision roundness measuring axis (C) Motorized measuring axis vertical (Z) Motorized positioning axis horizontal (X) Manual tilting and centering table Manual length measuring probe T20W or Motorized probe T7W Ergonomic control panel also starts selected measuring programs (P1 P2 P3) O & M TS I . Features The MMQ 200 features a high-precision motorized Z column opening up a whole new dimension in form metrology compared to the roundness measuring instrument MMQ 100. The Formtester MarForm MMQ 200 fully-automatically determines the following form and location deviations as per DIN ISO 1101 so that you can verify the quality of your products Roundness Straightness Flatness (from a single polar trace)(1) Parallelism Conicity Concentricity coaxiality Run-out total radial run-out Cylindricity Taper Perpendicularity (from a single polar trace) Pitch Angular sector (from roundness flatness or run-out) Evaluation of straightness sections Versions MarForm MMQ 200 is available in two versions. As a measuring station with the universal measuring probe T20W and as a measuring station with the motorized measuring probe T7W allowing for an additional level of automation due to its unique motorization. The MMQ 200 is operated with the software EasyForm. Operation takes place with touchscreen technology and is thus also for the mouse operation unique and easy. Form measuring station with T20W Formtester MarForm MMQ 200 Length measuring probe T20W manual with probe arm Measuring and operating software EasyForm PC Intel class Windows 7 Ultimate 64 bit 24" TFT monitor Deskjet printer with cable Rim chuck with diameter of 0 100 mm Form measuring station with T7W Formtester MarForm MMQ 200 Motorized length measuring probe T7W with probe arm Measuring and operating software EasyForm PC Intel class Windows 7 Ultimate 64 bit 24" TFT monitor Deskjet printer with cable Rim chuck with diameter of 0 100 mm Options 17" touchscreen TFT monitor instead of 24" standard TFT monitor Option roughness measurement and evaluation with MMQ 200 T7W Software AdvancedForm (expanded functionality and programming) Different clamping devices Probe arms with different lengths and probe ball geometries Different double probe arms Different calibration standards Request a brochure or see WebCode 13148. (1) from either a single or several polar traces
