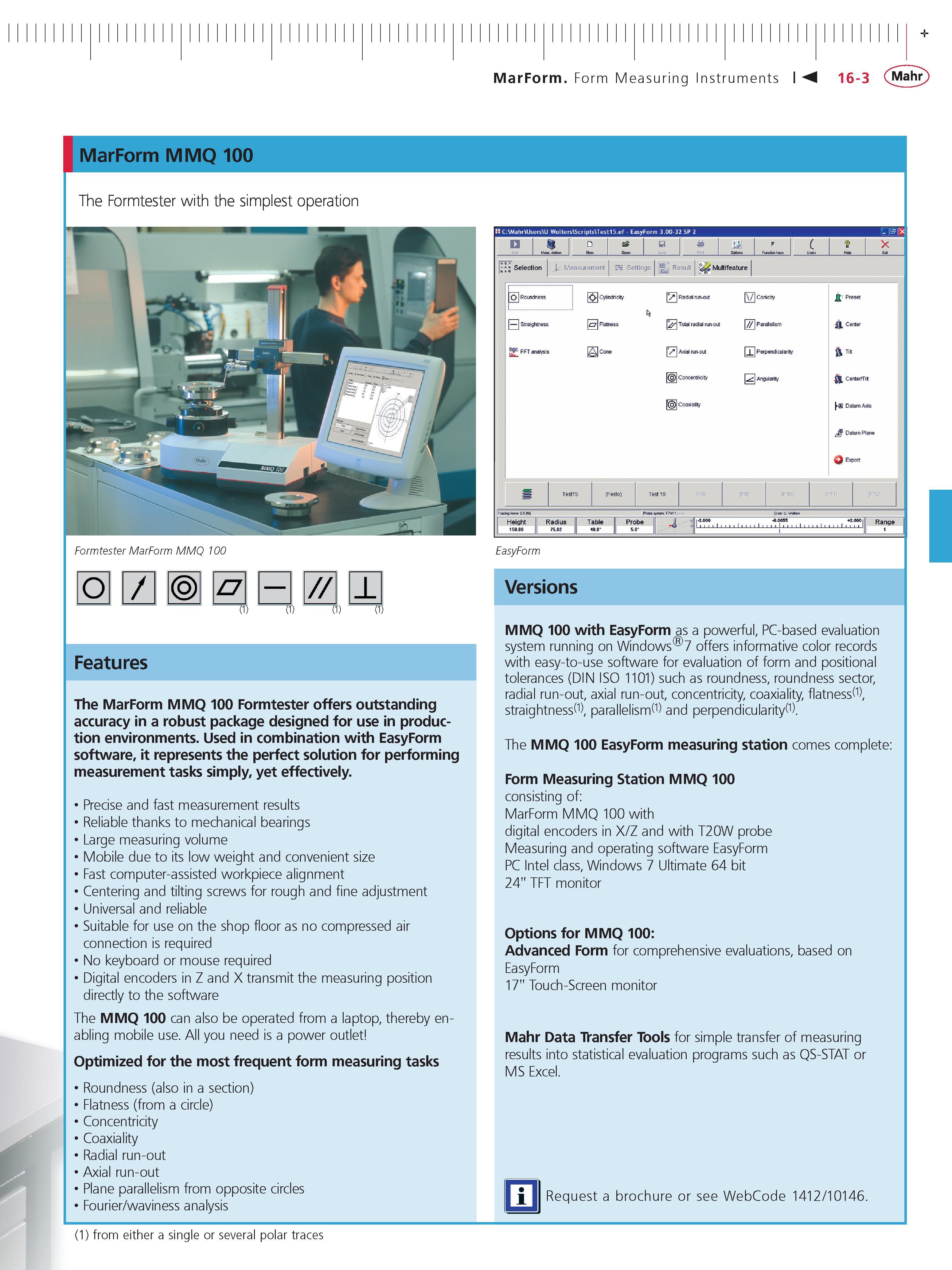

MarForm Form Measuring Instruments 16-3 Mahr MarForm MMQ 100 The Formtester with the simplest operation Formtester MarForm MMQ 100 o Features The MarForm MMQ 100 Formtester offers outstanding accuracy in a robust package designed for use in production environments. Used in combination with EasyForm software it represents the perfect solution for performing measurement tasks simply yet effectively. Precise and fast measurement results Reliable thanks to mechanical bearings Large measuring volume Mobile due to its low weight and convenient size Fast computer-assisted workpiece alignment Centering and tilting screws for rough and fine adjustment Universal and reliable Suitable for use on the shop floor as no compressed air connection is required No keyboard or mouse required Digital encoders in Z and X transmit the measuring position directly to the software The MMQ 100 can also be operated from a laptop thereby enabling mobile use. All you need is a power outlet Optimized for the most frequent form measuring tasks Roundness (also in a section) Flatness (from a circle) Concentricity Coaxiality Radial run-out Axial run-out Plane parallelism from opposite circles Fourier waviness analysis IBS Selection L Measurement 9 Settings Result Multifeature q Roundness Cylindricity V11 Radial run-out 7 Conicity JJ Preset Straightness cj Flatness l l Total radial run-out Parallelism 41 Center j" 1 FFT analysis Cone I' 311 Axial run-out Perpendicularity Concentricity - Angularity -jjj. CenteriTilt j Coa 8lity -0 Datum Axis Datum Plane ) Export TesM5 (Festo) Test 16 (F11) (F12) Ob 1111111 EasyForm Versions MMQ 100 with EasyForm as a powerful PC-based evaluation system running on Windows 7 offers informative color records with easy-to-use software for evaluation of form and positional tolerances (DIN ISO 1101) such as roundness roundness sector radial run-out axial run-out concentricity coaxiality flatness(1) straightness(1) parallelism(1) and perpendicularity1. The MMQ 100 EasyForm measuring station comes complete Form Measuring Station MMQ 100 consisting of MarForm MMQ 100 with digital encoders in X Z and with T20W probe Measuring and operating software EasyForm PC Intel class Windows 7 Ultimate 64 bit 24 TFT monitor Options for MMQ 100 Advanced Form for comprehensive evaluations based on EasyForm 17 Touch-Screen monitor Mahr Data Transfer Tools for simple transfer of measuring results into statistical evaluation programs such as QS-STAT or MS Excel. m Request a brochure or see WebCode 1412 10146. (1) (1) (1 (1) from either a single or several polar traces
