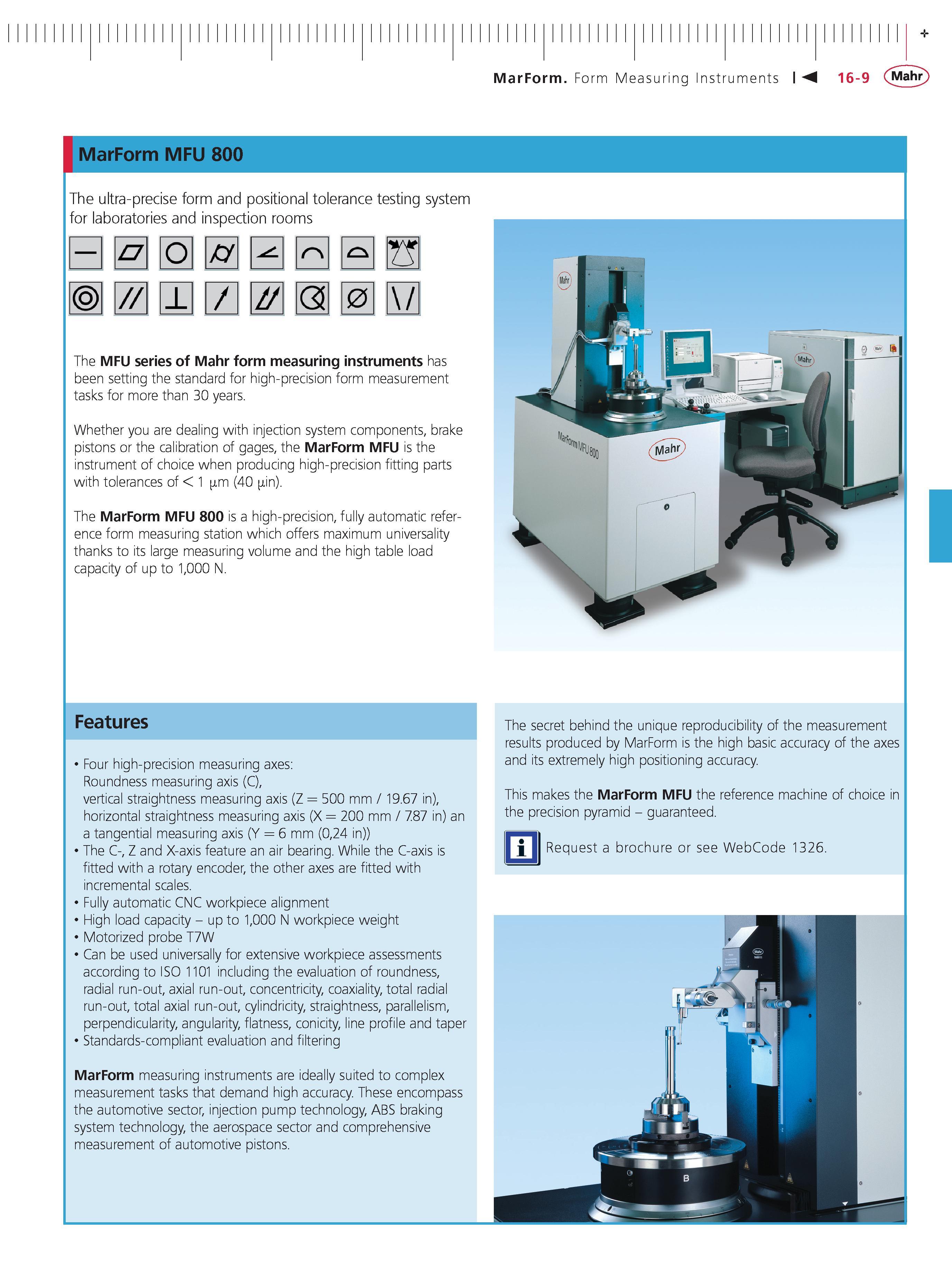

MarForm Form Measuring Instruments M 16-9 Mahr MarForm MFU 800 The ultra-precise form and positional tolerance testing system for laboratories and inspection rooms 3 0 The MFU series of Mahr form measuring instruments has been setting the standard for high-precision form measurement tasks for more than 30 years. Whether you are dealing with injection system components brake pistons or the calibration of gages the MarForm MFU is the instrument of choice when producing high-precision fitting parts with tolerances of 1 m (40 .in). The MarForm MFU 800 is a high-precision fully automatic reference form measuring station which offers maximum universality thanks to its large measuring volume and the high table load capacity of up to 1000 N. Features Four high-precision measuring axes Roundness measuring axis (C) vertical straightness measuring axis (Z 500 mm 19.67 in) horizontal straightness measuring axis (X 200 mm 7.87 in) an a tangential measuring axis (Y 6 mm (024 in)) The C- Z and X-axis feature an air bearing. While the C-axis is fitted with a rotary encoder the other axes are fitted with incremental scales. Fully automatic CNC workpiece alignment High load capacity - up to 1000 N workpiece weight Motorized probe T7W Can be used universally for extensive workpiece assessments according to ISO 1101 including the evaluation of roundness radial run-out axial run-out concentricity coaxiality total radial run-out total axial run-out cylindricity straightness parallelism perpendicularity angularity flatness conicity line profile and taper Standards-compliant evaluation and filtering MarForm measuring instruments are ideally suited to complex measurement tasks that demand high accuracy. These encompass the automotive sector injection pump technology ABS braking system technology the aerospace sector and comprehensive measurement of automotive pistons. The secret behind the unique reproducibility of the measurement results produced by MarForm is the high basic accuracy of the axes and its extremely high positioning accuracy. This makes the MarForm MFU the reference machine of choice in the precision pyramid - guaranteed. Request a brochure or see WebCode 1326.
