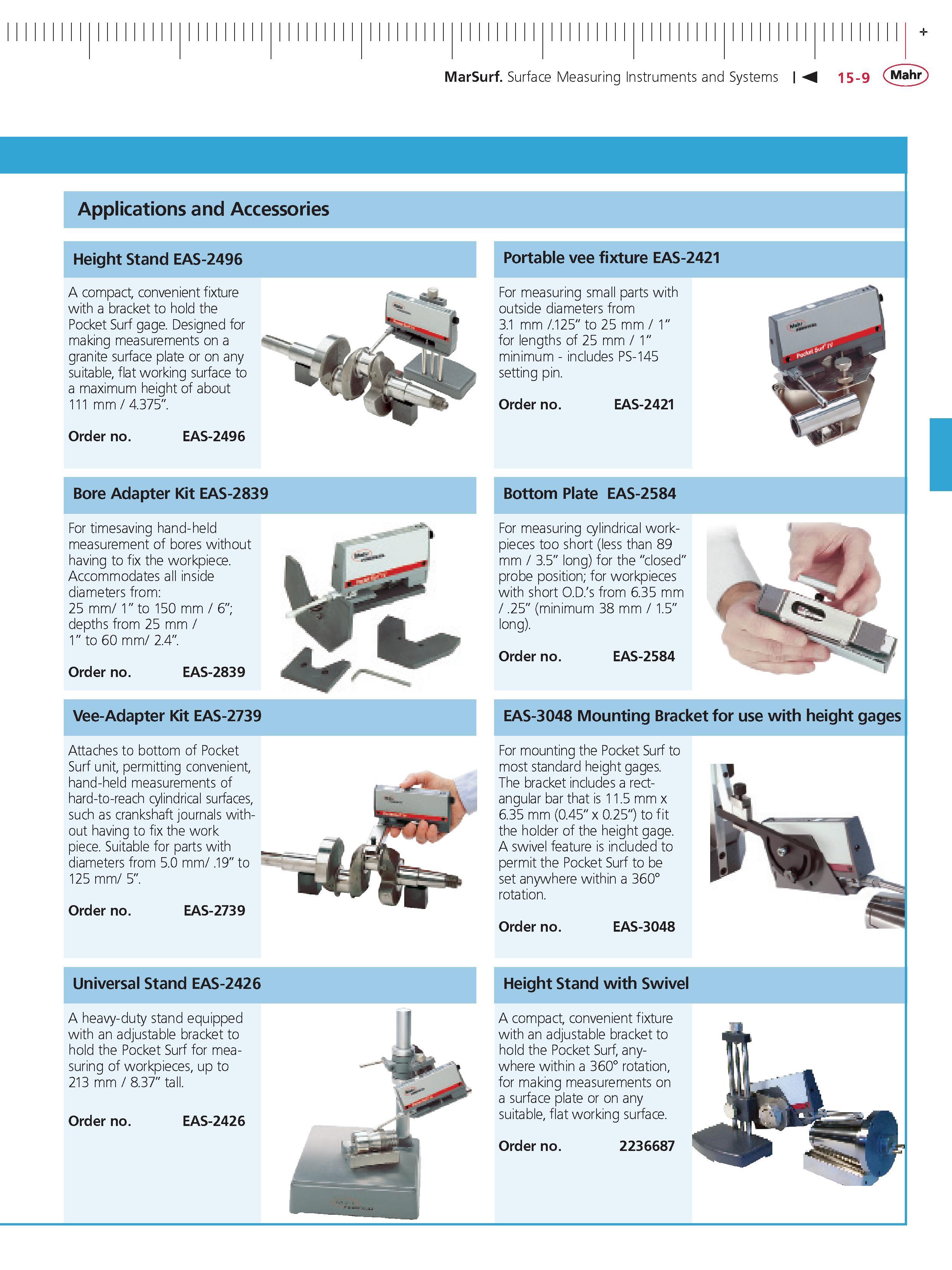

MarSurf Surface Measuring Instruments and Systems 15-9 Mahr + Applications and Accessories Height Stand EAS-2496 A compact convenient fixture with a bracket to hold the Pocket Surf gage. Designed for making measurements on a granite surface plate or on any suitable flat working surface to a maximum height of about 111 mm 4.375". order no. EAS-2496 Bore adapter Kit EAS-2839 For timesaving hand-held measurement of bores without having to fix the workpiece. Accommodates all inside diameters from 25 mm 1" to 150 mm 6"; depths from 25 mm 1" to 60 mm 2.4". order no. EAS-2839 Vee-Adapter Kit EAS-2739 Attaches to bottom of Pocket Surf unit permitting convenient hand-held measurements of hard-to-reach cylindrical surfaces such as crankshaft journals without having to fix the work piece. Suitable for parts with diameters from 5.0 mm .19" to 125 mm 5". order no. EAS-2739 Universal Stand EAS-2426 A heavy-duty stand equipped with an adjustable bracket to hold the Pocket Surf for measuring of workpieces up to 213 mm 8.37" tall. order no. EAS-2426 Portable vee fixture EAS-2421 For measuring small parts with outside diameters from 3.1 mm .125" to 25 mm 1" for lengths of 25 mm 1" minimum - includes PS-145 setting pin. order no. EAS-2421 Bottom Plate EAS-2584 For measuring cylindrical workpieces too short (less than 89 mm 3.5" long) for the "closed probe position; for workpieces with short O.D.'s from 6.35 mm .25" (minimum 38 mm 1.5" long). order no. EAS-2584 EAS-3048 Mounting Bracket for use with height gages For mounting the Pocket Surf to most standard height gages. The bracket includes a rectangular bar that is 11.5 mm x 6.35 mm (0.45" x 0.25") to fit the holder of the height gage. A swivel feature is included to permit the Pocket Surf to be set anywhere within a 360 rotation. order no. EAS-3048 Height Stand with Swivel A compact convenient fixture with an adjustable bracket to hold the Pocket Surf anywhere within a 360 rotation for making measurements on a surface plate or on any suitable flat working surface. order no. 2236687
