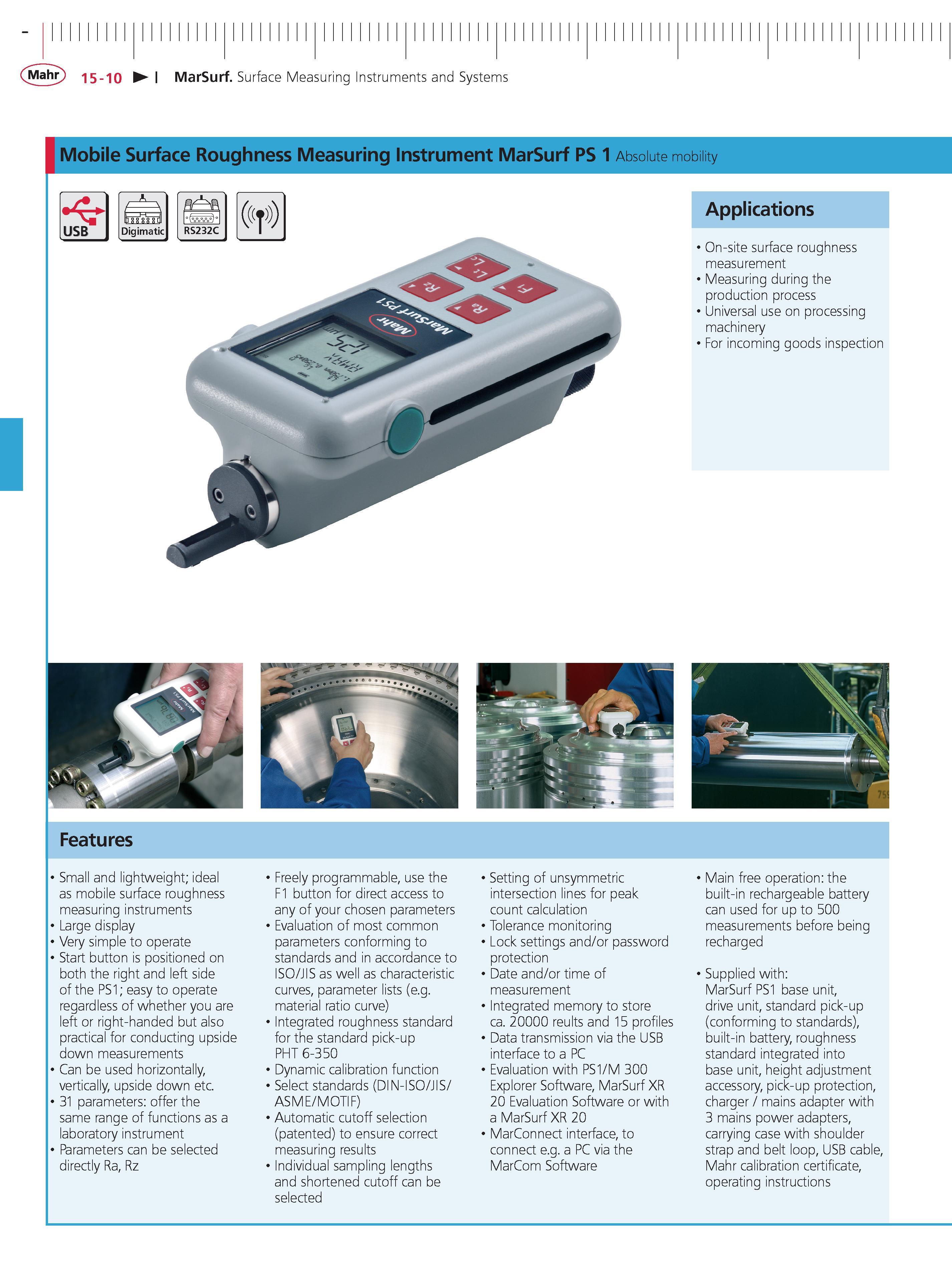

Mahr 15-10 MarSurf Surface Measuring Instruments and Systems Mobile Surface Roughness Measuring Instrument MarSurf PS 1 Absolute mobility V USB Applications On-site surface roughness measurement Measuring during the production process Universal use on processing machinery For incoming goods inspection Small and lightweight; ideal as mobile surface roughness measuring instruments Large display Very simple to operate Start button is positioned on both the right and left side of the pS1; easy to operate regardless of whether you are left or right-handed but also practical for conducting upside down measurements Can be used horizontally vertically upside down etc. 31 parameters offer the same range of functions as a laboratory instrument Parameters can be selected directly Ra Rz Freely programmable use the F1 button for direct access to any of your chosen parameters Evaluation of most common parameters conforming to standards and in accordance to ISO JIS as well as characteristic curves parameter lists (e.g. material ratio curve) Integrated roughness standard for the standard pick-up pHT 6-350 Dynamic calibration function Select standards (DIN-ISO JIS ASME MOTIF) Automatic cutoff selection (patented) to ensure correct measuring results Individual sampling lengths and shortened cutoff can be selected Setting of unsymmetric intersection lines for peak count calculation Tolerance monitoring Lock settings and or password protection Date and or time of measurement Integrated memory to store ca. 20000 reults and 15 profiles Data transmission via the USB interface to a pC Evaluation with PS1 M 300 explorer Software MarSurf XR 20 evaluation Software or with a MarSurf XR 20 MarConnect interface to connect e.g. a pC via the MarCom Software Main free operation the built-in rechargeable battery can used for up to 500 measurements before being recharged Supplied with MarSurf pS1 base unit drive unit standard pick-up (conforming to standards) built-in battery roughness standard integrated into base unit height adjustment accessory pick-up protection charger mains adapter with 3 mains power adapters carrying case with shoulder strap and belt loop USB cable Mahr calibration certificate operating instructions
