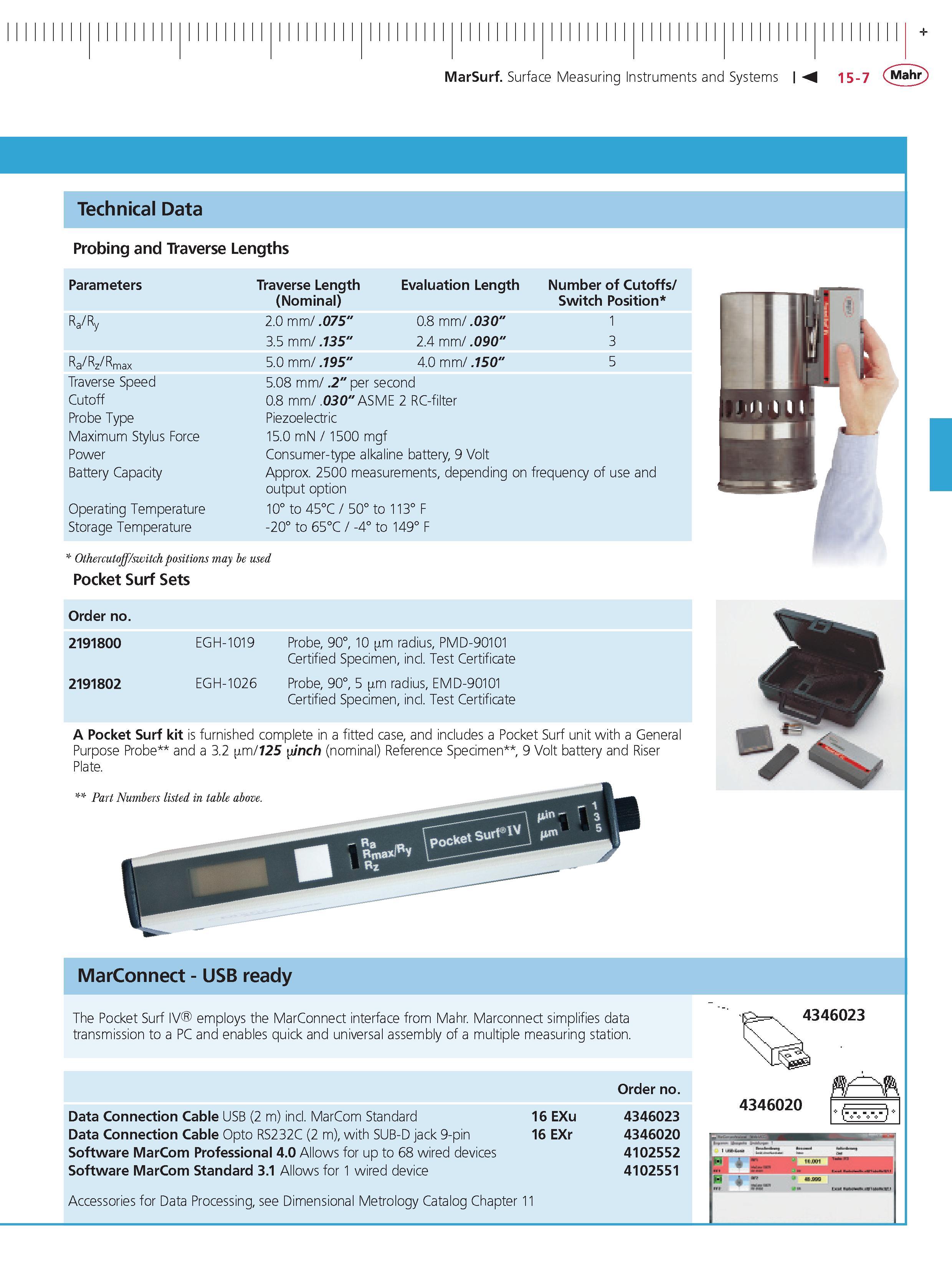

Technical Data Probing and Traverse Lengths Parameters traverse Length evaluation Length Number of Cutoffs (Nominal) Switch Position Ra Ry 2.0 mm .075" 0.8 mm .030" 1 3.5 mm .135" 2.4 mm .090" 3 Ra Rz Rmax 5.0 mm .195" 4.0 mm .150" 5 Traverse Speed 5.08 mm .2" per second Cutoff 0.8 mm .030"ASME 2 RC-filter Probe Type Piezoelectric Maximum Stylus Force 15.0 mN 1500 mgf Power Consumer-type alkaline battery 9 Volt Battery Capacity Approx. 2500 measurements depending on frequency of use and output option Operating Temperature 10 to 45C 50 to 113 F Storage Temperature -20 to 65C -4 to 149 F Othercutoff switch positions may be used Pocket Surf Sets Order no. 2191800 2191802 EGH-1019 EGH-1026 Probe 90 10 pm radius PMD-90101 Certified Specimen incl. Test Certificate Probe 90 5 pm radius EMD-90101 Certified Specimen incl. Test Certificate A Pocket Surf kit is furnished complete in a fitted case and includes a Pocket Surf unit with a General Purpose Probe and a 3.2 pm 125 yjnch (nominal) Reference Specimen 9 Volt battery and Riser Plate. Part Numbers listed in table above. MarConnect - USB ready The Pocket Surf IV employs the MarConnect interface from Mahr Marconnect simplifies data transmission to a PC and enables quick and universal assembly of a multiple measuring station. data Connection Cable USB (2 m) incl. MarCom Standard data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Software MarCom Professional 4.0 Allows for up to 68 wired devices Software MarCom Standard 3.1 Allows for 1 wired device 16 EXu 16 eXr order no. 4346023 4346020 4102552 4102551 Accessories for Data Processing see Dimensional Metrology Catalog Chapter 11 4346023 4346020
