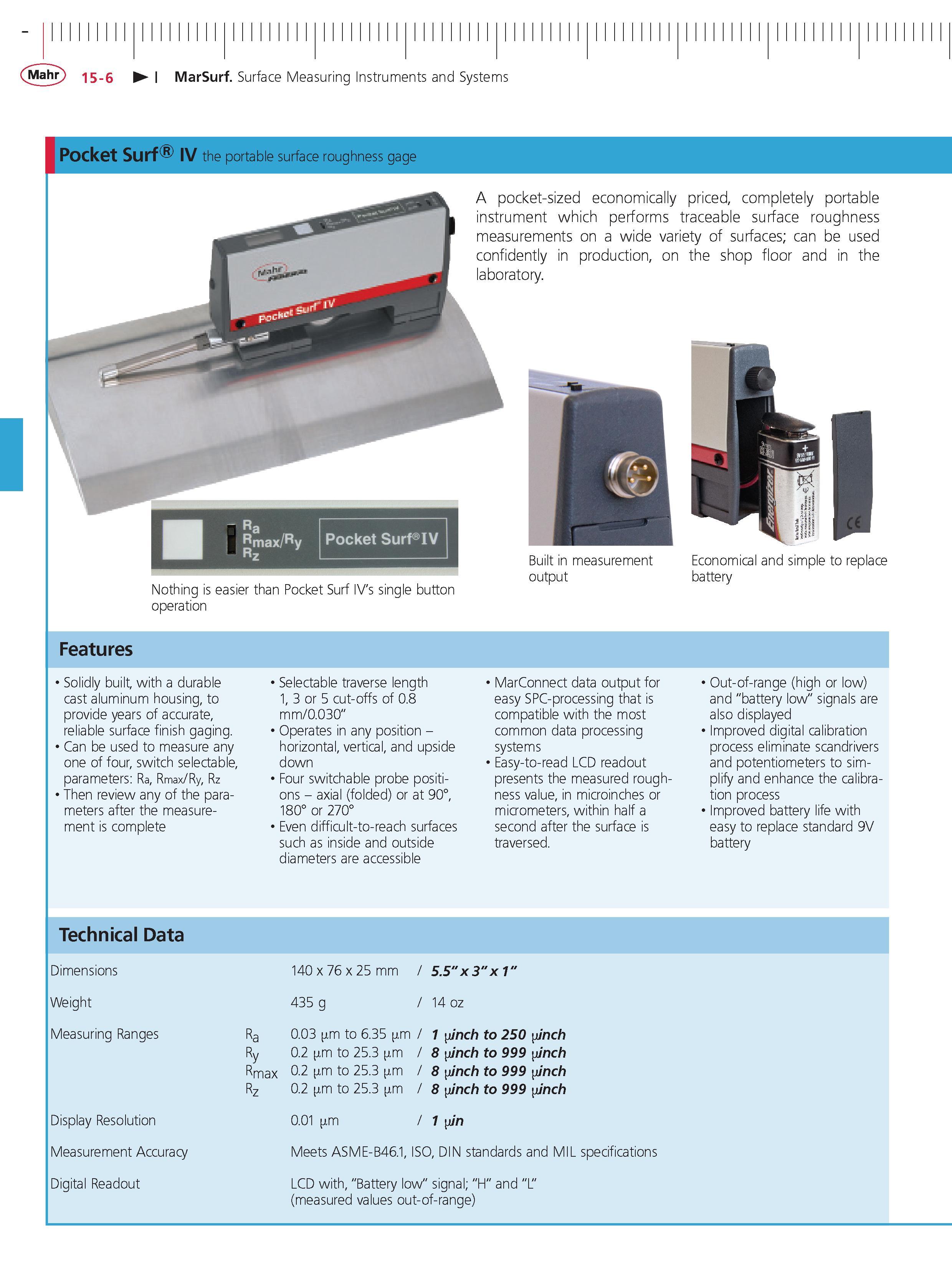

Mahr 15-6 MarSurf Surface Measuring Instruments and Systems Pocket Surf IV the portable surface roughness gage max Ry Pocket Surf IV Nothing is easier than pocket Surf IV's single button operation A pocket-sized economically priced completely portable instrument which performs traceable surface roughness measurements on a wide variety of surfaces; can be used confidently in production on the shop floor and in the laboratory. Built in measurement output Economical and simple to replace battery Features Solidly built with a durable cast aluminum housing to provide years of accurate reliable surface finish gaging. Can be used to measure any one of four switch selectable parameters Ra Rmax Ry Rz Then review any of the parameters after the measurement is complete Selectable traverse length 1 3 or 5 cut-offs of 0.8 mm 0.030" Operates in any position -horizontal vertical and upside down Four switchable probe positions - axial (folded) or at 90 180 or 270 Even difficult-to-reach surfaces such as inside and outside diameters are accessible MarConnect data output for easy SpC-processing that is compatible with the most common data processing systems Easy-to-read LCD readout presents the measured roughness value in microinches or micrometers within half a second after the surface is traversed. Out-of-range (high or low) and "battery low" signals are also displayed Improved digital calibration process eliminate scandrivers and potentiometers to simplify and enhance the calibration process Improved battery life with easy to replace standard 9V battery technical Data Dimensions 140 x 76 x 25 mm 5.5" x 3" x 1" Weight 435 g 14 oz Measuring Ranges Ra 0.03 m to 6.35 m ch 50 2 to ch Jn 1 Ry 0.2 m to 25.3 m 8 dnch to 999 dnch Rmax m .3 5. 2 o t m .2 0 ch Jn 9 9 9 to h c Jn 8 Rz m .3 5. 2 o t m .2 0 8 dnch to 999 unch Display Resolution 0.01 m 1 dn Measurement Accuracy Meets ASME-B46.1 ISO DIN standards and MIL specifications Digital Readout LCD with "Battery low" signal; "H" and "L" (measured values out-of-range)
