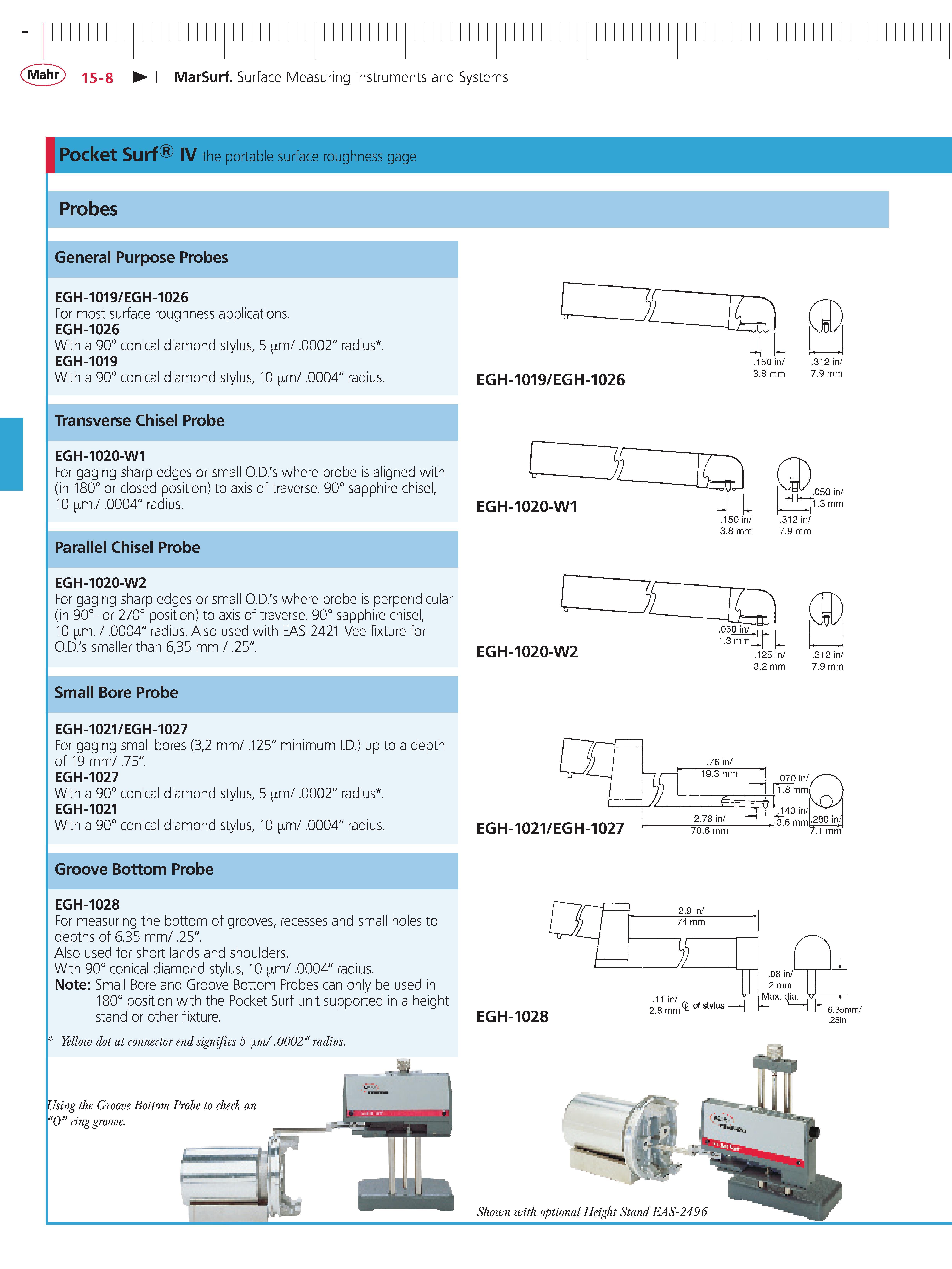

Mahr 15-8 MarSurf Surface Measuring Instruments and Systems Pocket Surf IV the portable surface roughness gage Probes General Purpose Probes EGH-1019 EGH-1026 For most surface roughness applications. EGH-1026 With a 90 conical diamond stylus 5 m .0002" radius . EGH-1019 With a 90 conical diamond stylus 10 m .0004" radius. Transverse Chisel Probe EGH-1020-W1 For gaging sharp edges or small O.D.'s where probe is aligned with (in 180 or closed position) to axis of traverse. 90 sapphire chisel 10 m. .0004" radius. Parallel Chisel Probe EGH-1020-W2 For gaging sharp edges or small O.D.'s where probe is perpendicular (in 90- or 270 position) to axis of traverse. 90 sapphire chisel 10 m. .0004" radius. Also used with EAS-2421 Vee fixture for O.D.'s smaller than 635 mm .25". Small Bore Probe EGH-1019 EGH-1026 -11 .150 in 3.8 mm M .312 in 7.9 mm EGH-1020-W1 .150 in 3.8 mm .050 in 1.3 mm .312 in 7.9 mm EGH-1020-W2 .050 in 1 1.3 mmfcj .125 in 3.2 mm .312 in 7.9 mm EGH-1021 EGH-1027 For gaging small bores (32 mm .125" minimum I.D.) up to a depth of 19 mm .75". EGH-1027 With a 90 conical diamond stylus 5 m .0002" radius . EGH-1021 With a 90 conical diamond stylus 10 m .0004" radius. EGH-1021 EGH-1027 70.6 mm Groove Bottom Probe EGH-1028 For measuring the bottom of grooves recesses and small holes to depths of 6.35 mm .25". Also used for short lands and shoulders. With 90 conical diamond stylus 10 m .0004" radius. Note Small Bore and Groove Bottom Probes can only be used in 180 position with the Pocket Surf unit supported in a height stand or other fixture. ' Yellow dot at connector end signifies 5 im .0002 radius. Using the Groove Bottom Probe to check an O ring groove. m Shown with optional Height Stand EAS-2496
