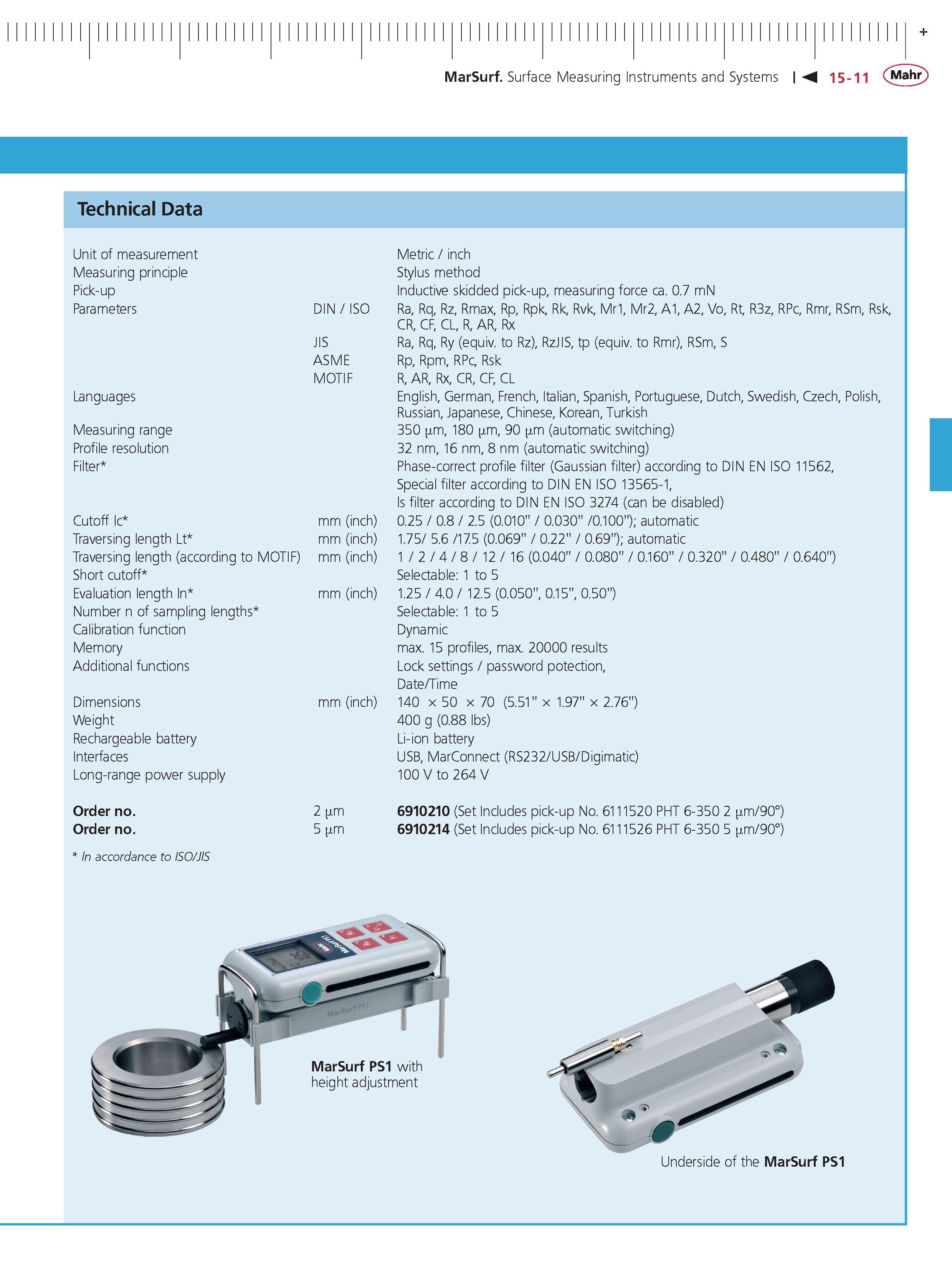

MarSurf Surface Measuring Instruments and Systems 15-11 Mahr + Technical Data Unit of measurement Measuring principle Pick-up Parameters Languages Measuring range Profile resolution Filter Cutoff lc Traversing length Lt Traversing length (according to MOTIF) Short cutoff Evaluation length ln Number n of sampling lengths Calibration function Memory Additional functions Dimensions Weight Rechargeable battery Interfaces Long-range power supply Metric inch Stylus method Inductive skidded pick-up measuring force ca. 0.7 mN DIN ISO Ra Rq Rz Rmax Rp Rpk Rk Rvk Mr1 Mr2 A1 A2 Vo Rt R3z RPc Rmr RSm Rsk CR CF CL R AR Rx JIS Ra Rq Ry (equiv. to Rz) RzJIS tp (equiv. to Rmr) RSm S ASME Rp Rpm RPc Rsk MOTIF R AR Rx CR CF CL English German French Italian Spanish Portuguese Dutch Swedish Czech Polish Russian Japanese Chinese Korean Turkish 350 m 180 m 90 m (automatic switching) 32 nm 16 nm 8 nm (automatic switching) Phase-correct profile filter (Gaussian filter) according to DIN EN ISO 11562 Special filter according to DIN EN ISO 13565-1 ls filter according to DIN EN ISO 3274 (can be disabled) mm (inch) 0.25 0.8 2.5 (0.010" 0.030" 0.100"); automatic mm (inch) 1.75 5.6 17.5 (0.069" 0.22" 0.69"); automatic mm (inch) 1 2 4 8 12 16 (0.040" 0.080" 0.160" 0.320" 0.480" 0.640") Selectable 1 to 5 mm (inch) 1.25 4.0 12.5 (0.050" 0.15" 0.50") Selectable 1 to 5 Dynamic max. 15 profiles max. 20000 results Lock settings password potection Date Time mm (inch) 140 x 50 x 70 (5.51" x 1.97" x 2.76") 400 g (0.88 lbs) Li-ion battery USB MarConnect (RS232 USB Digimatic) 100 V to 264 V Order no. Order no. In accordance to ISO JIS 2 m 6910210 (Set Includes pick-up No. 6111520 PHT 6-350 2 m 90) 5 m 6910214 (Set Includes pick-up No. 6111526 PHT 6-350 5 m 90) MarSurf PS1 with height adjustment Underside of the MarSurf PS1
