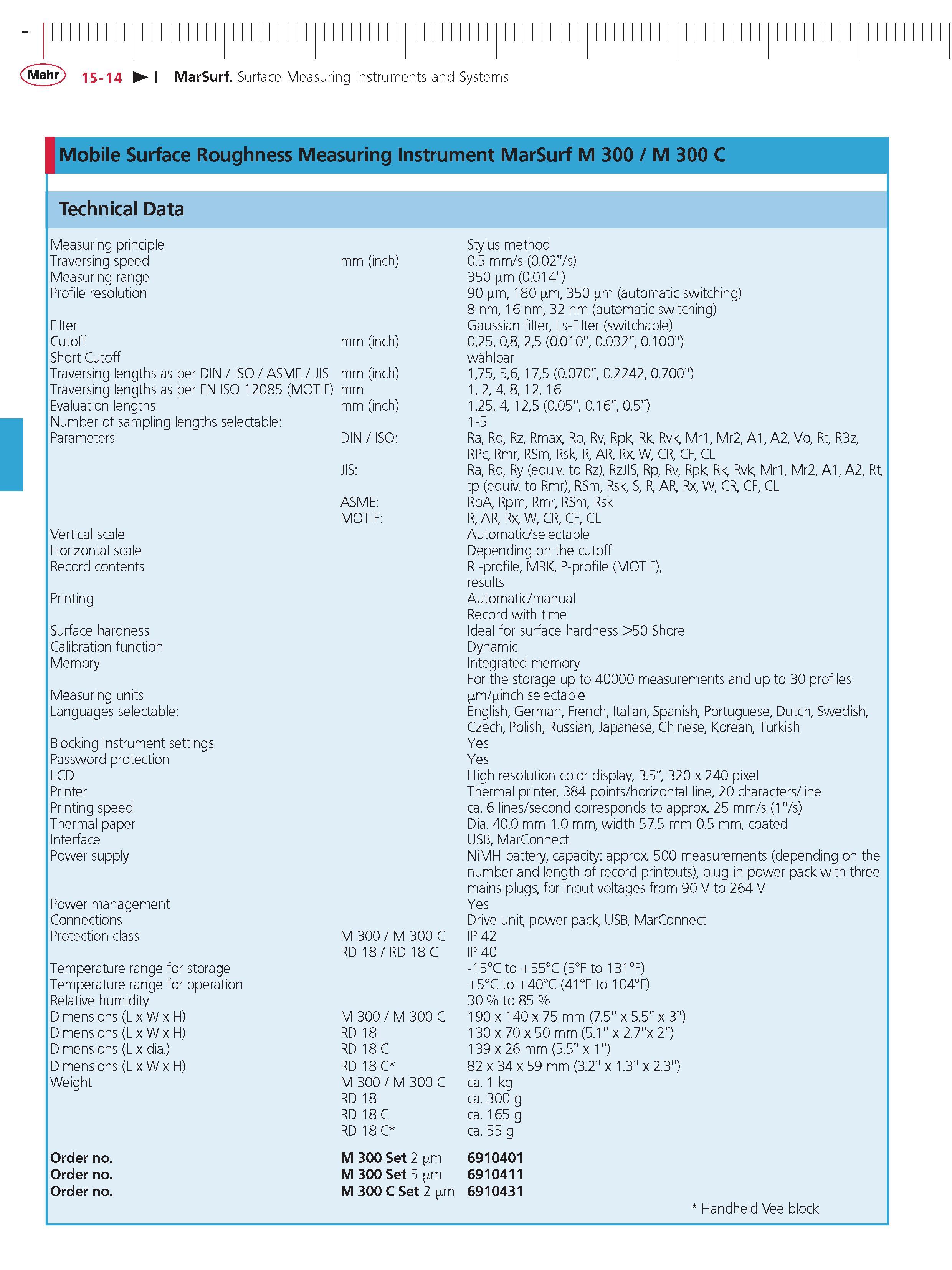

Mahr 15-14 MarSurf Surface Measuring Instruments and Systems Mobile Surface Roughness Measuring instrument MarSurf M 300 M 300 C technical Data Measuring principle Stylus method Traversing speed mm (inch) 0.5 mm s (0.02" s) Measuring range 350 m (0.014") profile resolution 90 m 180 m 350 m (automatic switching) 8 nm 16 nm 32 nm (automatic switching) Filter Gaussian filter Ls-Filter (switchable) Cutoff mm (inch) 025 08 25 (0.010" 0.032" 0.100") Short Cutoff wahlbar Traversing lengths as per DIN ISO ASME JIS mm (inch) 175 56 175 (0.070" 0.2242 0.700") Traversing lengths as per EN ISO 12085 (MOTIF) mm 1 2 4 8 12 16 Evaluation lengths mm (inch) 125 4 125 (0.05" 0.16" 0.5") Number of sampling lengths selectable 1-5 parameters DIN ISO Ra Rq Rz Rmax Rp Rv Rpk Rk Rvk Mr1 Mr2 A1 A2 Vo Rt R3z RPc Rmr RSm Rsk R AR Rx W CR CF CL JIS Ra Rq Ry (equiv. to Rz) RzJIS Rp Rv Rpk Rk Rvk Mr1 Mr2 A1 A2 Rt tp (equiv. to Rmr) RSm Rsk S R AR Rx W CR CF CL ASME RpA Rpm Rmr RSm Rsk MOTIF R AR Rx W CR CF CL Vertical scale Automatic selectable Horizontal scale Depending on the cutoff Record contents R -profile MRK P-profile (MOTIF) results printing Automatic manual Record with time Surface hardness Ideal for surface hardness 50 Shore Calibration function Dynamic Memory Integrated memory For the storage up to 40000 measurements and up to 30 profiles Measuring units m inch selectable Languages selectable English German French Italian Spanish Portuguese Dutch Swedish Czech Polish Russian Japanese Chinese Korean Turkish Blocking instrument settings Yes password protection Yes LCD High resolution color display 3.5" 320 x 240 pixel printer Thermal printer 384 points horizontal line 20 characters line printing speed ca. 6 lines second corresponds to approx. 25 mm s (1" s) Thermal paper Dia. 40.0 mm-1.0 mm width 57.5 mm-0.5 mm coated Interface USB MarConnect power supply NiMH battery capacity approx. 500 measurements (depending on the number and length of record printouts) plug-in power pack with three mains plugs for input voltages from 90 V to 264 V power management Yes Connections Drive unit power pack USB MarConnect protection class M 300 M 300 C IP 42 RD 18 RD 18 C IP 40 Temperature range for storage -15C to +55C (5F to 131F) Temperature range for operation +5C to +40C (41F to 104F) Relative humidity 30 % to 85 % Dimensions (L x W x H) M 300 M 300 C 190 x 140 x 75 mm (7.5" x 5.5" x 3") Dimensions (L x W x H) RD 18 130 x 70 x 50 mm (5.1" x 2.7"x 2") Dimensions (L x dia.) RD 18 C 139 x 26 mm (5.5" x 1") Dimensions (L x W x H) RD 18 C 82 x 34 x 59 mm (3.2" x 1.3" x 2.3") Weight M 300 M 300 C ca. 1 kg RD 18 ca. 300 g RD 18 C ca. 165 g RD 18 C ca. 55 g order no. M 300 Set 2 m 6910401 order no. M 300 Set 5 m 6910411 order no. M 300 C Set 2 m 6910431 Handheld Vee block
