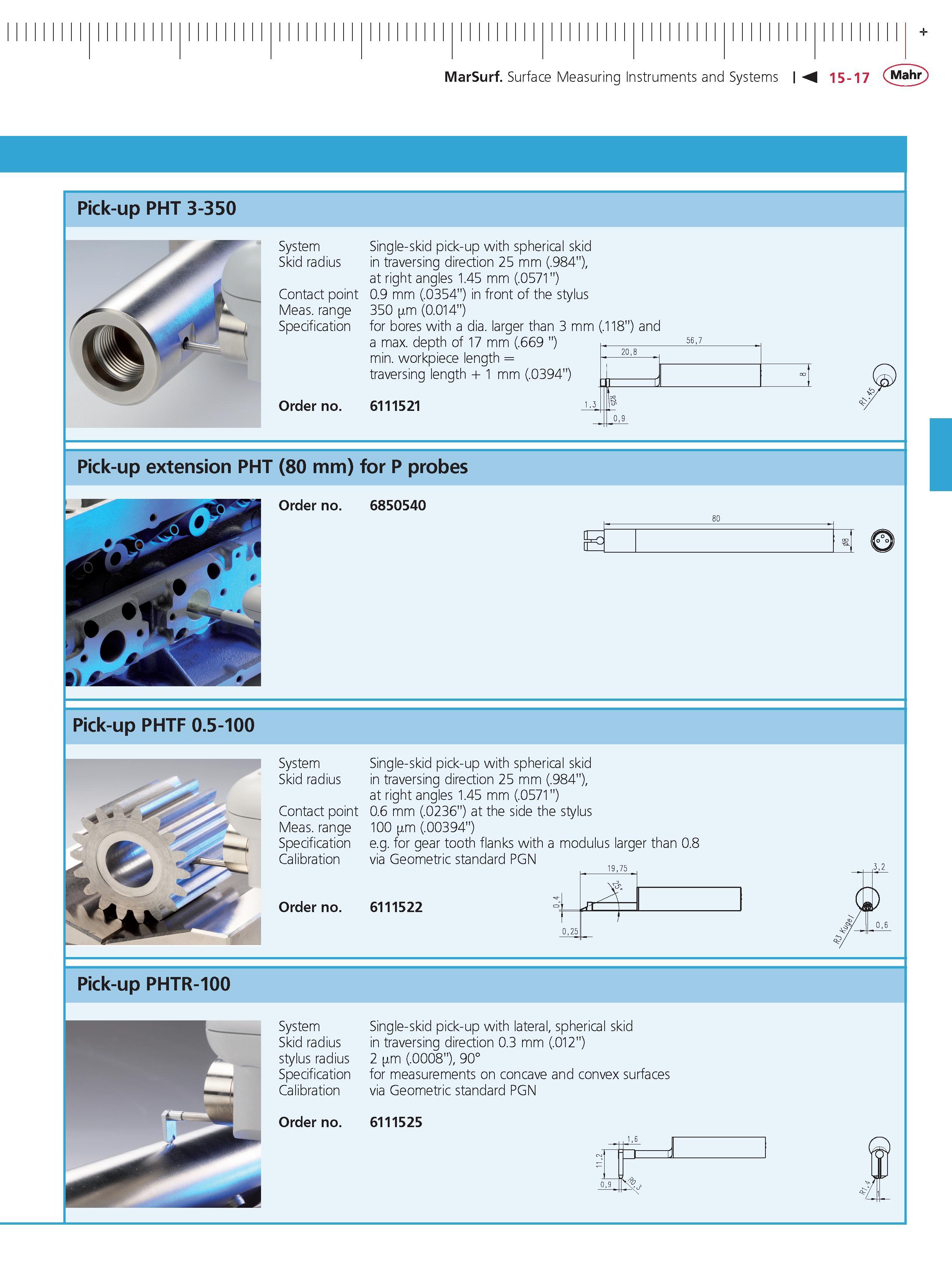

MarSurf Surface Measuring Instruments and Systems 15-17 Mahr Pick-up PHT 3-350 System Single-skid pick-up with spherical skid Skid radius in traversing direction 25 mm (.984") at right angles 1.45 mm (.0571") Contact point 0.9 mm (.0354") in front of the stylus Meas. range 350 m (0.014") Specification for bores with a dia. larger than 3 mm (.118") and a max. depth of 17 mm (.669 ") min. workpiece length traversing length + 1 mm (.0394" Order no. 6111521 Pick-up extension PHT (80 mm) for P probes order no. 6850540 Pick-up PHTF 0.5-100 System Single-skid pick-up with spherical skid Skid radius in traversing direction 25 mm (.984") at right angles 1.45 mm (.0571") Contact point 0.6 mm (.0236") at the side the stylus Meas. range 100 m (.00394") Specification e.g. for gear tooth flanks with a modulus larger than 0.8 Calibration via Geometric standard PGN 1Q 7S 1 order no. 6111522 Pick-up PHTR-100 System Single-skid pick-up with lateral spherical skid Skid radius in traversing direction 0.3 mm (.012") stylus radius 2 m (.0008") 90 Specification for measurements on concave and convex surfaces Calibration via Geometric standard pGN order no. 6111525 +
