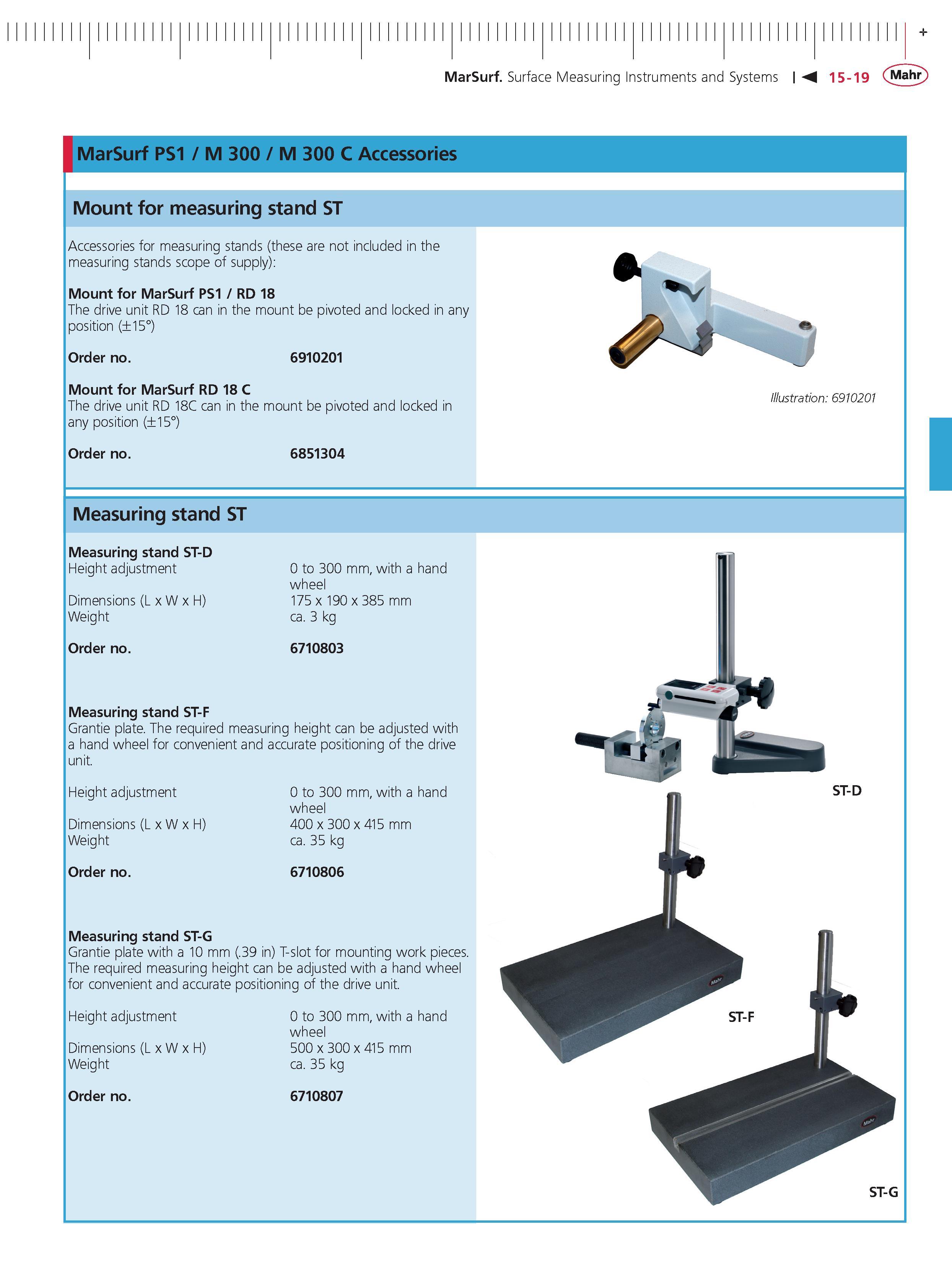

MarSurf Surface Measuring Instruments and Systems 15-19 Mahr MarSurf PS1 M 300 M 300 C Accessories Mount for measuring stand ST Accessories for measuring stands (these are not included in the measuring stands scope of supply) Mount for MarSurf PS1 RD 18 The drive unit RD 18 can in the mount be pivoted and locked in any position (15) order no. 6910201 Mount for MarSurf RD 18 C The drive unit RD 18C can in the mount be pivoted and locked in any position (15) order no. Measuring stand ST Measuring stand ST-D Height adjustment Dimensions (L x W x H) Weight order no. 6851304 0 to 300 mm with a hand wheel 175 x 190 x 385 mm ca. 3 kg 6710803 Measuring stand ST-F Grantie plate. The required measuring height can be adjusted with a hand wheel for convenient and accurate positioning of the drive unit. Height adjustment Dimensions (L x W x H) Weight order no. 0 to 300 mm with a hand wheel 400 x 300 x 415 mm ca. 35 kg 6710806 Measuring stand ST-G Grantie plate with a 10 mm (.39 in) T-slot for mounting work pieces. The required measuring height can be adjusted with a hand wheel for convenient and accurate positioning of the drive unit. Height adjustment Dimensions (L x W x H) Weight order no. 0 to 300 mm with a hand wheel 500 x 300 x 415 mm ca. 35 kg 6710807
