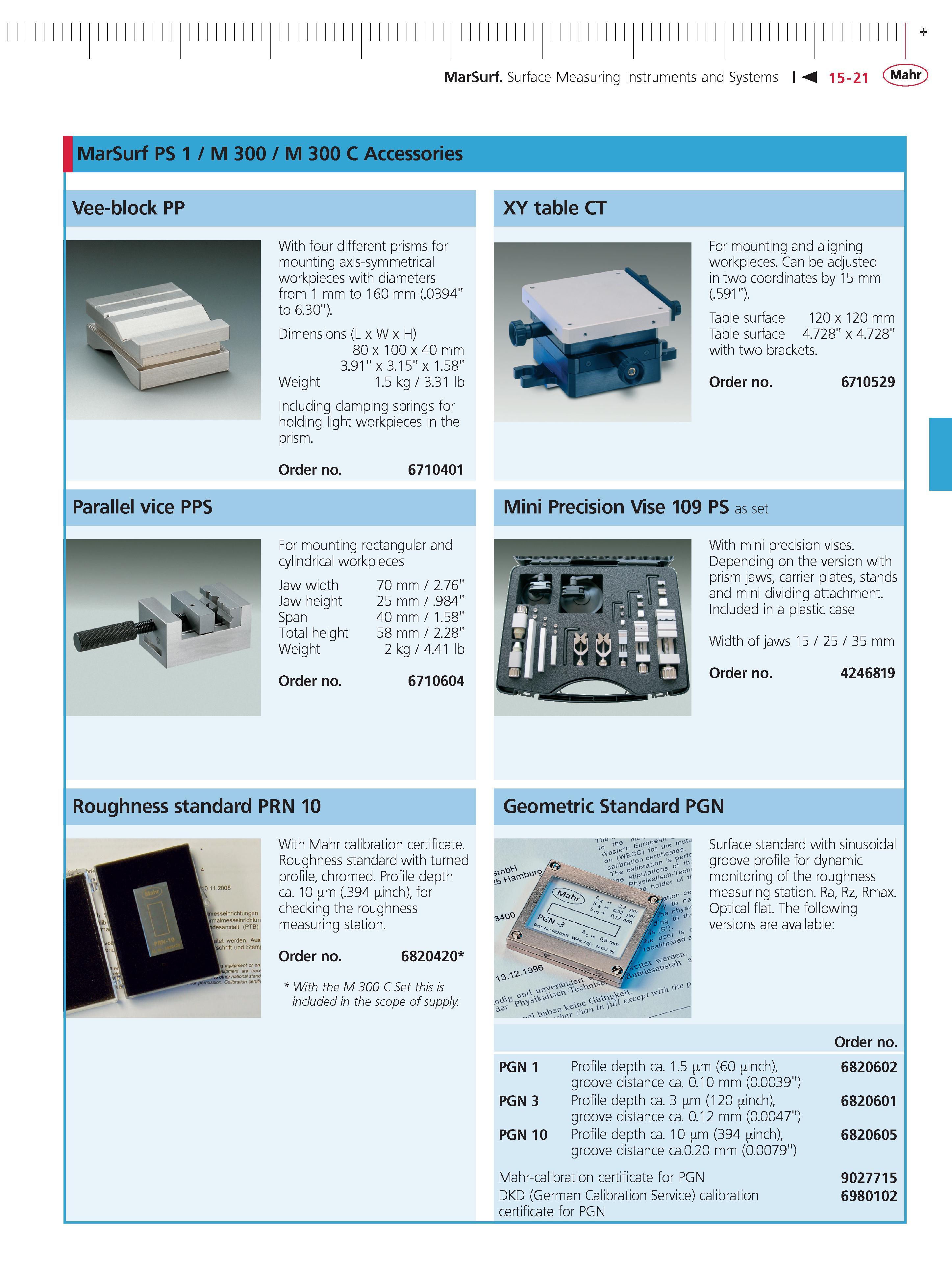

MarSurf Surface Measuring Instruments and Systems 15-21 Mahr MarSurf PS 1 M 300 M 300 C Accessories With four different prisms for mounting axis-symmetrical workpieces with diameters from 1 mm to 160 mm (.0394" to 6.30"). Dimensions (L x W x H) 80 x 100 x 40 mm 3.91" x 3.15" x 1.58" Weight 1.5 kg 3.31 lb Including clamping springs for holding light workpieces in the prism. Order no. 6710401 XY table CT For mounting and aligning workpieces. Can be adjusted in two coordinates by 15 mm (.591"). Table surface 120 x 120 mm Table surface 4.728" x 4.728" with two brackets. order no. 6710529 Parallel vice PPS Mini Precision Vise 109 PS as set For mounting rectangular and cylindrical workpieces Jaw width Jaw height Span Total height Weight order no. 70 mm 2.76" 25 mm .984" 40 mm 1.58" 58 mm 2.28" 2 kg 4.41 lb 6710604 With mini precision vises. Depending on the version with prism jaws carrier plates stands and mini dividing attachment. Included in a plastic case Width of jaws 15 25 35 mm order no. 4246819 Roughness standard PRN 10 Geometric Standard PGN With Mahr calibration certificate. Roughness standard with turned profile chromed. profile depth ca. 10 xm (.394 xinch) for checking the roughness measuring station. order no. 6820420 With the M 300 C Set this is included in the scope of supply. Surface standard with sinusoidal groove profile for dynamic monitoring of the roughness measuring station. Ra Rz Rmax. Optical flat. The following versions are available PGN 1 Profile depth ca. 1.5 xm (60 xinch) groove distance ca. 0.10 mm (0.0039" PGN 3 Profile depth ca. 3 xm (120 xinch) groove distance ca. 0.12 mm (0.0047" PGN 10 Profile depth ca. 10 xm (394 xinch) groove distance ca.0.20 mm (0.0079") Mahr-calibration certificate for PGN DKD (German Calibration Service) calibration certificate for PGN order no. 6820602 6820601 6820605 9027715 6980102
