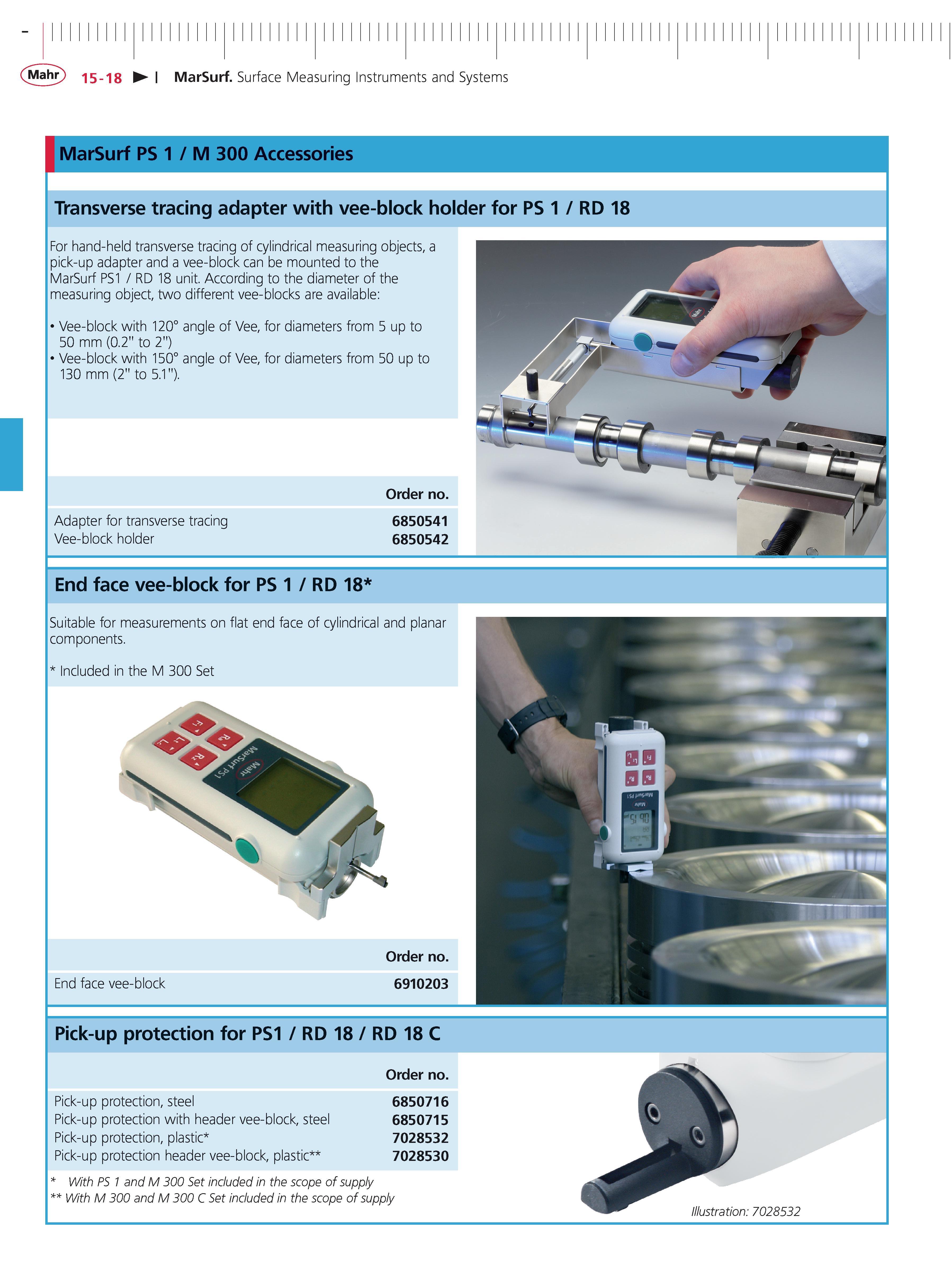

Mahr 15-18 MarSurf Surface Measuring Instruments and Systems Transverse tracing adapter with vee-block holder for PS 1 RD 18 For hand-held transverse tracing of cylindrical measuring objects a pick-up adapter and a vee-block can be mounted to the MarSurf pS1 RD 18 unit. According to the diameter of the measuring object two different vee-blocks are available Vee-block with 120 angle of Vee for diameters from 5 up to 50 mm (0.2" to 2 Vee-block with 150 angle of Vee for diameters from 50 up to 130 mm (2" to 5.1"). Adapter for transverse tracing Vee-block holder
