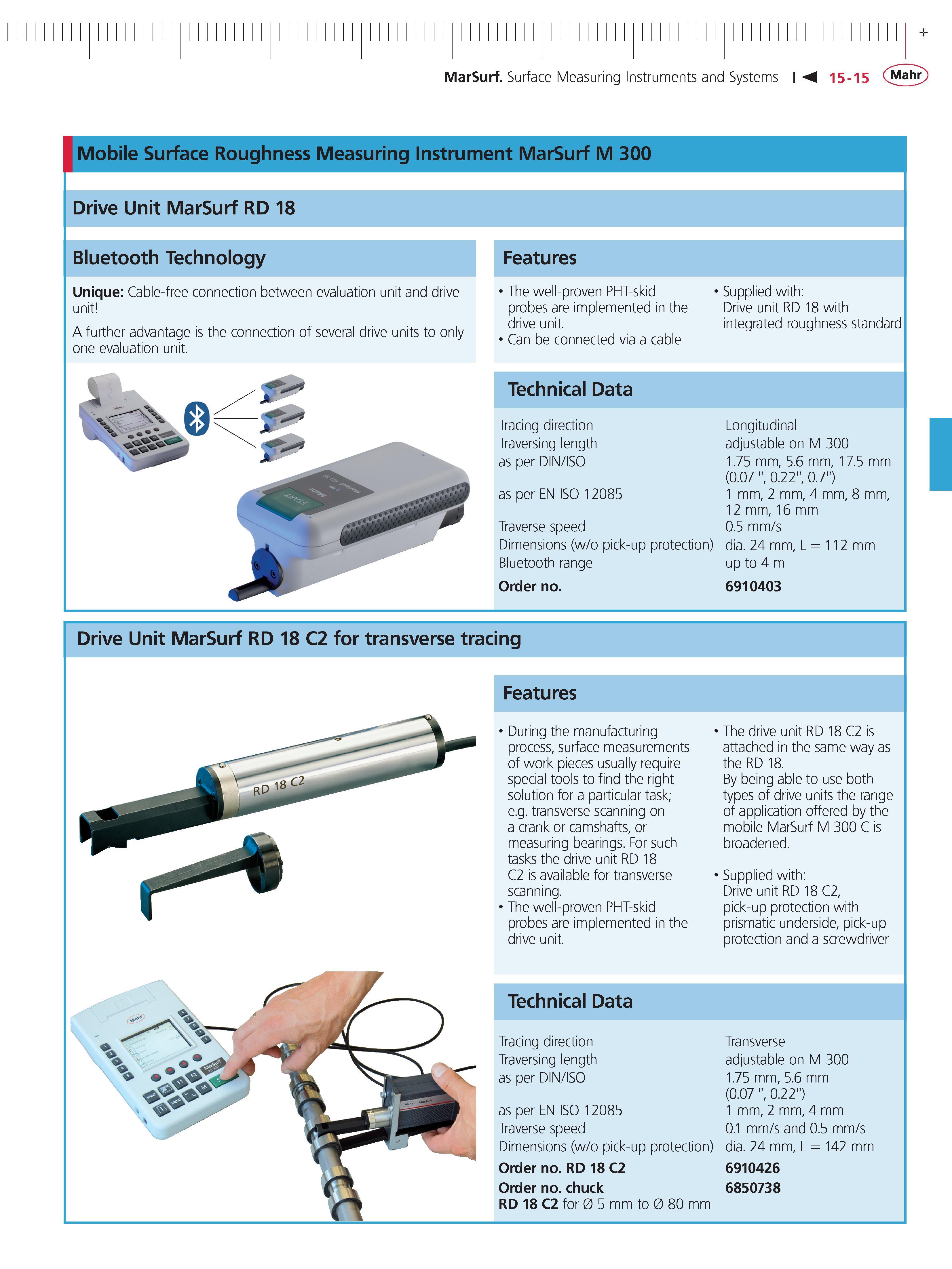

MarSurf Surface Measuring Instruments and Systems M 15-15 (jy hr) Mobile Surface Roughness Measuring Instrument MarSurf M 300 Drive Unit MarSurf RD 18 Features The well-proven PHT-skid probes are implemented in the drive unit. Can be connected via a cable Supplied with Drive unit RD 18 with integrated roughness standard Technical data Tracing direction Traversing length as per DIN ISO as per EN ISO 12085 Traverse speed Dimensions (w o pick-up protection) Bluetooth range order no. Longitudinal adjustable on M 300 1.75 mm 5.6 mm 17.5 mm (0.07 0.22 0.7) 1 mm 2 mm 4 mm 8 mm 12 mm 16 mm 0.5 mm s dia. 24 mm L 112 mm up to 4 m 6910403 drive Unit MarSurf RD 18 C2 for transverse tracing Features During the manufacturing process surface measurements of work pieces usually require special tools to find the right solution for a particular task; e.g. transverse scanning on a crank or camshafts or measuring bearings. For such tasks the drive unit RD 18 C2 is available for transverse scanning. The well-proven PHT-skid probes are implemented in the drive unit. technical data Tracing direction Traversing length as per DIN ISO as per EN ISO 12085 Traverse speed Dimensions (w o pick-up protection) order no. RD 18 C2 order no. chuck RD 18 C2 for 0 5 mm to 0 80 mm The drive unit RD 18 C2 is attached in the same way as the RD 18. By being able to use both types of drive units the range of application offered by the mobile MarSurf M 300 C is broadened. Supplied with Drive unit RD 18 C2 pick-up protection with prismatic underside pick-up protection and a screwdriver Transverse adjustable on M 300 1.75 mm 5.6 mm (0.07 0.22) 1 mm 2 mm 4 mm 0.1 mm s and 0.5 mm s dia. 24 mm L 142 mm 6910426 6850738
