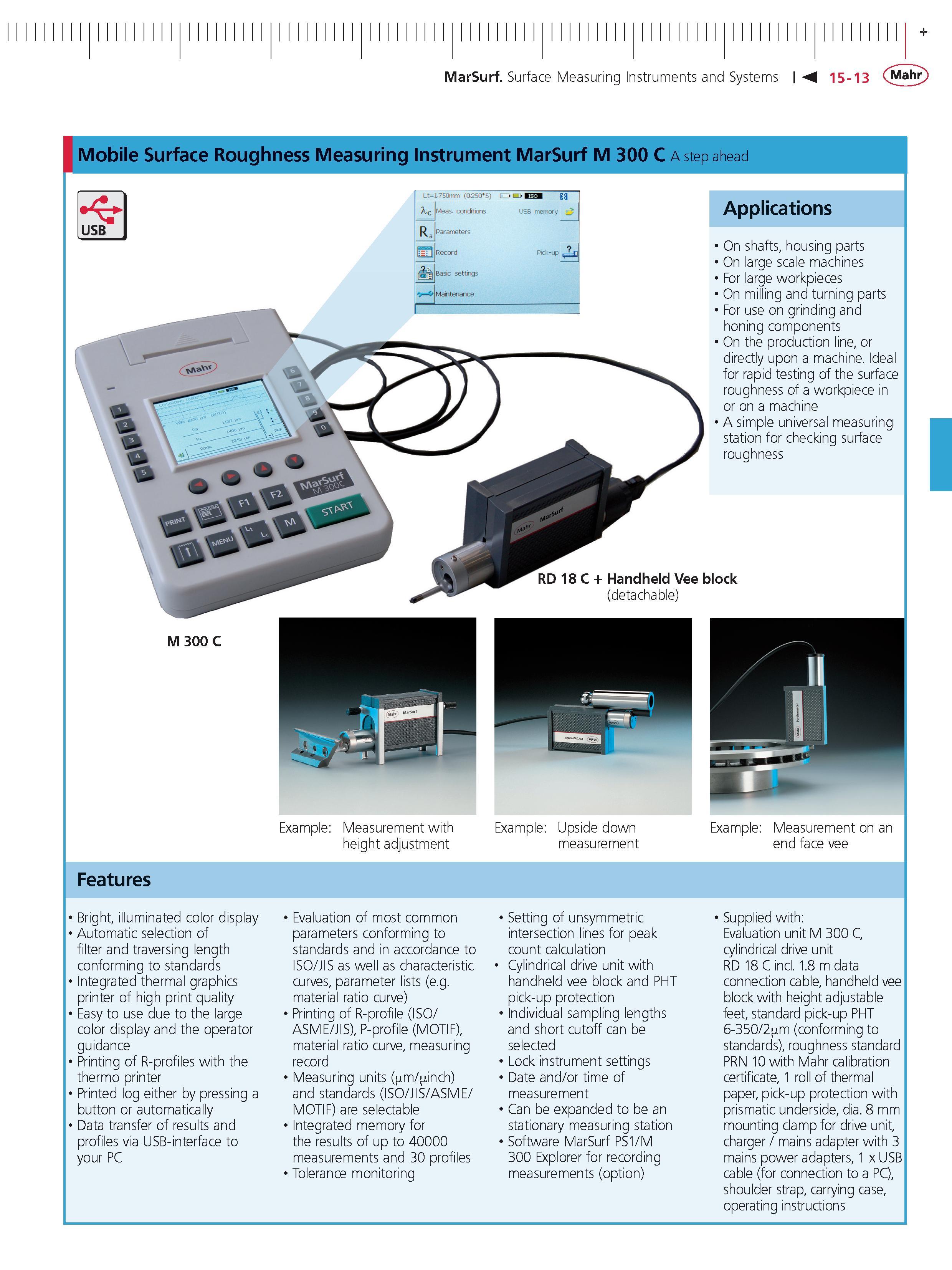

MarSurf Surface Measuring Instruments and Systems 15-13 Mahr Mobile Surface Roughness Measuring instrument MarSurf M 300 C a step ahead USB Applications On shafts housing parts On large scale machines For large workpieces On milling and turning parts For use on grinding and honing components On the production line or directly upon a machine. Ideal for rapid testing of the surface roughness of a workpiece in or on a machine A simple universal measuring station for checking surface roughness Features Bright illuminated color display Automatic selection of filter and traversing length conforming to standards Integrated thermal graphics printer of high print quality Easy to use due to the large color display and the operator guidance Printing of R-profiles with the thermo printer Printed log either by pressing a button or automatically Data transfer of results and profiles via USB-interface to your pC Example Measurement with height adjustment Evaluation of most common parameters conforming to standards and in accordance to ISO JIS as well as characteristic curves parameter lists (e.g. material ratio curve) Printing of R-profile (ISO ASME JIS) p-profile (MOTIF) material ratio curve measuring record Measuring units ( m inch) and standards (ISO JIS ASME MOTIF) are selectable Integrated memory for the results of up to 40000 measurements and 30 profiles Tolerance monitoring Example Upside down measurement Setting of unsymmetric intersection lines for peak count calculation Cylindrical drive unit with handheld vee block and PHT pick-up protection Individual sampling lengths and short cutoff can be selected Lock instrument settings Date and or time of measurement Can be expanded to be an stationary measuring station Software MarSurf PS1 M 300 Explorer for recording measurements (option) Example Measurement on an end face vee Supplied with Evaluation unit M 300 C cylindrical drive unit RD 18 C incl. 18 m data connection cable handheld vee block with height adjustable feet standard pick-up PHT 6-350 2 m (conforming to standards) roughness standard PRN 10 with Mahr calibration certificate 1 roll of thermal paper pick-up protection with prismatic underside dia. 8 mm mounting clamp for drive unit charger mains adapter with 3 mains power adapters 1 x USB cable (for connection to a pC) shoulder strap carrying case operating instructions +
