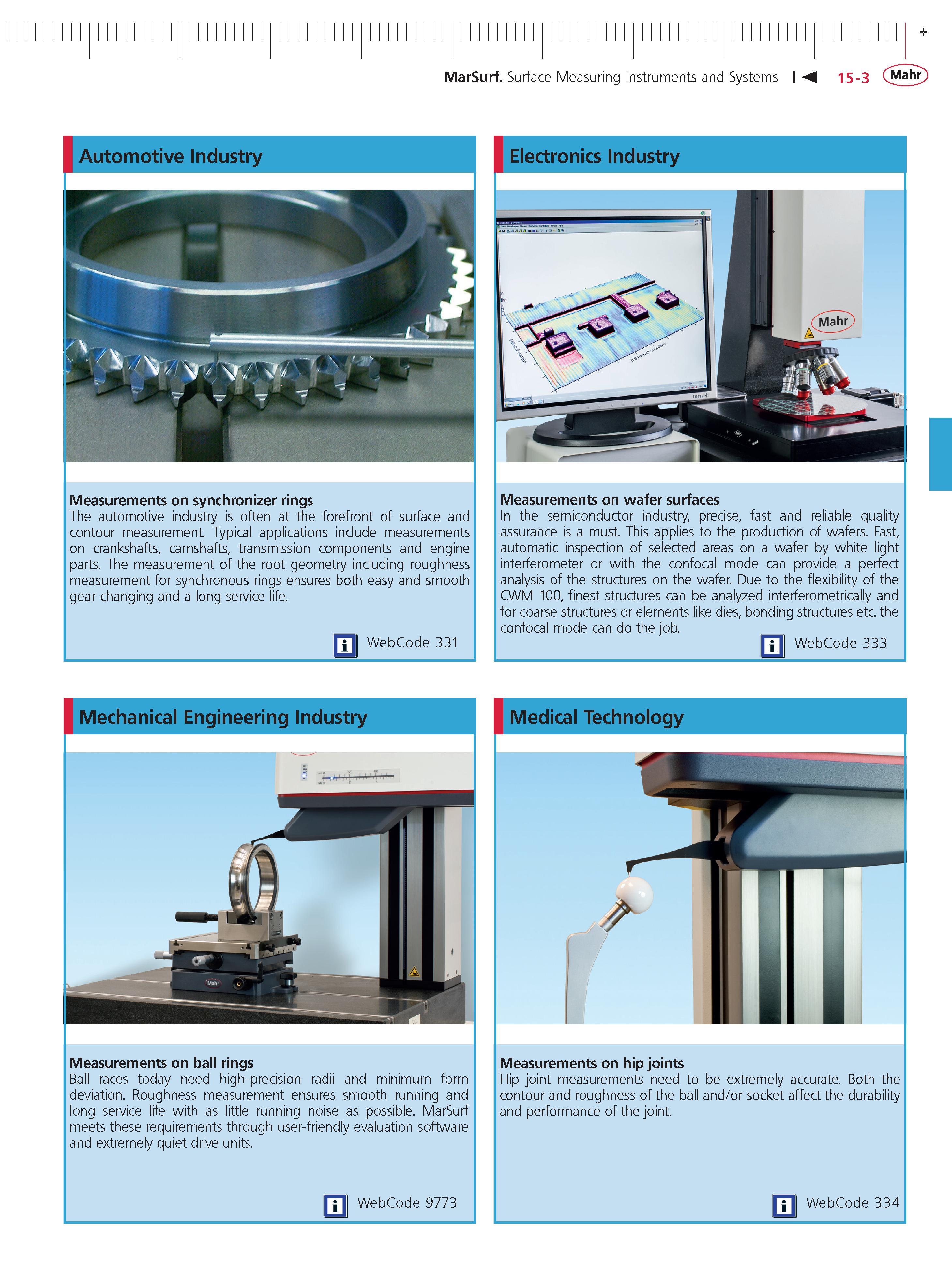

MarSurf Surface Measuring Instruments and Systems 15-3 Mahr Automotive Industry Measurements on synchronizer rings The automotive industry is often at the forefront of surface and contour measurement. Typical applications include measurements on crankshafts camshafts transmission components and engine parts. The measurement of the root geometry including roughness measurement for synchronous rings ensures both easy and smooth gear changing and a long service life. WebCode 331 Electronics industry Measurements on wafer surfaces In the semiconductor industry precise fast and reliable quality assurance is a must. This applies to the production of wafers. Fast automatic inspection of selected areas on a wafer by white light interferometer or with the confocal mode can provide a perfect analysis of the structures on the wafer. Due to the flexibility of the CWM 100 finest structures can be analyzed interferometrically and for coarse structures or elements like dies bonding structures etc. the confocal mode can do the job. m WebCode 333 Mechanical engineering industry Measurements on ball rings Ball races today need high-precision radii and minimum form deviation. Roughness measurement ensures smooth running and long service life with as little running noise as possible. MarSurf meets these requirements through user-friendly evaluation software and extremely quiet drive units. WebCode 9773 Medical technology Measurements on hip joints Hip joint measurements need to be extremely accurate. Both the contour and roughness of the ball and or socket affect the durability and performance of the joint.
