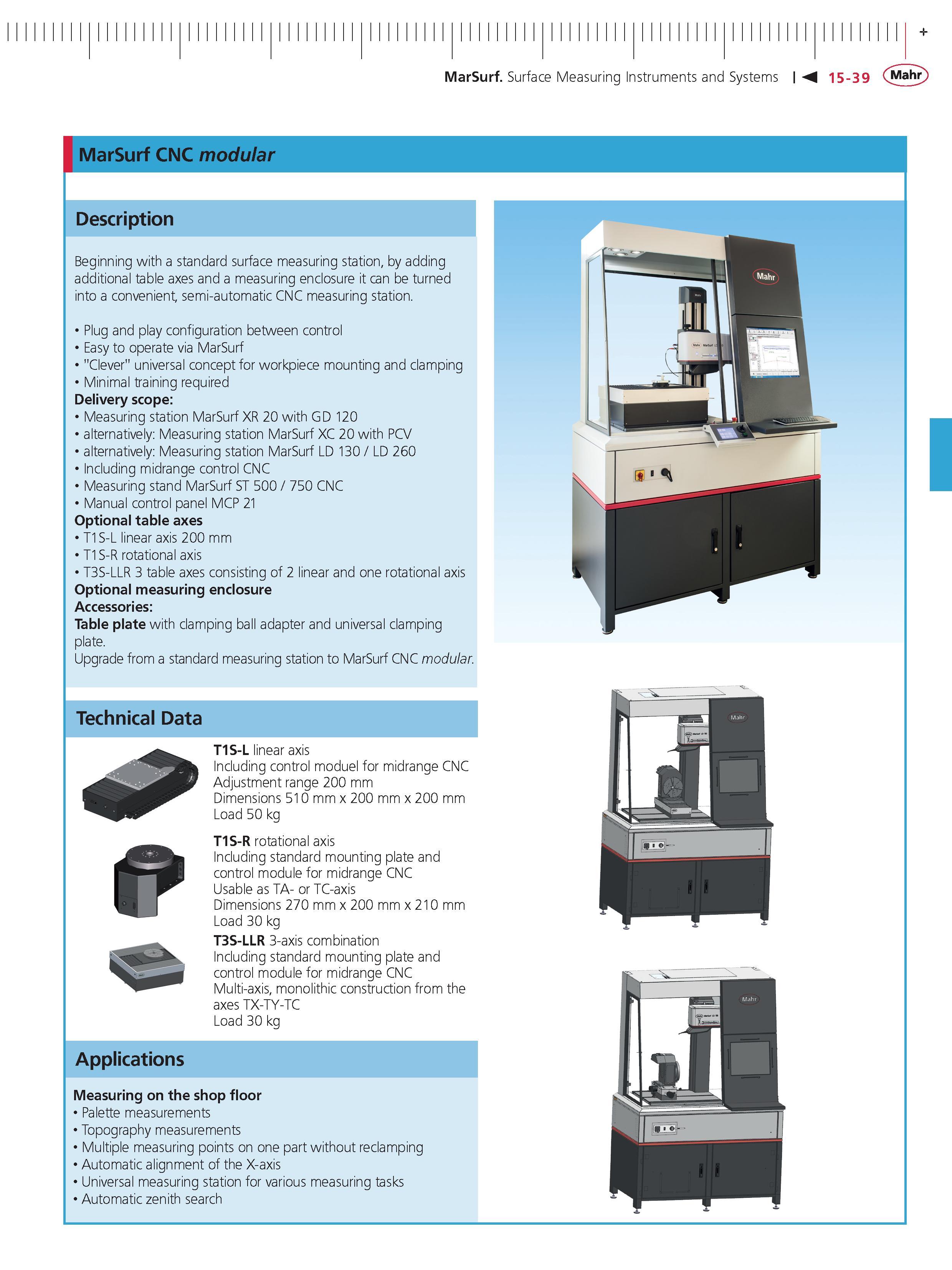

MarSurf Surface Measuring Instruments and Systems 15-39 Mahr MarSurf CNC modular Description Beginning with a standard surface measuring station by adding additional table axes and a measuring enclosure it can be turned into a convenient semi-automatic CNC measuring station. Plug and play configuration between control Easy to operate via MarSurf "Clever" universal concept for workpiece mounting and clamping Minimal training required Delivery scope Measuring station MarSurf XR 20 with GD 120 alternatively Measuring station MarSurf XC 20 with PCV alternatively Measuring station MarSurf LD 130 LD 260 Including midrange control CNC Measuring stand MarSurf ST 500 750 CNC Manual control panel MCP 21 Optional table axes T1S-L linear axis 200 mm T1S-R rotational axis T3S-LLR 3 table axes consisting of 2 linear and one rotational axis Optional measuring enclosure Accessories Table plate with clamping ball adapter and universal clamping plate. Upgrade from a standard measuring station to MarSurf CNC modular Technical Data T1S-L linear axis Including control moduel for midrange CNC Adjustment range 200 mm Dimensions 510 mm x 200 mm x 200 mm Load 50 kg T1S-R rotational axis Including standard mounting plate and control module for midrange CNC Usable as TA- or TC-axis Dimensions 270 mm x 200 mm x 210 mm Load 30 kg T3S-LLR 3-axis combination Including standard mounting plate and control module for midrange CNC Multi-axis monolithic construction from the axes TX-TY-TC Load 30 kg Applications Measuring on the shop floor Palette measurements Topography measurements Multiple measuring points on one part without reclamping Automatic alignment of the X-axis Universal measuring station for various measuring tasks Automatic zenith search
