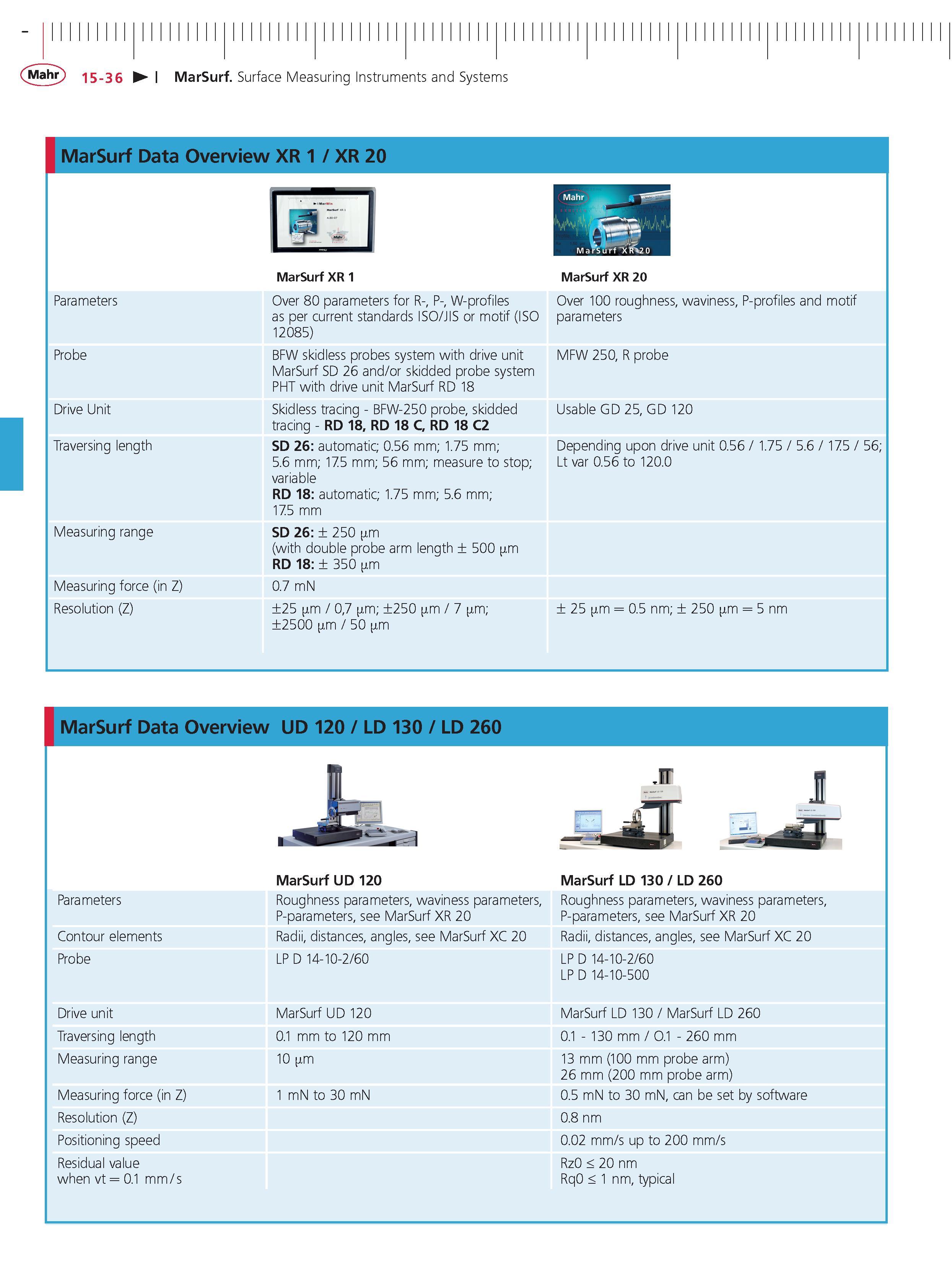

Mahr 15-36 MarSurf Surface Measuring Instruments and Systems MarSurf Data Overview XR 1 XR 20 Parameters Probe Drive Unit Traversing length Measuring range Measuring force (in Z) Resolution (Z) MarSurf XR 1 Over 80 parameters for R- P- W-profiles as per current standards ISO JIS or motif (ISO 12085) BFW skidless probes system with drive unit MarSurf SD 26 and or skidded probe system PHT with drive unit MarSurf RD 18 Skidless tracing - BFW-250 probe skidded tracing - RD 18 RD 18 C RD 18 C2 SD 26 automatic; 0.56 mm; 1.75 mm; 5.6 mm; 175 mm; 56 mm; measure to stop; variable RD 18 automatic; 1.75 mm; 5.6 mm; 175 mm SD 26 250 m (with double probe arm length 500 m RD 18 350 m 0.7 mN 25 m 07 m; 250 m 7 m; 2500 m 50 m MarSurf XR 20 Over 100 roughness waviness P-profiles and motif parameters MFW 250 R probe Usable GD 25 GD 120 Depending upon drive unit 0.56 1.75 5.6 175 56; Lt var 0.56 to 120.0 25 m 0.5 nm; 250 m 5 nm MarSurf Data Overview UD 120 LD 130 LD 260 Parameters Contour elements Probe MarSurf UD 120 Roughness parameters waviness parameters P-parameters see MarSurf XR 20 Radii distances angles see MarSurf XC 20 LP D 14-10-2 60 MarSurf LD 130 LD 260 Roughness parameters waviness parameters P-parameters see MarSurf XR 20 Radii distances angles see MarSurf XC 20 LP D 14-10-2 60 LP D 14-10-500 Drive unit Traversing length Measuring range Measuring force (in Z) Resolution (Z) Positioning speed Residual value when vt 0.1 mm s MarSurf UD 120 0.1 mm to 120 mm 10 m 1 mN to 30 mN MarSurf LD 130 MarSurf LD 260 0.1 - 130 mm O.1 - 260 mm 13 mm (100 mm probe arm) 26 mm (200 mm probe arm) 0.5 mN to 30 mN can be set by software 0.8 nm 0.02 mm s up to 200 mm s Rz0 20 nm Rq0 1 nm typical
