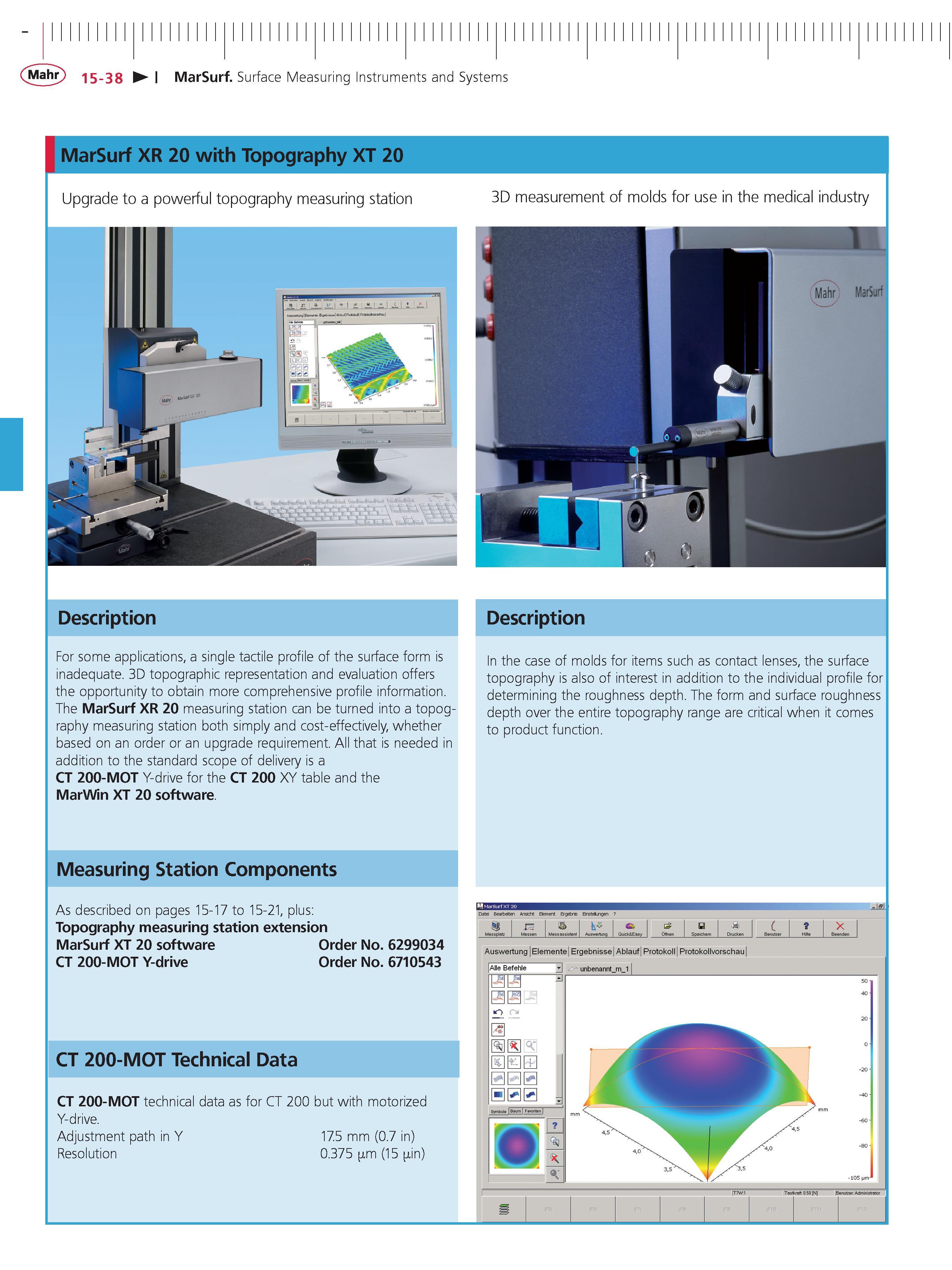

Mahr 15.38 MarSurf Surface Measuring Instruments and Systems MarSurf XR 20 with Topography XT 20 Upgrade to a powerful topography measuring station 3D measurement of molds for use in the medical industry Description For some applications a single tactile profile of the surface form is inadequate. 3D topographic representation and evaluation offers the opportunity to obtain more comprehensive profile information. The MarSurf XR 20 measuring station can be turned into a topography measuring station both simply and cost-effectively whether based on an order or an upgrade requirement. All that is needed in addition to the standard scope of delivery is a CT 200-MOT Y-drive for the CT 200 XY table and the MarWin XT 20 software. Measuring Station Components As described on pages 15-17 to 15-21 plus Topography measuring station extension Description In the case of molds for items such as contact lenses the surface topography is also of interest in addition to the individual profile for determining the roughness depth. The form and surface roughness depth over the entire topography range are critical when it comes to product function. MarSurf XT 20 software CT 200-MOT Y-drive Order No. 6299034 Order No. 6710543 CT 200-MOT Technical Data CT 200-MOT technical data as for CT 200 but with motorized Y-drive. Adjustment path in Y 17.5 mm (0.7 in) Resolution 0.375 m (15 in)
